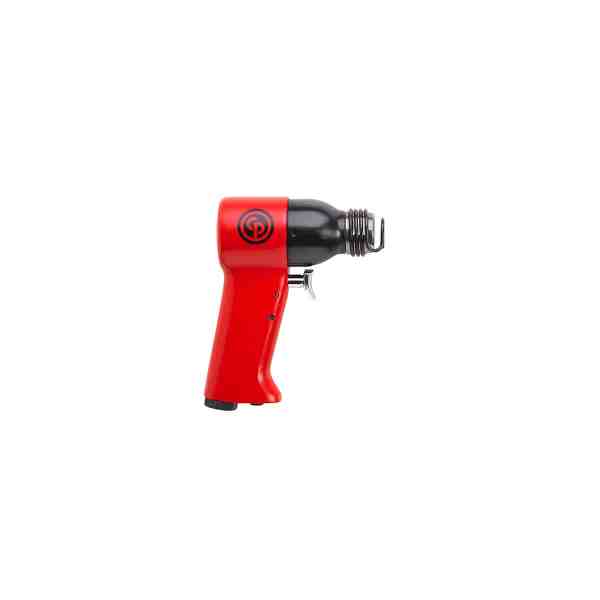

Chicago Pneumatic CP4281 RIVET HAMMER
Chicago Pneumatic CP4281 RIVET HAMMER

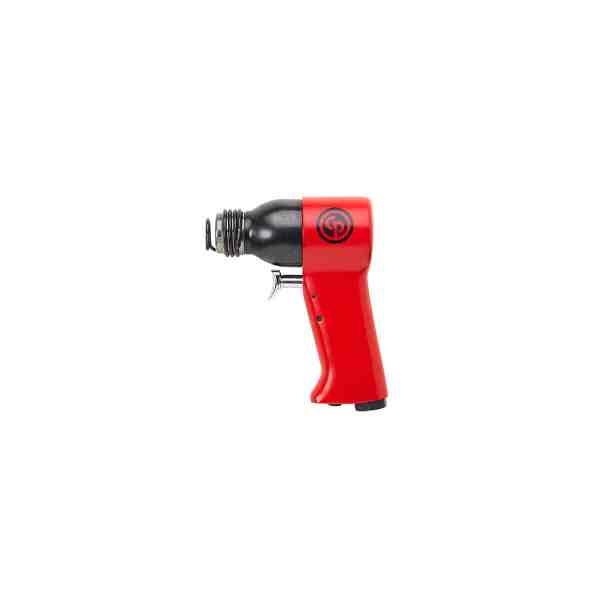

Chicago Pneumatic CP4281 RIVET HAMMER - Image 2

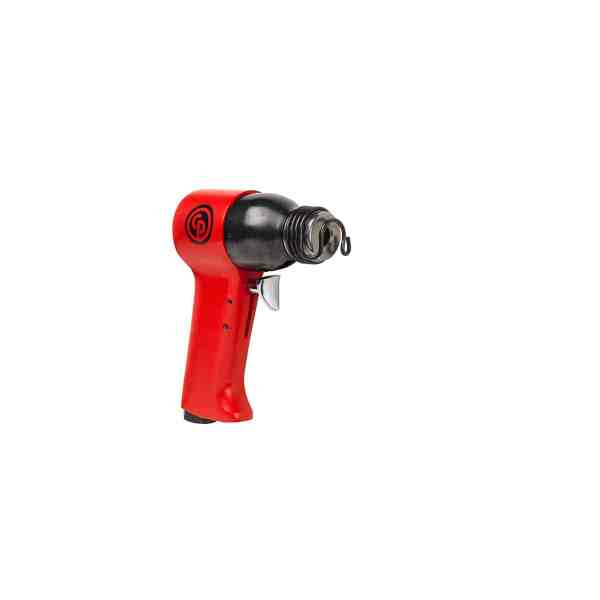

Chicago Pneumatic CP4281 RIVET HAMMER - Image 3

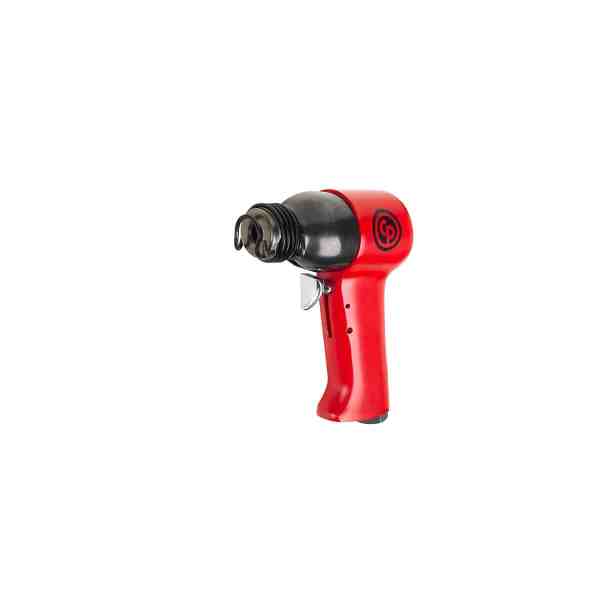

Chicago Pneumatic CP4281 RIVET HAMMER - Image 4

Chicago Pneumatic CP4281 RIVET HAMMER

Original price was: $749.06.Current price is: $516.85.

CP4281 – The Aerospace riveting solution from Chicago Pneumatic

SKU: 6151740590 Categories: , , Brand:

Description

CP4281

CP4281 – The Aerospace riveting solution from Chicago Pneumatic

Benefits

  • Efficient and powerful
  • Lightweight and comfortable to hold
  • Excellent control with teasing trigger

    • Features

  • Designed for rivets up to 1/8″
  • Delivered with chisel retainer included in the box
  • To be used with chisel kit 6153609390

    • Model CP4281
    Part number 6151740590
    Length 115 mm 4.49″
    Length 4.49″ 115 mm
    Net weight 1.06 kg 2.34 lb
    Net weight 2.34 lb 1.06 kg
    Height 142.8 mm 5.625″
    Height 5.625″ 142.8 mm
    Width 50.8 mm 2″
    Width 2″ 50.8 mm
    Average air consumption 4 cfm
    Average air consumption 1.89 l/s 4 cfm
    Air inlet thread size 1/4 “
    Min. hose size 9.5 mm 3/8″
    Min. hose size 3/8″ 9.5 mm
    Sound pressure 96 db(A)
    Sound Power 107 db(A)
    European Sound standard EN ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO EN ISO 28927-10
    Vibration 11.4 m/s²
    Vibration uncertainty (K) 2.5 m/s²
    Power (Joules) 2.61 joule
    Blows per minute 2850
    Bore 0.56″ 14.3 mm
    Bore 14.3 mm 0.56″
    Stroke 1.38″ 35 mm
    Stroke 35 mm 1.38″
    Chisel rivet set shank 0.401″ 10.2 mm
    Chisel rivet set shank 10.2 mm 0.401″
    Cold rivet capacity (steel) no no
    Cold rivet capacity (steel) no  no
    Cold rivet capacity (duralmin) 1/8″ 3.17 mm
    Cold rivet capacity (duralmin) 3.17 mm 1/8″
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-4 : 2012
    Air inlet thread type NPT
