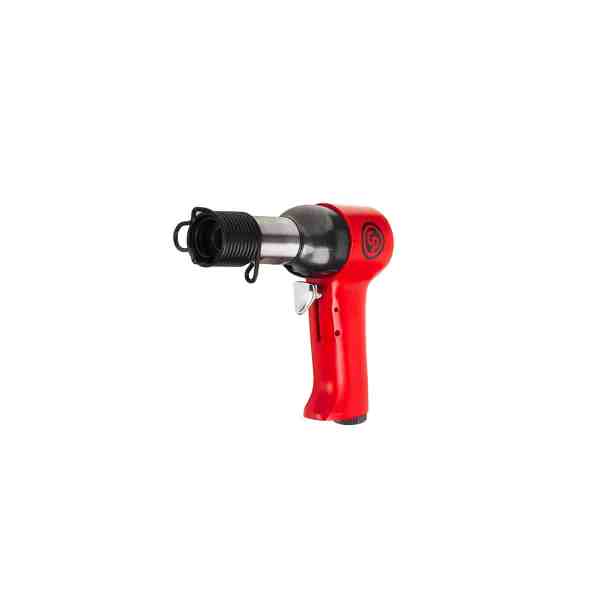

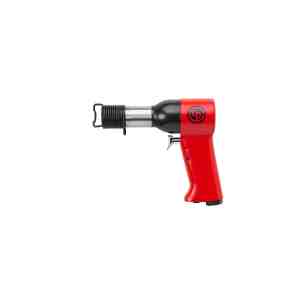

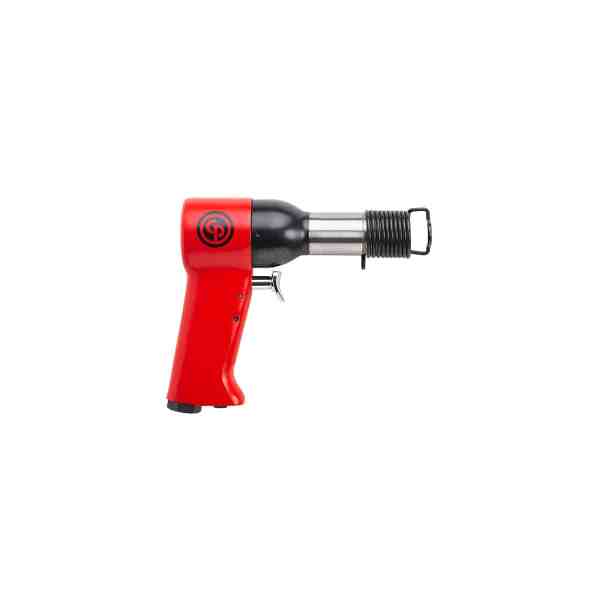

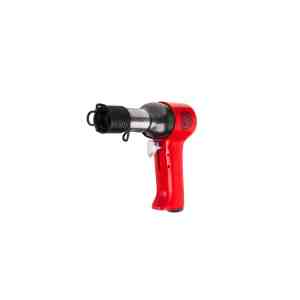

Chicago Pneumatic CP4282 RIVET HAMMER

Original price was: $795.35.Current price is: $548.79.

CP4282 – The Aerospace riveting solution from Chicago Pneumatic

Description

Name: Chicago Pneumatic CP4282 RIVET HAMMER - Pneumatics Now Equipment
SKU: 6151740600
Price: 548.79 USD
Availability: InStock

CP4282 – The Aerospace riveting solution from Chicago Pneumatic

Efficient and powerful

Lightweight and comfortable to hold

Excellent control with teasing trigger

Designed for rivets up to 1/8″

Delivered with chisel retainer included in the box

To be used with chisel kit 6153609400


Model	CP4282
Part number	6151740600
Length	170 mm	6.63″
Length	6.63″	170 mm
Net weight	1.26 kg	2.78 lb
Net weight	2.78 lb	1.26 kg
Height	142.8 mm	5.625″
Height	5.625″	142.8 mm
Width	50.8 mm	2″
Width	2″	50.8 mm
Average air consumption	4 cfm
Average air consumption	1.89 l/s	4 cfm
Air inlet thread size	1/4 “
Min. hose size	9.5 mm	3/8″
Min. hose size	3/8″	9.5 mm
Sound pressure	96 db(A)
Sound Power	107 db(A)
European Sound standard	EN ISO 15744
Sound uncertainty	3 db(A)
Vibration ISO	EN ISO 28927-10
Vibration	14 m/s²
Vibration uncertainty (K)	3 m/s²
Power (Joules)	3.37 joule
Blows per minute	2580
Bore	1/2″	12.7 mm
Bore	12.7 mm	1/2″
Stroke	2.24″	57 mm
Stroke	57 mm	2.24″
Chisel rivet set shank	0.401″	10.2 mm
Chisel rivet set shank	10.2 mm	0.401″
Cold rivet capacity (steel)	3/32″	2.38 mm
Cold rivet capacity (steel)	2.38 mm	3/32″
Cold rivet capacity (duralmin)	1/8″	3.17 mm
Cold rivet capacity (duralmin)	3.17 mm	1/8″
European Directives	2006/42/EC (17/05/2006)
European Standards	EN ISO 11148-4 : 2012
Air inlet thread type	NPT

Brand	Chicago Pneumatic Tools
Model - Series	CP4282
