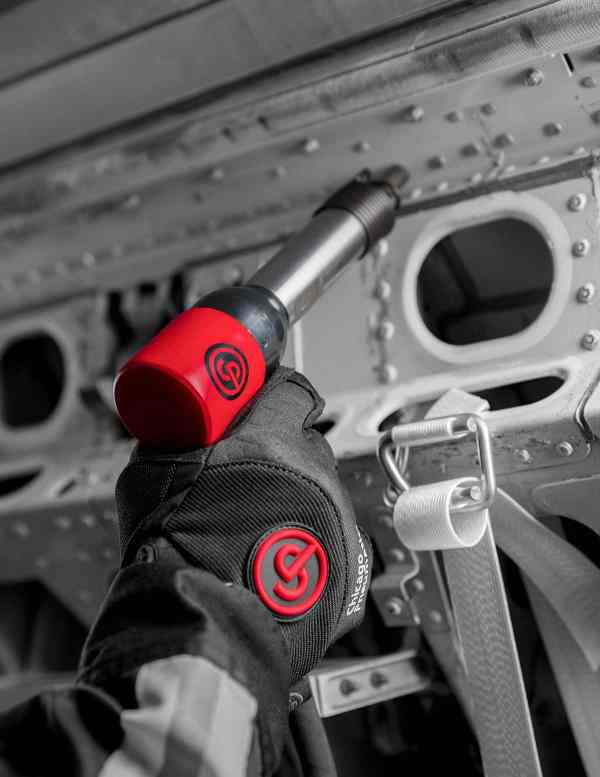

Chicago Pneumatic CP4284 RIVET HAMMER
Chicago Pneumatic CP4284 RIVET HAMMER
Chicago Pneumatic CP4284 RIVET HAMMER - Image 2
Chicago Pneumatic CP4284 RIVET HAMMER - Image 3
Chicago Pneumatic CP4284 RIVET HAMMER - Image 4
Chicago Pneumatic CP4284 RIVET HAMMER - Image 5

Chicago Pneumatic CP4284 RIVET HAMMER

Original price was: $860.57.Current price is: $593.80.

CP4284 – The Aerospace riveting solution from Chicago Pneumatic

SKU: 6151740620 Categories: , , Brand:

Description

CP4284

CP4284 – The Aerospace riveting solution from Chicago Pneumatic

Benefits

  • Efficient and powerful
  • Lightweight and comfortable to hold
  • Excellent control with teasing trigger

    • Features

  • Designed for rivets up to 1/4″
  • Delivered with chisel retainer included in the box
  • To be used with chisel kit 6153609400

    • Model CP4284
    Part number 6151740620
    Length 211 mm 8.22″
    Length 8.22″ 211 mm
    Net weight 1.39 kg 3.06 lb
    Net weight 3.06 lb 1.39 kg
    Height 142.8 mm 5.625″
    Height 5.625″ 142.8 mm
    Width 50.8 mm 2″
    Width 2″ 50.8 mm
    Average air consumption 4 cfm
    Average air consumption 1.89 l/s 4 cfm
    Air inlet thread size 1/4 “
    Min. hose size 9.5 mm 3/8″
    Min. hose size 3/8″ 9.5 mm
    Sound pressure 97 db(A)
    Sound Power 108 db(A)
    European Sound standard EN ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO EN ISO 28927-10
    Vibration 12.9 m/s²
    Vibration uncertainty (K) 2.7 m/s²
    Power (Joules) 4.59 joule
    Blows per minute 1740
    Bore 1/2″ 12.7 mm
    Bore 12.7 mm 1/2″
    Stroke 3.07″ 78 mm
    Stroke 78 mm 3.07″
    Chisel rivet set shank 0.401″ 10.2 mm
    Chisel rivet set shank 10.2 mm 0.401″
    Cold rivet capacity (steel) 3/16″ 4.76 mm
    Cold rivet capacity (steel) 4.76 mm 3/16″
    Cold rivet capacity (duralmin) 1/4″ 6.35 mm
    Cold rivet capacity (duralmin) 6.35 mm 1/4″
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-4 : 2012
    Air inlet thread type NPT
