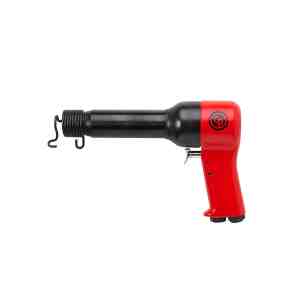

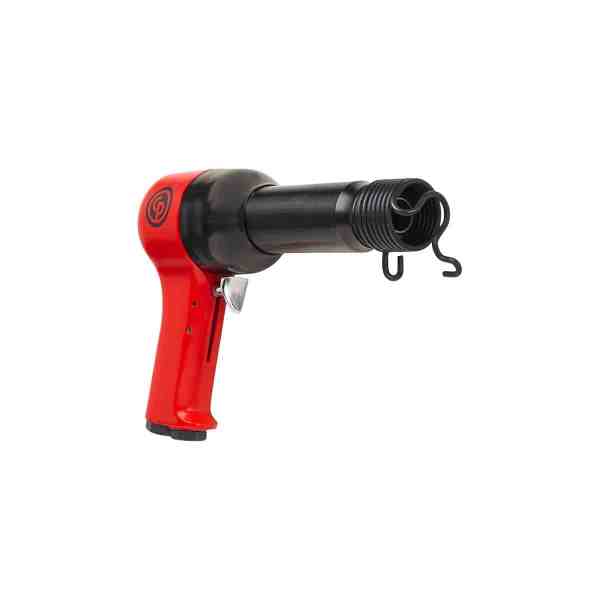

Chicago Pneumatic CP4287 RIVET HAMMER

Original price was: $1,189.47.Current price is: $820.73.

CP4287 – The Aerospace riveting solution from Chicago Pneumatic

Description

Name: Chicago Pneumatic CP4287 RIVET HAMMER - Pneumatics Now Equipment
SKU: 6151740640
Price: 820.73 USD
Availability: InStock

CP4287 – The Aerospace riveting solution from Chicago Pneumatic

Efficient and powerful

Lightweight and comfortable to hold

Excellent control with teasing trigger

Designed for rivets up to 5/16″

Delivered with chisel retainer included in the box

To be used with chisel kit 6153609410


Model	CP4287
Part number	6151740640
Length	256 mm	9.98″
Length	9.98″	256 mm
Net weight	2.4 kg	5.29 lb
Net weight	5.29 lb	2.4 kg
Height	160.3 mm	6.3125″
Height	6.3125″	160.3 mm
Width	63.5 mm	2 1/2″
Width	2 1/2″	63.5 mm
Average air consumption	6 cfm
Average air consumption	2.83 l/s	6 cfm
Air inlet thread size	1/4 “
Min. hose size	9.5 mm	3/8″
Min. hose size	3/8″	9.5 mm
Sound pressure	103 db(A)
Sound Power	114 db(A)
European Sound standard	EN ISO 15744
Sound uncertainty	3 db(A)
Vibration ISO	EN ISO 28927-10
Vibration	26.3 m/s²
Vibration uncertainty (K)	4.7 m/s²
Power (Joules)	13.01 joule
Blows per minute	1140
Bore	3/4″	19 mm
Bore	19 mm	3/4″
Stroke	3.86″	98 mm
Stroke	98 mm	3.86″
Chisel rivet set shank	0.498″	12.64 mm
Chisel rivet set shank	12.64 mm	0.498″
Cold rivet capacity (steel)	1/4″	6.35 mm
Cold rivet capacity (steel)	6.35 mm	1/4″
Cold rivet capacity (duralmin)	5/16″	7.93 mm
Cold rivet capacity (duralmin)	7.93 mm	5/16″
European Directives	2006/42/EC (17/05/2006)
European Standards	EN ISO 11148-4 : 2012
Air inlet thread type	NPT

Brand	Chicago Pneumatic Tools
Model - Series	CP4287
