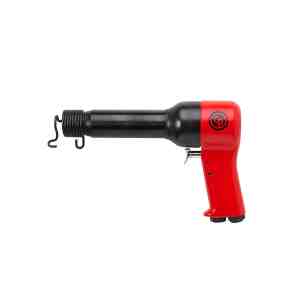

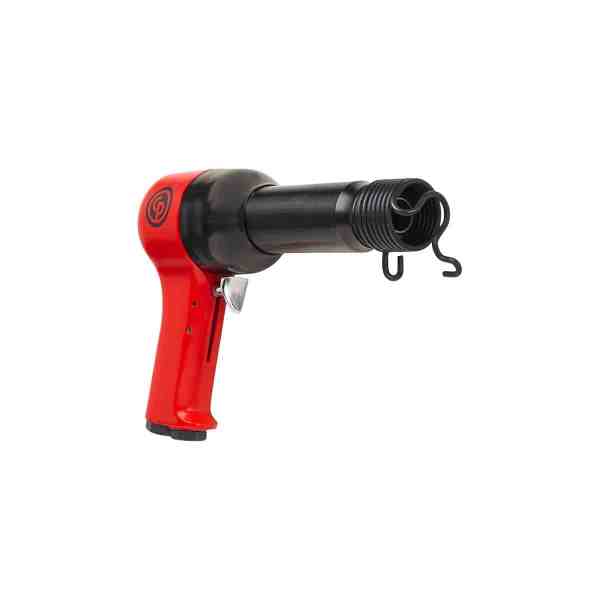

Chicago Pneumatic CP4287 RIVET HAMMER
Original price was: $1,100.34.$794.69Current price is: $794.69.
CP4287 – The Aerospace riveting solution from Chicago Pneumatic
- Description
- Additional information
Description
CP4287
CP4287 – The Aerospace riveting solution from Chicago Pneumatic
Benefits
Features
| Model | CP4287 | |
| Part number | 6151740640 | |
| Length | 256 mm | 9.98″ |
| Net weight | 2.4 kg | 5.29 lb |
| Height | 160.3 mm | 6.3125″ |
| Width | 63.5 mm | 2 1/2″ |
| Average air consumption | 2.83 l/s | 6 cfm |
| Air inlet thread size | 1/4 “ | |
| Min. hose size | 9.5 mm | 3/8″ |
| Sound pressure | 103 db(A) | |
| Sound Power | 114 db(A) | |
| European Sound standard | EN ISO 15744 | |
| Sound uncertainty | 3 db(A) | |
| Vibration ISO | EN ISO 28927-10 | |
| Vibration | 26.3 m/s² | |
| Vibration uncertainty (K) | 4.7 m/s² | |
| Power (Joules) | 13.01 joule | |
| Blows per minute | 1140 | |
| Bore | 19 mm | 3/4″ |
| Stroke | 98 mm | 3.86″ |
| Chisel rivet set shank | 12.64 mm | 0.498″ |
| Cold rivet capacity (steel) | 6.35 mm | 1/4″ |
| Cold rivet capacity (duralmin) | 7.93 mm | 5/16″ |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Standards | EN ISO 11148-4 : 2012 | |
| Air inlet thread type | NPT | |
