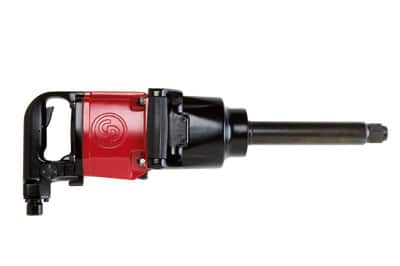

Chicago Pneumatic CP5000 1" IMPACT WRENCH
Chicago Pneumatic CP5000 1" IMPACT WRENCH

Chicago Pneumatic CP5000 1″ IMPACT WRENCH

Original price was: $3,201.76.Current price is: $2,449.35.

CP5000 – Most powerful

SKU: T024585 Categories: , Brand:

Description

CP5000

CP5000 – Most powerful

Benefits

  • Our strongest and most powerful 1″ impact with an extended anvil
  • Operator productivity
  • Convenient reverse valve for ease of use
  • Ideal for high volume tire work on trucks, buses, and heavy equipment

    • Features

  • 1″ impact wrench
  • Rocking dog clutch
  • 4-position power settings throttle for ease of use
  • Convenient reverse valve
  • Plus 7″ extended anvil

    •
    Model CP5000
    Part number T024585
    Length 572 mm 22.5″
    Length 22.5″ 572 mm
    Net weight 16.2 kg 35.71 lb
    Net weight 35.71 lb 16.2 kg
    Average air consumption 11.88 cfm
    Average air consumption 5.6 l/s 11.88 cfm
    Actual air consumption 52 cfm
    Actual air consumption 25 l/s 52 cfm
    Air inlet thread size 1/2 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 103 db(A)
    Sound Power 114 db(A)
    Vibration ISO ISO-28927-2
    Vibration 8.5 m/s²
    Vibration uncertainty (K) 2.6 m/s²
    Handle type D-Handle Inside Trigger
    Square drive 1″
    Working Torque Range (fwd) 240 – 2,800 Nm 185 – 2,065
    Working Torque Range (fwd) 185 – 2,065 ft.lbs 240 – 2,800
    Maximum Torque (reverse) 3390 Nm 2500 ft.lbs
    Maximum Torque (reverse) 2500 ft.lbs 3390 Nm
    Free speed 3700 rpm
    Blows per minute 540
    Power/weight ratio 209.3 Nm/kg 70 ft.lb/lb
    Power/weight ratio 70 ft.lb/lb 209.3 Nm/kg
    Socket retainer Dual (hole+friction)
    Clutch type Pinless rocking dog
    European Standards EN ISO 11148-6:2013
