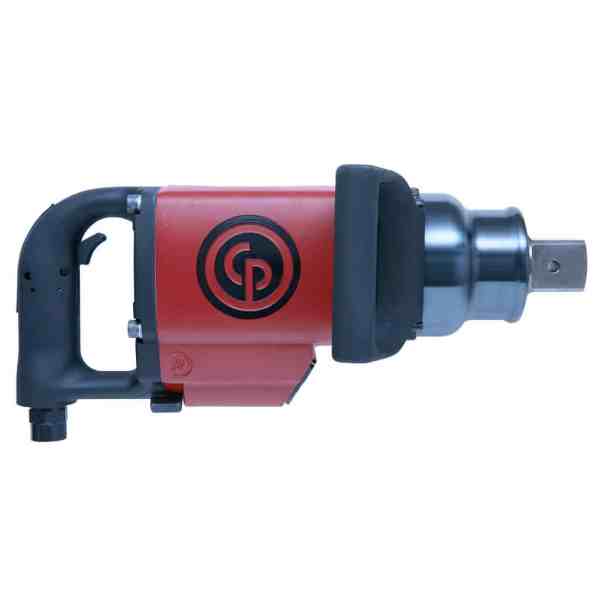

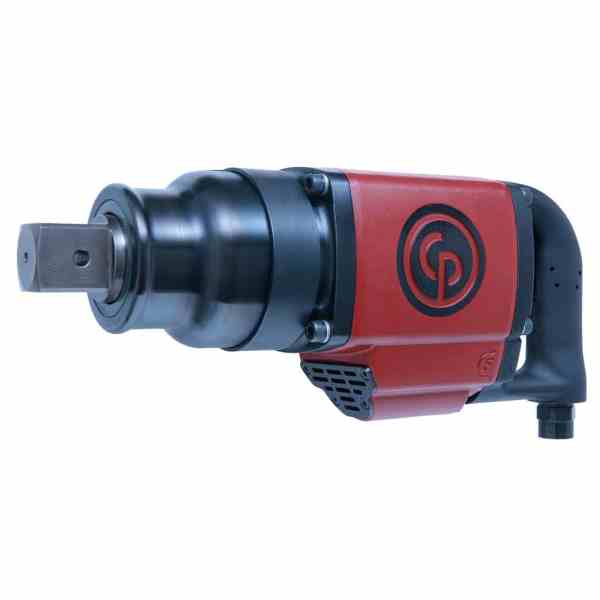

Chicago Pneumatic CP6120-D35H IMPACT WRENCH 1-1/2″

Original price was: $6,806.01.Current price is: $4,696.15.

CP6120-D35H – The most productive 1-1/2″

SKU: 6151590120 Categories: , Brand:

Description

CP6120-D35H

CP6120-D35H – The most productive 1-1/2″

Benefits

  • Unbeatable combination of power and ergonomics
  • Extremely low lateral vibrations for best comfort and safety
  • Excellent durability
  • The reference tool for the most demanding applications in Energy and Metal working segments

    • Features

  • Premium Industrial 1-1/2″ impact wrench
  • CP:s 2-Jaw clutch for superior ergonomics and productivity
  • Very robust steel clutch housing and aluminum motor housing
  • Extremely comfortable handle and adjustable support handle
  • Possibility to change inside/outside trigger, parts included in the box
  • Reverse biased 15%, possiblity to change to forward biased by turning around the air motor cylinder

    •
    Model CP6120-D35H
    Part number 6151590120
    Length 420 mm 16.5″
    Length 16.5″ 420 mm
    Net weight 15.65 kg 34.5 lb
    Net weight 34.5 lb 15.65 kg
    Side to center 54 mm 2.13″
    Side to center 2.13″ 54 mm
    Actual air consumption 60 cfm
    Actual air consumption 28.3 l/s 60 cfm
    Free speed air consumption 51.5 l/s
    Air inlet thread size 1/2 “
    Min. hose size 19 mm
    Sound pressure 97 db(A)
    Sound Power 108 db(A)
    Vibration ISO ISO-28927-2
    Vibration 21.8 m/s²
    Vibration uncertainty (K) 11.8 m/s²
    Handle type D-Handle Inside Trigger
    Square drive 1 1/2″
    Working Torque Range (fwd) 815 – 2,710 Nm 600 – 2,000
    Working Torque Range (fwd) 600 – 2,000 ft.lbs 815 – 2,710
    Maximum Torque (reverse) 4880 Nm 3600 ft.lbs
    Maximum Torque (reverse) 3600 ft.lbs 4880 Nm
    Free speed 3500 rpm
    Blows per minute 960
    Socket retainer Hole
    Clutch type 2-jaw clutch
    European Standards EN ISO 11148-6:2013
