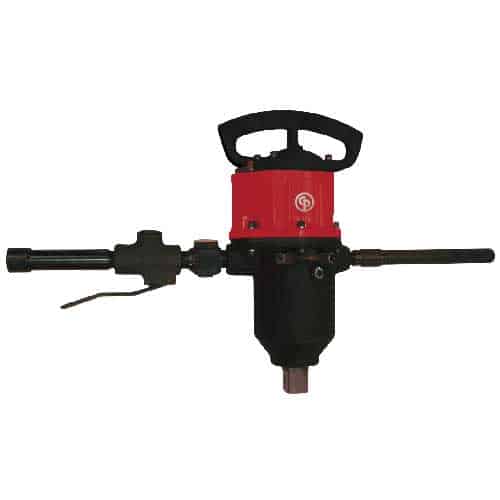

Chicago Pneumatic CP6130-T70 T-IMPACT WRENCH 1-1/2"
Chicago Pneumatic CP6130-T70 T-IMPACT WRENCH 1-1/2"
Chicago Pneumatic CP6130-T70 T-IMPACT WRENCH 1-1/2" - Image 2

Chicago Pneumatic CP6130-T70 T-IMPACT WRENCH 1-1/2″

Original price was: $14,870.85.Current price is: $10,260.89.

CP6130-T70 – Powerful, Durable & Comfortable 1-1/2″ T-Handle impact wrench

SKU: 6151590010 Categories: , Brand:

Description

CP6130-T70

CP6130-T70 – Powerful, Durable & Comfortable 1-1/2″ T-Handle impact wrench

Benefits

  • Incredible breaking torque (up to M56) for Industrial Maintenance & Production applications
  • Extreme durability: resistant parts, reliable mechanisms & robust housing
  • Operator comfort: smooth control, low vibrations & limited noise
  • Compact 3-parts construction for easy maintenance

    • Features

  • 1-1/2″ Super Duty T-Handle
  • Reliable Double Rocking Dog clutch
  • Durable aluminum body & clutch housing
  • 5-positions regulator, progressive trigger & Easy reverse
  • Removable dead handle and comfortable Top handles
  • Suspension hole for easy hoist/balancer hooking

    •
    Model CP6130-T70
    Part number 6151590010
    Length 500 mm 19.7″
    Length 19.7″ 500 mm
    Net weight 33 kg 72.6 lb
    Net weight 72.6 lb 33 kg
    Side to center 80 mm 3.14″
    Side to center 3.14″ 80 mm
    Actual air consumption 67.3 cfm
    Actual air consumption 31.76 l/s 67.3 cfm
    Air inlet thread size 1 “
    Min. hose size 19 mm 3/4″
    Min. hose size 3/4″ 19 mm
    Sound pressure 104 db(A)
    Sound Power 115 db(A)
    Vibration ISO ISO-28927-2
    Vibration 4.7 m/s²
    Vibration uncertainty (K) 1.7 m/s²
    Handle type T-Handle
    Square drive 1 1/2″
    Working Torque Range (fwd) 3,300 – 7,100 Nm 2,430 – 5,240
    Working Torque Range (fwd) 2,430 – 5,240 ft.lbs 3,300 – 7,100
    Maximum Torque (reverse) 12500 Nm 9220 ft.lbs
    Maximum Torque (reverse) 9220 ft.lbs 12500 Nm
    Free speed 4000 rpm
    Blows per minute 900
    Power/weight ratio 378.8 Nm/kg 127 ft.lb/lb
    Power/weight ratio 127 ft.lb/lb 378.8 Nm/kg
    Socket retainer Hole
    Clutch type Double Rocking Dog
    Bolt size M56
    European Standards EN ISO 11148-6:2013
