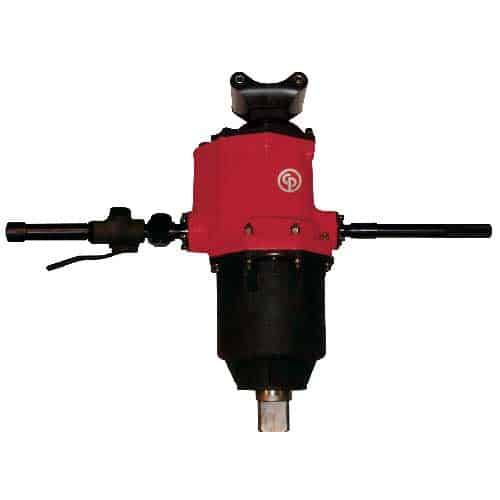

Chicago Pneumatic CP6240-T120 T-IMPACT WRENCH 2-1/2"
Chicago Pneumatic CP6240-T120 T-IMPACT WRENCH 2-1/2"
Chicago Pneumatic CP6240-T120 T-IMPACT WRENCH 2-1/2" - Image 2

Chicago Pneumatic CP6240-T120 T-IMPACT WRENCH 2-1/2″

Original price was: $20,416.93.Current price is: $14,087.69.

CP6240-T120 – Powerful, Durable & Comfortable 2-1/2″ T-Handle impact wrench

SKU: 6151590020 Categories: , Brand:

Description

CP6240-T120

CP6240-T120 – Powerful, Durable & Comfortable 2-1/2″ T-Handle impact wrench

Benefits

  • Incredible breaking torque (up to M72) for Industrial Maintenance & Production applications
  • Extreme durability: Resistant parts, reliable mechanisms & robust housing
  • Operator comfort: smooth control, low levels of vibration & limited noise
  • Compact 3-parts construction for easy maintenance

    • Features

  • 2-1/2″ Super Duty T-Handle
  • Reliable Double Rocking Dog clutch
  • Durable aluminum body & clutch housing
  • 6-positions regulator, progressive trigger & Easy reverse
  • Removable dead handle and comfortable Top handles
  • Suspension hole for easy hoist/balancer hooking

    •
    Model CP6240-T120
    Part number 6151590020
    Length 610 mm 24.1″
    Length 24.1″ 610 mm
    Net weight 60 kg 132 lb
    Net weight 132 lb 60 kg
    Side to center 90 mm 3.54″
    Side to center 3.54″ 90 mm
    Actual air consumption 74.9 cfm
    Actual air consumption 35.34 l/s 74.9 cfm
    Air inlet thread size 1 “
    Min. hose size 19 mm 3/4″
    Min. hose size 3/4″ 19 mm
    Sound pressure 107 db(A)
    Sound Power 118 db(A)
    Vibration ISO ISO-28927-2
    Vibration 4.5 m/s²
    Vibration uncertainty (K) 1.5 m/s²
    Handle type T-Handle
    Square drive 2 1/2″
    Working Torque Range (fwd) 5,100 – 12,400 Nm 3,760 – 9,150
    Working Torque Range (fwd) 3,760 – 9,150 ft.lbs 5,100 – 12,400
    Maximum Torque (reverse) 25000 Nm 18440 ft.lbs
    Maximum Torque (reverse) 18440 ft.lbs 25000 Nm
    Free speed 3000 rpm
    Blows per minute 800
    Power/weight ratio 416.7 Nm/kg 139.7 ft.lb/lb
    Power/weight ratio 139.7 ft.lb/lb 416.7 Nm/kg
    Socket retainer Hole
    Clutch type Double Rocking Dog
    Bolt size M72
    European Standards EN ISO 11148-6:2013
