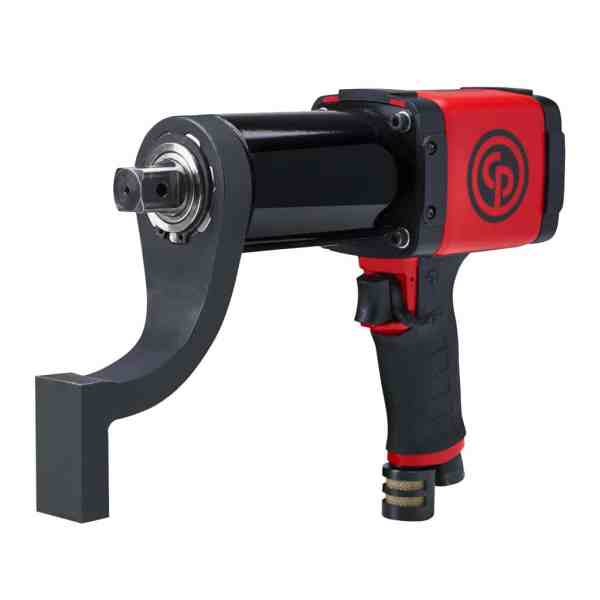

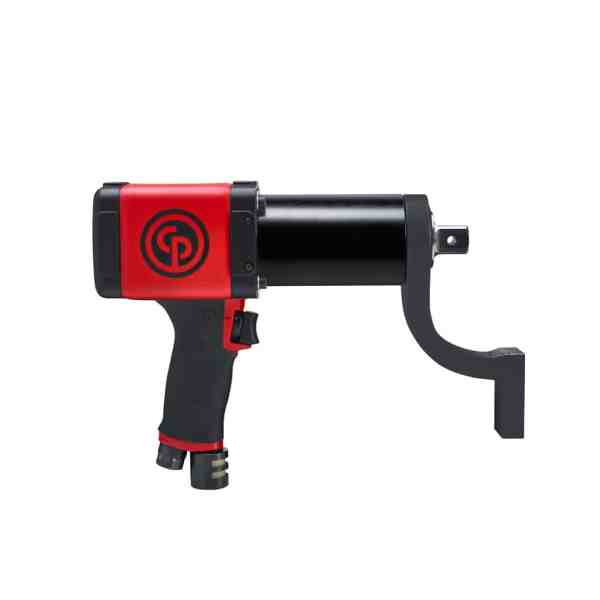

Chicago Pneumatic CP6613-FRL PNEUMATIC NUTRUNNER PK
Chicago Pneumatic CP6613-FRL PNEUMATIC NUTRUNNER PK
Chicago Pneumatic CP6613-FRL PNEUMATIC NUTRUNNER PK - Image 2
Chicago Pneumatic CP6613-FRL PNEUMATIC NUTRUNNER PK - Image 3
Chicago Pneumatic CP6613-FRL PNEUMATIC NUTRUNNER PK - Image 4
Chicago Pneumatic CP6613-FRL PNEUMATIC NUTRUNNER PK - Image 5

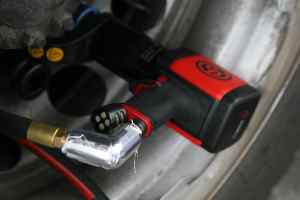

Chicago Pneumatic CP6613-FRL PNEUMATIC NUTRUNNER PK - Image 6

Chicago Pneumatic CP6613-FRL PNEUMATIC NUTRUNNER PK

Original price was: $8,053.43.Current price is: $5,355.53.

CP6613 + ATC PACK – The most robust pneumatic nutrunner in its class with 960 ft.lbs / 1,300 Nm max. and our most accurate air supply solution

SKU: 6151800120 Categories: , , Brand:

Description

CP6613-FRL

CP6613 + ATC PACK – The most robust pneumatic nutrunner in its class with 960 ft.lbs / 1,300 Nm max. and our most accurate air supply solution

Benefits

  • Robust
  • Accurate
  • Strong lightweight reaction arm
  • Lightweight

    • Features

  • Replaceable protective cover
  • Reliable Gearbox: 13,000 cycles before maintenance
  • Vane type high performance air motor same as industrial impact wrench
  • Capable of reaching high torque accuracy
  • Different reaction arm types and shapes available
  • Reduce operator fatigue and risks of MSDs

    •
    Model CP6613 + ATC PACK
    Part number 6151800120
    Air inlet thread size 3/8 “
    Square drive 3/4″ 19 mm
    Length 254 mm 10″
    Length 10″ 254 mm
    Height 212 mm 8.34″
    Height 8.34″ 212 mm
    Width 72 mm 2.83″
    Width 2.83″ 72 mm
    Side to center 32 mm 1.26″
    Side to center 1.26″ 32 mm
    Free speed air consumption 48 cfm
    Free speed air consumption 23 l/s 48 cfm
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2 13
    Sound pressure 90 db(A)
    Sound Power 101 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO 28927-2
    Vibration <2,5 m/s²
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2012
    Reaction bar S-type
    Reversible Reversible
    Torque preset # Multi
    Handle type Pistol
    Free speed 20 rpm
    Working Torque Range (fwd) 320 – 1300 Nm 236 – 960
    Working Torque Range (fwd) 236 – 960 ft.lbs 320 – 1300
    Working Torque Range (reverse) 320 – 1300 Nm 236 – 960
    Working Torque Range (reverse) 236 – 960 ft.lbs 320 – 1300
    Maximum Torque (fwd) 1300 Nm 960 ft.lbs
    Maximum Torque (fwd) 960 ft.lbs 1300 Nm
    Maximum Torque (reverse) 1300 Nm 960 ft.lbs
    Maximum Torque (reverse) 960 ft.lbs 1300 Nm
    Socket retainer Hole
    Square drive 19 mm 3/4″
    Bolt size 20-27  3/4 – 1-1/16
    Bolt size 3/4 – 1-1/16 20-27
    European Standards EN ISO 11148-6:2013
    Weight Including Reaction Arm 4.4 kg 10.1 lb
    Weight Including Reaction Arm 10.1 lb 4.4 kg
    Weight w/o Reaction Arm 3.7 kg 8.3 lb
    Weight w/o Reaction Arm 8.3 lb 3.7 kg
