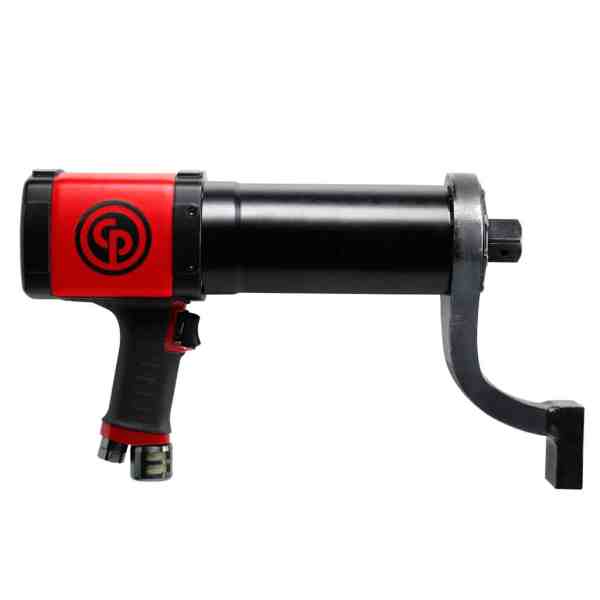

Chicago Pneumatic CP6641-FRL PNEUMATIC NUTRUNNER PK
Chicago Pneumatic CP6641-FRL PNEUMATIC NUTRUNNER PK

Chicago Pneumatic CP6641-FRL PNEUMATIC NUTRUNNER PK

Original price was: $10,908.37.Current price is: $7,254.07.

CP6641 + ATC PACK – The most robust pneumatic nutrunner in its class with 3,100 ft.lbs / 4,100 Nm max. and our most accurate air supply solution

SKU: 6151800140 Categories: , , Brand:

Description

CP6641-FRL

CP6641 + ATC PACK – The most robust pneumatic nutrunner in its class with 3,100 ft.lbs / 4,100 Nm max. and our most accurate air supply solution

Benefits

  • Robust
  • Accurate
  • Strong lightweight reaction arm

    • Features

  • Replaceable protective cover
  • Reliable Gearbox: 13,000 cycles before maintenance
  • Vane type high performance air motor same as industrial impact wrench
  • Capable of reaching high torque accuracy
  • Different reaction arm types and shapes available
  • Reduce operator fatigue and risks of MSDs

    •
    Model CP6641 + ATC PACK
    Part number 6151800140
    Length 361 mm 14.21″
    Length 14.21″ 361 mm
    Height 228 mm 8.97″
    Height 8.97″ 228 mm
    Width 100 mm 3.94″
    Width 3.94″ 100 mm
    Side to center 40 mm 1.57″
    Side to center 1.57″ 40 mm
    Average air consumption 23 l/s
    Sound pressure 90 db(A)
    Sound Power 101 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO 28927-2
    Vibration <2,5 m/s²
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2012
    Reaction bar S-type
    Reversible Reversible
    Torque preset # Multi
    Square drive 1″ 25 mm
    Handle type Pistol
    Free speed 10 rpm
    Working Torque Range (fwd) 1000 – 4100 Nm 738 – 3100
    Working Torque Range (fwd) 738 – 3100 ft.lbs 1000 – 4100
    Working Torque Range (reverse) 1000 – 4100 Nm 738 – 3100
    Working Torque Range (reverse) 738 – 3100 ft.lbs 1000 – 4100
    Maximum Torque (fwd) 4100 Nm 3100 ft.lbs
    Maximum Torque (fwd) 3100 ft.lbs 4100 Nm
    Maximum Torque (reverse) 4100 Nm 3100 ft.lbs
    Maximum Torque (reverse) 3100 ft.lbs 4100 Nm
    Socket retainer Hole
    Square drive 25 mm 1″
    European Standards EN ISO 11148-6:2013
    Weight Including Reaction Arm 10.8 kg 23.8 lb
    Weight Including Reaction Arm 23.8 lb 10.8 kg
    Weight w/o Reaction Arm 8.8 kg 19.4 lb
    Weight w/o Reaction Arm 19.4 lb 8.8 kg
