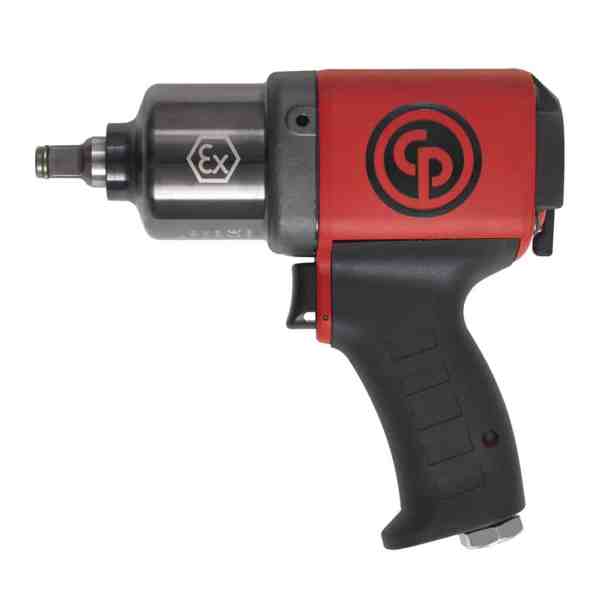

Chicago Pneumatic CP6748EX-P11R IMPACT WRENCH 1/2" ATEX
Chicago Pneumatic CP6748EX-P11R IMPACT WRENCH 1/2" ATEX
Chicago Pneumatic CP6748EX-P11R IMPACT WRENCH 1/2" ATEX - Image 2
Chicago Pneumatic CP6748EX-P11R IMPACT WRENCH 1/2" ATEX - Image 3

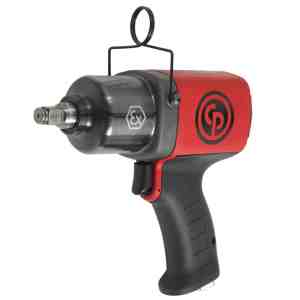

Chicago Pneumatic CP6748EX-P11R IMPACT WRENCH 1/2" ATEX - Image 4
Chicago Pneumatic CP6748EX-P11R IMPACT WRENCH 1/2" ATEX - Image 5
Chicago Pneumatic CP6748EX-P11R IMPACT WRENCH 1/2" ATEX - Image 6

Chicago Pneumatic CP6748EX-P11R IMPACT WRENCH 1/2″ ATEX

Original price was: $618.88.Current price is: $427.03.

CP6748EX-P11R ATEX – New range – Premium Composite!

SKU: 6151590570 Categories: , Brand:

Description

CP6748EX-P11R

CP6748EX-P11R ATEX – New range – Premium Composite!

Benefits

  • Superior durability – designed for intensive use
  • High torque – up to 800 ft.lb (1085 Nm)
  • Comfortable and light weight

    • Features

  • Twin hammer in oil bath and steel clutch housing for long life
  • Extremely durable steel motor
  • Dust-proof (IP6) and ATEX certified

    •
    Model CP6748EX-P11R ATEX
    Part number 6151590570
    Length 200 mm 7.9″
    Length 7.9″ 200 mm
    Net weight 2.4 kg 5.4 lb
    Net weight 5.4 lb 2.4 kg
    Side to center 36 mm 1.4″
    Side to center 1.4″ 36 mm
    Actual air consumption 30 cfm
    Actual air consumption 14.2 l/s 30 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 93 db(A)
    Sound Power 104 db(A)
    Vibration ISO ISO-28927-2
    Vibration 8.7 m/s²
    Vibration uncertainty (K) 2.2 m/s²
    Handle type Pistol
    Square drive 1/2″
    Working Torque Range (fwd) 180 – 760 Nm 130 – 560
    Working Torque Range (fwd) 130 – 560 ft.lbs 180 – 760
    Maximum Torque (reverse) 1085 Nm 800 ft.lbs
    Maximum Torque (reverse) 800 ft.lbs 1085 Nm
    Free speed 8400 rpm
    Blows per minute 1200
    Power/weight ratio 452.1 Nm/kg 148.1 ft.lb/lb
    Power/weight ratio 148.1 ft.lb/lb 452.1 Nm/kg
    Socket retainer Friction ring
    Clutch type Twin hammer / Oil Bath
    Bolt size M20  3/4″
    Bolt size 3/4″ M20
    European Standards EN ISO 11148-6:2013
