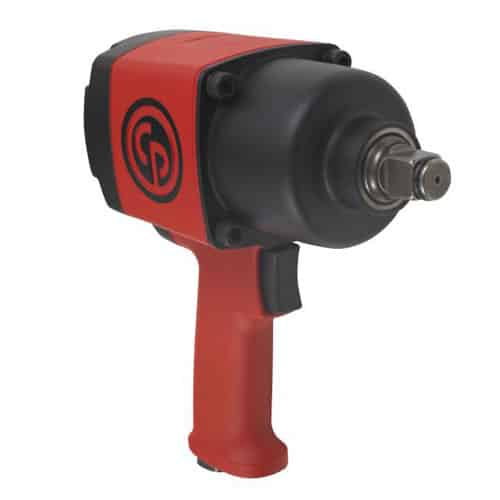

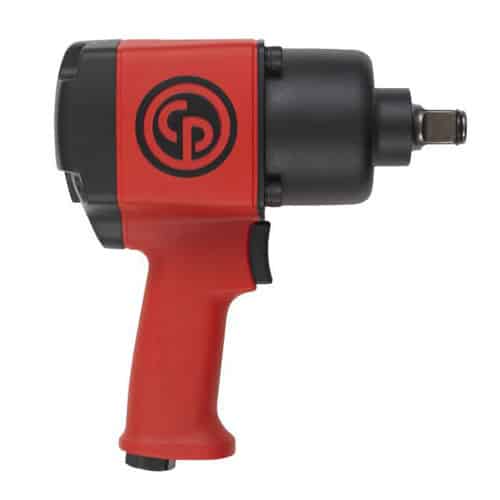

Chicago Pneumatic CP6763 3/4" IMPACT WRENCH
Chicago Pneumatic CP6763 3/4" IMPACT WRENCH
Chicago Pneumatic CP6763 3/4" IMPACT WRENCH - Image 2
Chicago Pneumatic CP6763 3/4" IMPACT WRENCH - Image 3

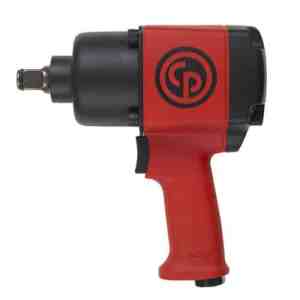

Chicago Pneumatic CP6763 3/4" IMPACT WRENCH - Image 4

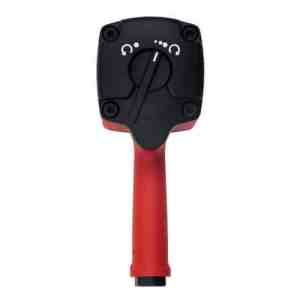

Chicago Pneumatic CP6763 3/4" IMPACT WRENCH - Image 5

Chicago Pneumatic CP6763 3/4″ IMPACT WRENCH

Original price was: $993.68.Current price is: $685.64.

CP6763 – Compact, Robust & Powerful 3/4″ impact for industrial maintenance applications

SKU: 6151590400 Categories: , Brand:

Description

CP6763

CP6763 – Compact, Robust & Powerful 3/4″ impact for industrial maintenance applications

Benefits

  • Compact and Versatile for Industrial Maintenance applications
  • Very hard hitting twin hammer clutch
  • Robust for the roughest environments and the toughest applications

    • Features

  • 3/4″ impact wrench with Dual retainer
  • Very powerful twin hammer clutch
  • Robust Steel Clutch housing
  • Powerful Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)
  • Combined power regulator with forward/reverse

    •
    Model CP6763
    Part number 6151590400
    Length 222 mm 8.74″
    Length 8.74″ 222 mm
    Net weight 5.5 kg 12.1 lb
    Net weight 12.1 lb 5 1/2 kg
    Side to center 41 mm 1.6″
    Side to center 1.6″ 41 mm
    Actual air consumption 30 cfm
    Actual air consumption 14.2 l/s 30 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 96 db(A)
    Sound Power 107 db(A)
    Vibration ISO ISO-28927-2
    Vibration 9.4 m/s²
    Vibration uncertainty (K) 1.3 m/s²
    Handle type Pistol
    Square drive 3/4″
    Working Torque Range (fwd) 350 – 1290 Nm 260 – 950
    Working Torque Range (fwd) 260 – 950 ft.lbs 350 – 1290
    Maximum Torque (reverse) 1630 Nm 1200 ft.lbs
    Maximum Torque (reverse) 1200 ft.lbs 1630 Nm
    Free speed 6300 rpm
    Blows per minute 900
    Power/weight ratio 296.4 Nm/kg 99.2 ft.lb/lb
    Power/weight ratio 99.2 ft.lb/lb 296.4 Nm/kg
    Socket retainer Ring
    Clutch type Twin Hammer
    Bolt size M27
    European Standards EN ISO 11148-6:2013
