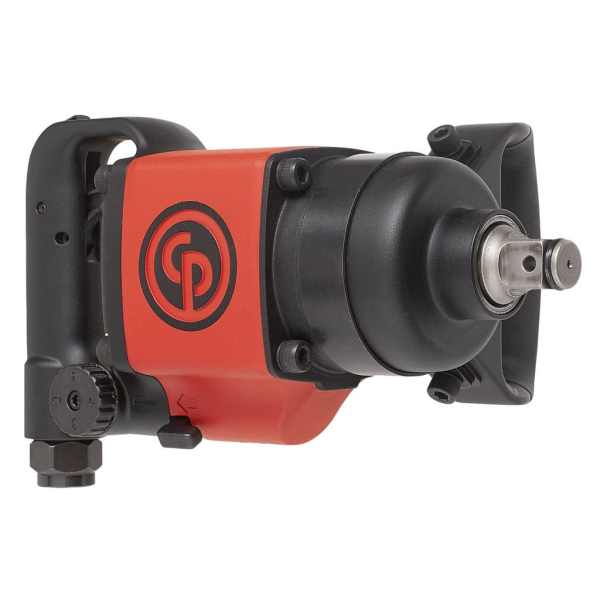

Chicago Pneumatic CP6763-D18D IMPACT WRENCH 3/4"
Chicago Pneumatic CP6763-D18D IMPACT WRENCH 3/4"
Chicago Pneumatic CP6763-D18D IMPACT WRENCH 3/4" - Image 2
Chicago Pneumatic CP6763-D18D IMPACT WRENCH 3/4" - Image 3
Chicago Pneumatic CP6763-D18D IMPACT WRENCH 3/4" - Image 4

Chicago Pneumatic CP6763-D18D IMPACT WRENCH 3/4″

Original price was: $1,006.02.Current price is: $694.16.

CP6763-D18D – Compact and robust D-handle for industrial maintenance applications

SKU: 6151590640 Categories: , Brand:

Description

CP6763-D18D

CP6763-D18D – Compact and robust D-handle for industrial maintenance applications

Benefits

  • Ideal for many industrial MRO applications
  • Good ergonomics giving less operator’s fatigue
  • Hole and ring retaining system

    • Features

  • Ergonomic D-handle – easy to carry and use
  • Short and compact for easy access
  • Powerful, untightening torque 1300 ft.lb (1760 Nm)

    •
    Model CP6763-D18D
    Part number 6151590640
    Length 290 mm 11.4″
    Length 11.4″ 290 mm
    Net weight 6.6 kg 14.5 lb
    Net weight 14.5 lb 6.6 kg
    Side to center 41 mm 1.6″
    Side to center 1.6″ 41 mm
    Actual air consumption 41 cfm
    Actual air consumption 19.3 l/s 41 cfm
    Free speed air consumption 26.3 l/s
    Air inlet thread size 1/2 “
    Min. hose size 13 mm 3/8″
    Min. hose size 3/8″ 13 mm
    Sound pressure 98 db(A)
    Sound Power 109 db(A)
    Vibration ISO ISO-28927-2
    Vibration 11.4 m/s²
    Vibration uncertainty (K) 2.9 m/s²
    Handle type D-Handle Inside Trigger
    Square drive 3/4″
    Working Torque Range (fwd) 340 – 1450 Nm 250 – 1070
    Working Torque Range (fwd) 250 – 1070 ft.lbs 340 – 1450
    Maximum Torque (reverse) 1760 Nm 1300 ft.lbs
    Maximum Torque (reverse) 1300 ft.lbs 1760 Nm
    Free speed 6600 rpm
    Blows per minute 730
    Socket retainer Dual (hole+friction)
    Clutch type Twin hammer
    European Standards EN ISO 11148-6:2013
