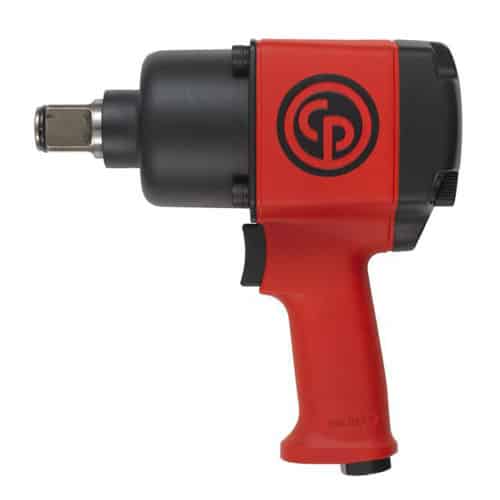

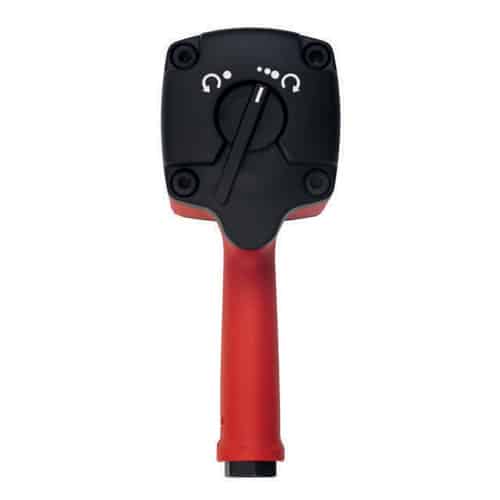

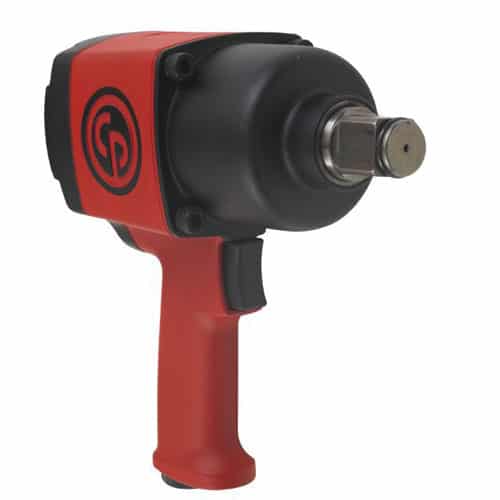

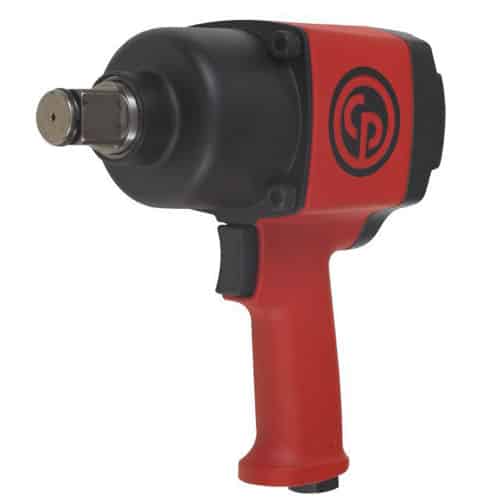

Chicago Pneumatic CP6773 1" IMPACT WRENCH
Chicago Pneumatic CP6773 1" IMPACT WRENCH
Chicago Pneumatic CP6773 1" IMPACT WRENCH - Image 2
Chicago Pneumatic CP6773 1" IMPACT WRENCH - Image 3
Chicago Pneumatic CP6773 1" IMPACT WRENCH - Image 4
Chicago Pneumatic CP6773 1" IMPACT WRENCH - Image 5

Chicago Pneumatic CP6773 1″ IMPACT WRENCH

Original price was: $1,027.07.Current price is: $708.68.

CP6773 – Compact, Robust & Powerful for industrial maintenance applications

SKU: 6151590410 Categories: , Brand:

Description

CP6773

CP6773 – Compact, Robust & Powerful for industrial maintenance applications

Benefits

  • Compact and Versatile for Industrial Maintenance applications
  • Built to withstand the harshest environments and the most demanding application
  • Powerful and very hard hitting tool

    • Features

  • 1″ impact wrench with Dual retainer
  • Short and narrow side-to-center for easy access
  • Robust Steel Clutch housing
  • Powerful Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)
  • Combined power regulator with forward/reverse

    •
    Model CP6773
    Part number 6151590410
    Length 227.5 mm 8.8″
    Length 8.8″ 227.5 mm
    Net weight 5.6 kg 12.3 lb
    Net weight 12.3 lb 5.6 kg
    Side to center 41 mm 1.6″
    Side to center 1.6″ 41 mm
    Actual air consumption 30 cfm
    Actual air consumption 14.2 l/s 30 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 96 db(A)
    Sound Power 107 db(A)
    Vibration ISO ISO-28927-2
    Vibration 9.4 m/s²
    Vibration uncertainty (K) 1.3 m/s²
    Handle type Pistol
    Square drive 1″
    Working Torque Range (fwd) 350 – 1290 Nm 260 – 950
    Working Torque Range (fwd) 260 – 950 ft.lbs 350 – 1290
    Maximum Torque (reverse) 1630 Nm 1200 ft.lbs
    Maximum Torque (reverse) 1200 ft.lbs 1630 Nm
    Free speed 6300 rpm
    Blows per minute 900
    Power/weight ratio 291.1 Nm/kg 97.6 ft.lb/lb
    Power/weight ratio 97.6 ft.lb/lb 291.1 Nm/kg
    Socket retainer Ring
    Clutch type Twin Hammer
    Bolt size M27
    European Standards EN ISO 11148-6:2013
