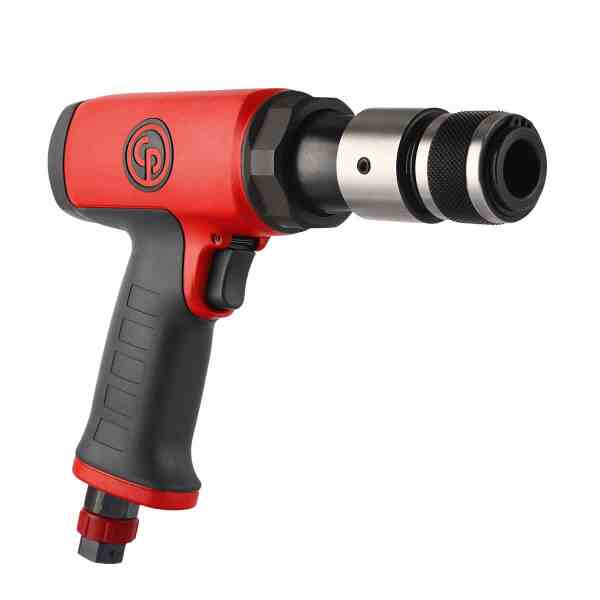

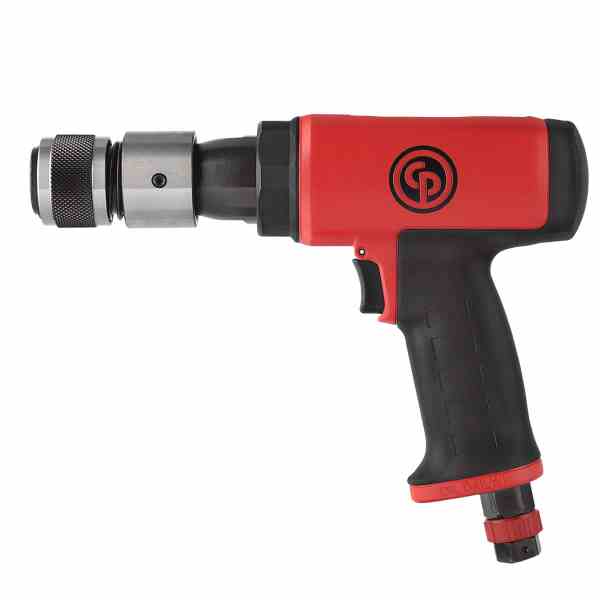

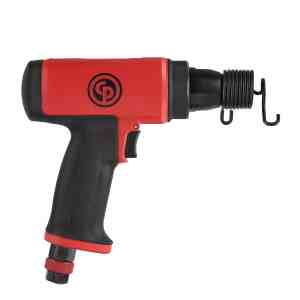

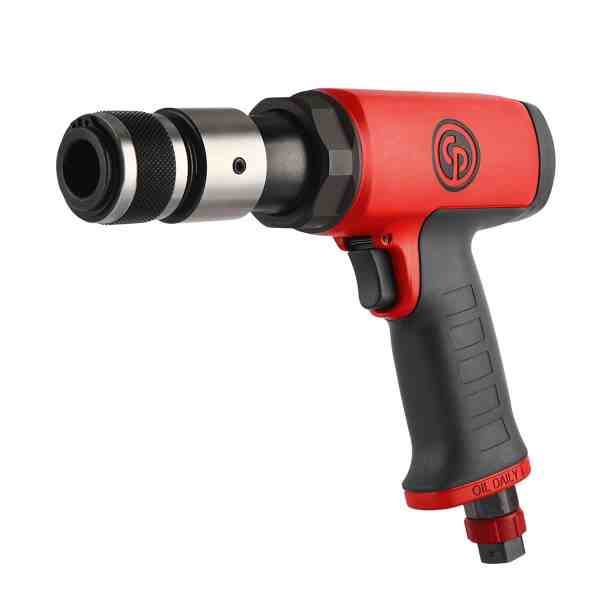

Chicago Pneumatic CP7160K LOW VIBRATION SHORT HAMMER KIT
Chicago Pneumatic CP7160K LOW VIBRATION SHORT HAMMER KIT
Chicago Pneumatic CP7160K LOW VIBRATION SHORT HAMMER KIT - Image 2
Chicago Pneumatic CP7160K LOW VIBRATION SHORT HAMMER KIT - Image 3
Chicago Pneumatic CP7160K LOW VIBRATION SHORT HAMMER KIT - Image 4
Chicago Pneumatic CP7160K LOW VIBRATION SHORT HAMMER KIT - Image 5
Chicago Pneumatic CP7160K LOW VIBRATION SHORT HAMMER KIT - Image 6

Chicago Pneumatic CP7160K LOW VIBRATION SHORT HAMMER KIT

Original price was: $515.54.Current price is: $394.39.

CP7160K – Low vibration hammer

SKU: 8941071601 Categories: , , Brand:

Description

CP7160K

CP7160K – Low vibration hammer

Benefits

  • Low vibration
  • Comfortable
  • Powerful
  • Lightweight & Durable
  • Effective
  • Asjustable

    • Features

  • Air cushion present in the tool reducing vibration to 4.37 m/s²
  • Rubber grip at the back of the tool & Well balanced tool
  • 8 joule of power
  • Aluminum motor housing
  • Back of the tool designed for great handling
  • Quick change chisel retainer (provided with the tool)
  • Adjustable power (4 power settings)

    •
    Model CP7160K
    Part number 8941071601
    Length 191 mm 7.52″
    Length 7.52″ 191 mm
    Net weight 1.88 kg 4.14 lb
    Net weight 4.14 lb 1.88 kg
    Height 194 mm 7.64″
    Height 7.64″ 194 mm
    Width 58 mm 2.28″
    Width 2.28″ 58 mm
    Actual air consumption 18.4 cfm
    Actual air consumption 8.7 l/s 18.4 cfm
    Free speed air consumption 22.5 cfm
    Free speed air consumption 10.6 l/s 22.5 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 98.4 db(A)
    Sound Power 109.4 db(A)
    European Sound standard EN ISO 15744
    Vibration ISO EN ISO 28927-10
    Vibration 4.37 m/s²
    Vibration uncertainty (K) 1.4 m/s²
    Power (Joules) 8 joule
    Blows per minute 3500
    Bore 3/4″ 19 mm
    Bore 19 mm 3/4″
    Stroke 2.64″ 67 mm
    Stroke 67 mm 2.64″
    Chisel rivet set shank 0.401″ 10.2 mm
    Chisel rivet set shank 10.2 mm 0.401″
    Shank Round
    Cold rivet capacity 1/4″ 6.4 mm
    Cold rivet capacity 6.4 mm 1/4″
    Cold rivet capacity (steel) 3/16″ 4.8 mm
    Cold rivet capacity (steel) 4.8 mm 3/16″
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-4 : 2012
