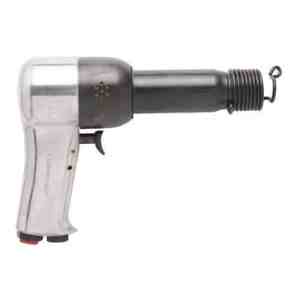

Chicago Pneumatic CP717 .498" AIR HAMMER
Chicago Pneumatic CP717 .498" AIR HAMMER

Chicago Pneumatic CP717 .498″ AIR HAMMER

Original price was: $1,583.96.Current price is: $1,211.73.

CP717 – Power & Durability

SKU: T020120 Categories: , , Brand:

Description

CP717

CP717 – Power & Durability

Benefits

  • Power and precision
  • Flexible operating positions
  • Ideal tool for deep cutting, bolt riveting and super-duty applications

    • Features

  • Heavy duty pistol grip hammer
  • Standard .498″ round shank
  • High power air hammer
  • Positive action trigger

    •
    Model CP717
    Part number T020120
    Length 190 mm 7.5″
    Length 7.5″ 190 mm
    Net weight 2.15 kg 4,75 lb
    Net weight 4,75  2.15
    Average air consumption 3.13 cfm 89 l/mn
    Average air consumption 89 l/mn 3.13 cfm
    Actual air consumption 12.5 cfm 354 l/mn
    Actual air consumption 5.9 l/s 12.5 cfm
    Actual air consumption 354 l/mn 12.5 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 95 db(A)
    Sound Power 106 db(A)
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-9
    Vibration 8.6 m/s²
    Vibration uncertainty (K) 2.9 m/s²
    Power (Joules) 7.3 joule
    Blows per minute 1800
    Bore 3/4″ 19 mm
    Bore 19 mm 3/4″
    Stroke 2.69″ 68 mm
    Stroke 68 mm 2.69″
    Chisel rivet set shank 0.498″ 12.7 mm
    Chisel rivet set shank 12.7 mm 0.498″
    Sound DBA pressure 94 db(A)
    Shank Round
    Cold rivet capacity 1/4″ 6.4 mm
    Cold rivet capacity 6.4 mm 1/4″
    Cold rivet capacity (steel) 3/16″ 4.8 mm
    Cold rivet capacity (steel) 4.8 mm 3/16″
