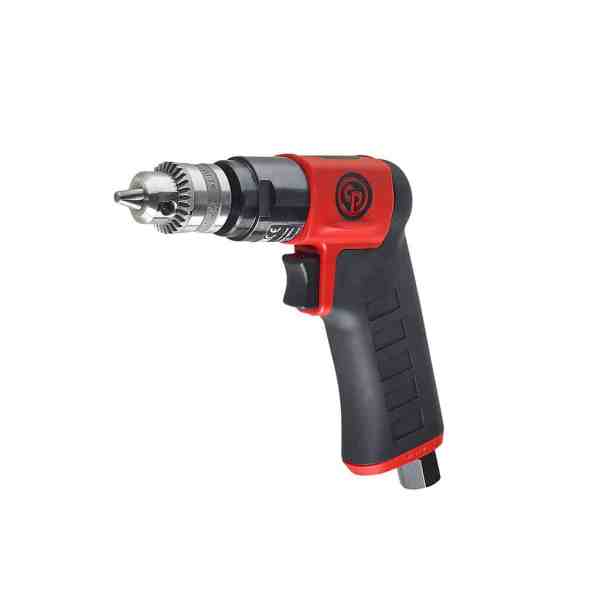

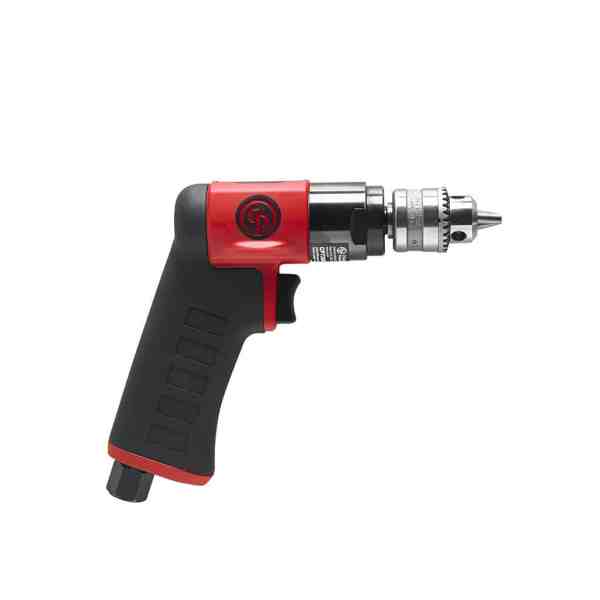

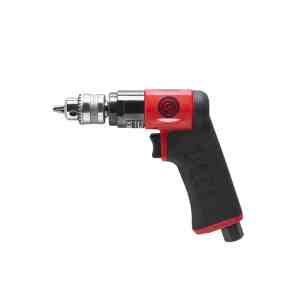

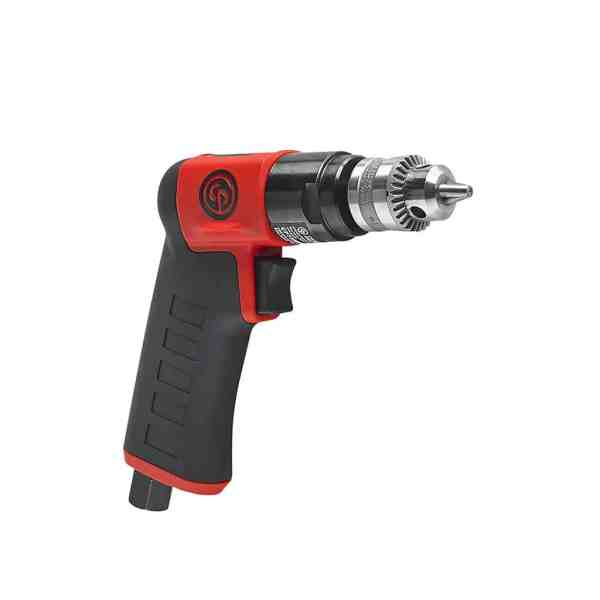

Chicago Pneumatic CP7300C 1/4″ DRILL KEY

Original price was: $280.94.Current price is: $214.92.

CP7300C – High Comfort & Lightweight

SKU: 8941073013 Categories: , Brand:

Description

CP7300C

CP7300C – High Comfort & Lightweight

Benefits

  • High Comfort
  • Ergonomics
  • Excellent Speed Control
  • High resistance to stalls
  • Great handling
  • Operator friendly
  • High durability
  • Supplied with high quality industrial Jacobs® chucks for longer use
  • – keyed Metal

    • Features

  • Composite housing with thermoplastic rubber handle grip
  • Wings on right & left sides to guide the forefinger
  • Large teasing trigger and progressive valve allowing more control to start holes
  • Low speed gear box
  • Flat back part for better pushing action while drilling and tapping
  • Handle exhaust allowing the air to flow away from the operator
  • Supplied with high quality industrial Jacobs® chucks for longer use
  • – keyed Metal
  • Excellent for drilling, honing, reaming and hole sawing

    •
    Model CP7300C
    Part number 8941073013
    Length 170 mm 6.7″
    Length 6.7″ 170 mm
    Net weight 0.64 kg 1.4 lb
    Net weight 1.4 lb 0.64 kg
    Height 145 mm 5.7″
    Height 5.7″ 145 mm
    Side to center 38 mm 1 1/2″
    Side to center 1 1/2″ 38 mm
    Average air consumption 5.3 cfm
    Average air consumption 2.5 l/s 5.3 cfm
    Free speed air consumption 21.2 cfm
    Free speed air consumption 10 l/s 21.2 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 85 db(A)
    Sound Power 96 db(A)
    Vibration <2.5 m/s²
    Chuck capacity 6 mm 1/4″
    Chuck capacity 1/4″ 6 mm
    Collet / spindle size 3/8-24
    Free speed 3300 rpm
    Power 230 W 0.3 hp
    Power 0.3 hp
    Stall torque 1.9 ft.lbs 2.6 Nm
    Stall torque 2.6 Nm 1.9 ft.lbs
    Spindle or chuck type 3/8-24
    Air inlet thread size 1/4″
