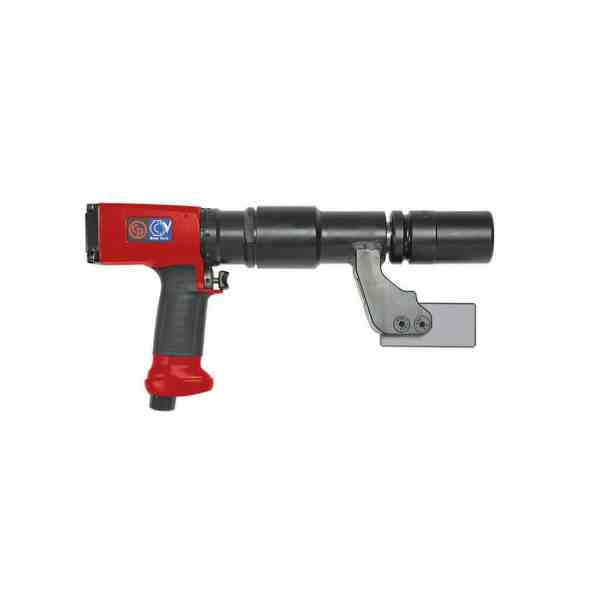

Chicago Pneumatic CP7600xB BLUE TORK
Chicago Pneumatic CP7600xB BLUE TORK
Chicago Pneumatic CP7600xB BLUE TORK - Image 2

Chicago Pneumatic CP7600xB BLUE TORK

Original price was: $6,396.47.Current price is: $4,253.65.

CP7600xB – Our most ergonomic & efficient solution for trucks and buses wheel maintenance

SKU: 8941076010 Categories: , , Brand:

Description

CP7600xB

CP7600xB – Our most ergonomic & efficient solution for trucks and buses wheel maintenance

Benefits

  • Selection Up to 4 calibrated tightening Torque
  • Accurate torque
  • Increased operator comfort for greater productivity
  • Fast rundown

    • Features

  • Air Shut-off clutch at preset torque
  • Integrated reaction bar standard with blade
  • Low noise level: 79 dB(A)
  • Almost no vibration : <2,5 m/s²

    •
    Model CP7600xB
    Part number 8941076010
    Length 328 mm 12.9″
    Length 12.9″ 328 mm
    Net weight 6 kg 13.2 lb
    Net weight 13.2 lb 6 kg
    Free speed air consumption 40 cfm
    Free speed air consumption 19 l/s 40 cfm
    Air inlet thread size 40 “
    Sound pressure 79 db(A)
    Sound Power 90 db(A)
    Vibration ISO ISO-28927-2
    European Directives 2006/42/EC
    European Standards EN ISO 11148-6:2012
    Reaction bar xB reaction bar
    Reversible Non reversible
    Torque preset # 1
    Square drive 1″
    Handle type Pistol
    Free speed 100 rpm
    Working Torque Range (fwd) 450 – 900 Nm 330 – 660
    Working Torque Range (fwd) 330 – 660 ft.lbs 450 – 900
    Working Torque Range (reverse) 450 – 900 Nm 330 – 660
    Working Torque Range (reverse) 330 – 660 ft.lbs 450 – 900
    Maximum Torque (fwd) 900 Nm 660 ft.lbs
    Maximum Torque (fwd) 660 ft.lbs 900 Nm
    Maximum Torque (reverse) 900 Nm 660 ft.lbs
    Maximum Torque (reverse) 660 ft.lbs 900 Nm
    Socket retainer Hole
