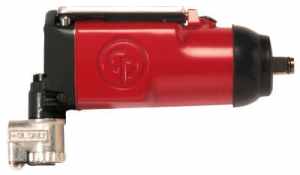

Chicago Pneumatic CP7722 3/8″ BUTTERFLY IMPACT WRENCH

Original price was: $372.63.Current price is: $285.07.

CP7722 – Compact for easier access

SKU: 8941077220 Categories: , Brand:

Description

CP7722

CP7722 – Compact for easier access

Benefits

  • Perfect for assembly/disassembly operation with limited access areas or vertical tightening
  • Comfort and smooth operation thanks to the clutch benefits
  • Excellent maneuverability with the 360° swivel air inlet
  • and light weight
  • Ideal for the general maintenance of small engines, compressors, generators, …
  • Features

  • 3/8″ butterfly impact wrench for general maintenance
  • Butterfly forward/reverse throttle
  • Rocking dog clutch for smooth operations and durability
  • 4 positive power settings
  • 360° air inlet swivel
  • Model CP7722
    Part number 8941077220
    Length 160 mm 6.3″
    Length 6.3″ 160 mm
    Net weight 1.0 kg 2.1 lb
    Net weight 2.1 lb 1.0 kg
    Average air consumption 3.2 cfm
    Average air consumption 1.5 l/s 3.2 cfm
    Actual air consumption 13 cfm
    Actual air consumption 6 l/s 13 cfm
    Air inlet thread size 1/4 “
    Sound pressure 97 db(A)
    Sound Power 108 db(A)
    Vibration ISO ISO-28927-2
    Vibration 4 m/s²
    Vibration uncertainty (K) 1.4 m/s²
    Handle type Butterfly
    Square drive 3/8″
    Working Torque Range (fwd) 7 – 88 Nm 5 – 65
    Working Torque Range (fwd) 5 – 65 ft.lbs 7 – 88
    Maximum Torque (reverse) 122 Nm 90 ft.lbs
    Maximum Torque (reverse) 90 ft.lbs 122 Nm
    Free speed 9500 rpm
    Blows per minute 1400
    Power/weight ratio 122 Nm/kg 42.9 ft.lb/lb
    Power/weight ratio 42.9 ft.lb/lb 122 Nm/kg
    Socket retainer Friction ring
    Clutch type Rocking dog clutch
    European Standards EN ISO 11148-6:2013
