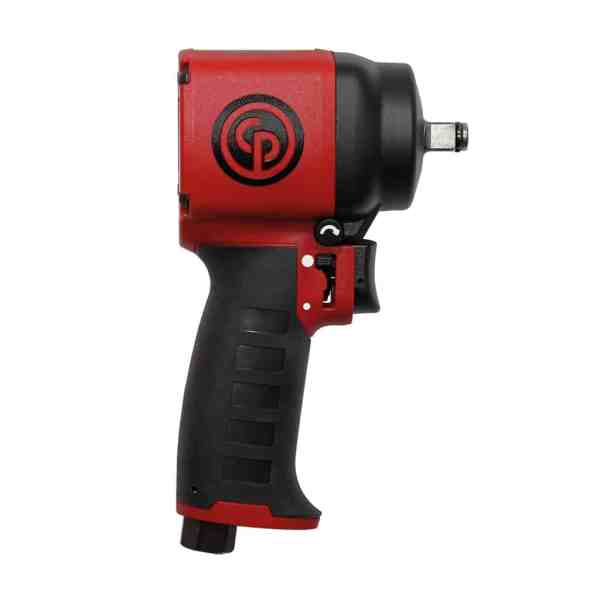

Chicago Pneumatic CP7731C 3/8" STUBBY IMPACT WRENCH-COMPOSITE
Chicago Pneumatic CP7731C 3/8" STUBBY IMPACT WRENCH-COMPOSITE

Chicago Pneumatic CP7731C 3/8″ STUBBY IMPACT WRENCH-COMPOSITE

Original price was: $406.43.Current price is: $310.92.

CP7731C – Ultra Compact & Powerful

SKU: 8941077311 Categories: , Brand:

Description

CP7731C

CP7731C – Ultra Compact & Powerful

Benefits

  • Best power to weight ratio: 346 ft-lbs / 470 Nm
  • Ultra compact
  • Easy to use
  • Durable

    • Features

  • 2.1 lbs. – 1.0 Kg
  • 346 ft.lbs – 470 Nm of maximum torque in reverse
  • 4 1/4 in – 107 mm length
  • Jumbo hammer mechanism
  • Steel motor
  • Aluminum clutch housing
  • Composite housing with curved handle with Thermo-Plastic Rubber injected
  • S2S: 1 hand Forward – Reverse operation
  • New power setting system: 1 hand-operation behind the trigger
  • 2 positions in reverse: max and lower torque
  • 2 positions in forward: max and low torque
  • Socket retainer ring
  • Full teasing trigger

    •
    Model CP7731C
    Part number 8941077311
    Length 110 mm 4.2″
    Length 4.2″ 110 mm
    Net weight 1 kg 1.0 lb
    Net weight 1.0 lb 1 kg
    Average air consumption 4.3 cfm
    Average air consumption 2 l/s 4.3 cfm
    Actual air consumption 17 cfm
    Actual air consumption 7.9 l/s 17 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 96 db(A)
    Sound Power 107 db(A)
    Vibration ISO ISO-28927-2
    Vibration 10.33 m/s²
    Vibration uncertainty (K) 1.38 m/s²
    Handle type Pistol
    Square drive 3/8″
    Working Torque Range (fwd) 83 – 392 Nm 61 – 289
    Working Torque Range (fwd) 61 – 289 ft.lbs 83 – 392
    Maximum Torque (reverse) 469 Nm 470 ft.lbs
    Maximum Torque (reverse) 470 ft.lbs 469 Nm
    Free speed 9000 rpm
    Blows per minute 1400
    Power/weight ratio 469 Nm/kg 346 ft.lb/lb
    Power/weight ratio 346 ft.lb/lb 469 Nm/kg
    Socket retainer Friction ring
    Clutch type Single dog clutch
    European Standards EN ISO 11148-6:2013
