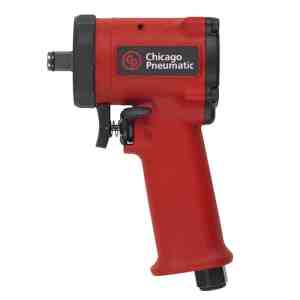

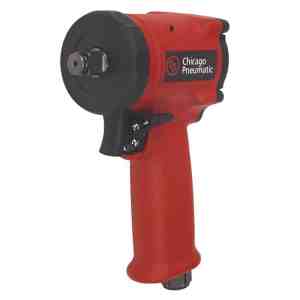

Chicago Pneumatic CP7732 1/2" STUBBY IMPACT WRENCH
Chicago Pneumatic CP7732 1/2" STUBBY IMPACT WRENCH
Chicago Pneumatic CP7732 1/2" STUBBY IMPACT WRENCH - Image 2
Chicago Pneumatic CP7732 1/2" STUBBY IMPACT WRENCH - Image 3
Chicago Pneumatic CP7732 1/2" STUBBY IMPACT WRENCH - Image 4
Chicago Pneumatic CP7732 1/2" STUBBY IMPACT WRENCH - Image 5
Chicago Pneumatic CP7732 1/2" STUBBY IMPACT WRENCH - Image 6

Chicago Pneumatic CP7732 1/2″ STUBBY IMPACT WRENCH

Original price was: $356.83.Current price is: $272.98.

CP7732 – Ultra Compact & Powerful

SKU: 8941077320 Categories: , Brand:

Description

CP7732

CP7732 – Ultra Compact & Powerful

Benefits

  • Best power to weight ratio: 450 ft-lbs / 610 Nm
  • Ultra compact
  • Easy to use
  • Durable

    • Features

  • Steel front cover & Aluminum body
  • One hand operation forward – reverse by either left or
  • right handed users
  • 3 setting positions
  • Only 4.4” long
  • Jumbo hammer

    •
    Model CP7732
    Part number 8941077320
    Length 112 mm 4.4″
    Length 4.4″ 112 mm
    Net weight 1.3 kg 2.9 lb
    Net weight 2.9 lb 1.3 kg
    Side to center 25 mm 1″
    Side to center 1″ 25 mm
    Average air consumption 5 cfm
    Average air consumption 2.4 l/s 5 cfm
    Actual air consumption 19.6 cfm
    Actual air consumption 9 l/s 19.6 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 95 db(A)
    Sound Power 106 db(A)
    Vibration ISO ISO-28927-2
    Vibration 12.1 m/s²
    Vibration uncertainty (K) 4.4 m/s²
    Handle type Pistol
    Square drive 1/2″
    Working Torque Range (fwd) 138 – 420 Nm 102 – 310
    Working Torque Range (fwd) 102 – 310 ft.lbs 138 – 420
    Maximum Torque (reverse) 610 Nm 450 ft.lbs
    Maximum Torque (reverse) 450 ft.lbs 610 Nm
    Free speed 9000 rpm
    Blows per minute 1400
    Power/weight ratio 469.2 Nm/kg 155.2 ft.lb/lb
    Power/weight ratio 155.2 ft.lb/lb 469.2 Nm/kg
    VST2 2.4
    Socket retainer Friction ring
    Clutch type Single dog clutch
    European Standards EN ISO 11148-6:2013
