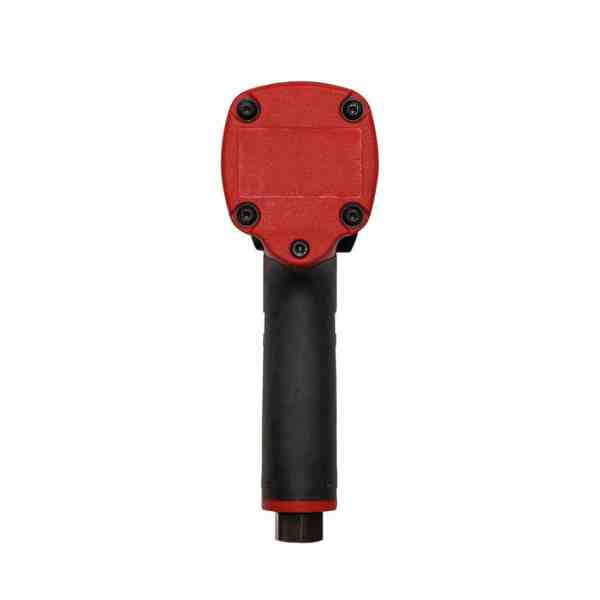

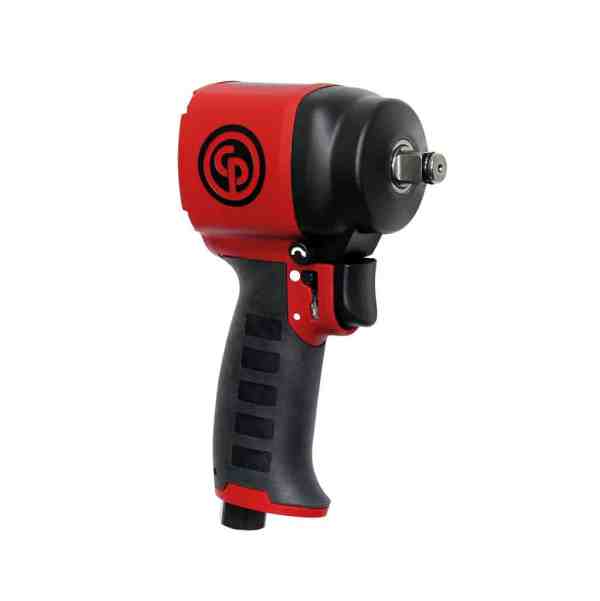

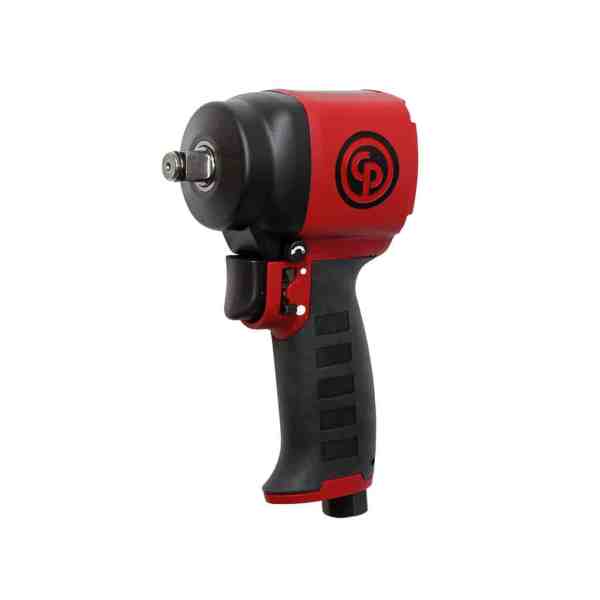

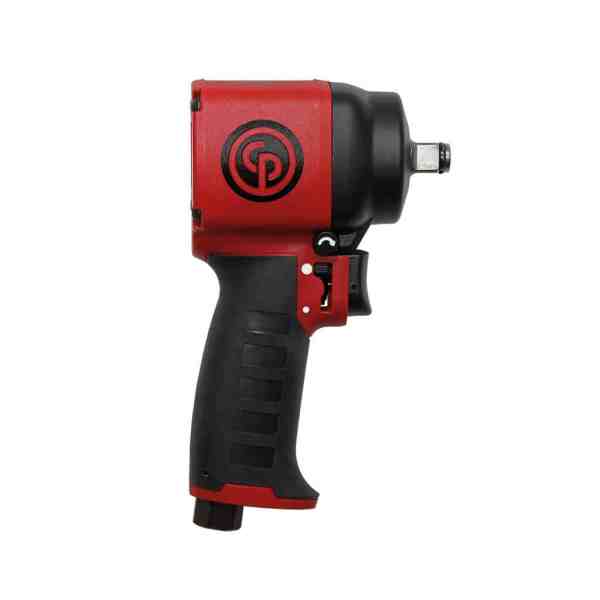

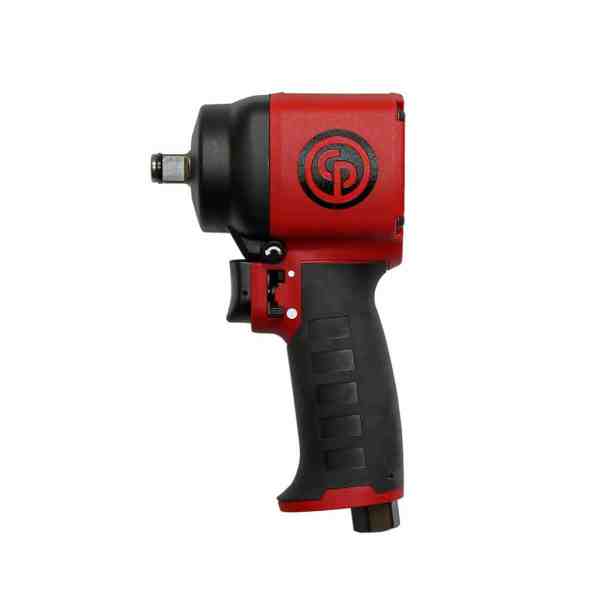

Chicago Pneumatic CP7732C 1/2" STUBBY IMPACT WRENCH-COMPOSITE HSG
Chicago Pneumatic CP7732C 1/2" STUBBY IMPACT WRENCH-COMPOSITE HSG
Chicago Pneumatic CP7732C 1/2" STUBBY IMPACT WRENCH-COMPOSITE HSG - Image 2
Chicago Pneumatic CP7732C 1/2" STUBBY IMPACT WRENCH-COMPOSITE HSG - Image 3
Chicago Pneumatic CP7732C 1/2" STUBBY IMPACT WRENCH-COMPOSITE HSG - Image 4
Chicago Pneumatic CP7732C 1/2" STUBBY IMPACT WRENCH-COMPOSITE HSG - Image 5
Chicago Pneumatic CP7732C 1/2" STUBBY IMPACT WRENCH-COMPOSITE HSG - Image 6

Chicago Pneumatic CP7732C 1/2″ STUBBY IMPACT WRENCH-COMPOSITE HSG

Original price was: $392.31.Current price is: $300.12.

CP7732C – Ultra Lightweight, Easy operation and Compact

SKU: 8941077321 Categories: , Brand:

Description

CP7732C

CP7732C – Ultra Lightweight, Easy operation and Compact

Benefits

  • Ultra Lightweight
  • Easy operation
  • Compact
  • Powerful
  • Durable

    • Features

  • 2.1 lbs. – 1.0 Kg
  • 460 ft.lbs – 625 Nm of maximum torque in reverse
  • 4 1/4 in – 108 mm length
  • Jumbo hammer mechanism
  • Steel motor
  • Aluminum clutch housing
  • Composite housing with curved handle with Thermo-Plastic Rubber injected
  • S2S: 1 hand Forward – Reverse operation
  • New power setting system: 1 hand-operation behind the trigger
  • 2 positions in reverse: max and lower torque
  • 2 positions in forward: max and low torque
  • Socket retainer ring
  • Full teasing trigger

    •
    Model CP7732C
    Part number 8941077321
    Length 108 mm 4.3″
    Length 4.3″ 108 mm
    Net weight 1 kg 2.2 lb
    Net weight 2.2 lb 1 kg
    Side to center 32 mm 1.26″
    Side to center 1.26″ 32 mm
    Average air consumption 5 1/2 cfm
    Average air consumption 2.6 l/s 5 1/2 cfm
    Actual air consumption 22 cfm
    Actual air consumption 10.2 l/s 22 cfm
    Free speed air consumption 14.6 l/s
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 95.5 db(A)
    Sound Power 106.5 db(A)
    Vibration ISO ISO-28927-2
    Vibration 10.8 m/s²
    Vibration uncertainty (K) 1.42 m/s²
    Handle type Pistol
    Square drive 1/2″
    Working Torque Range (fwd) 70 – 387 Nm 52 – 285
    Working Torque Range (fwd) 52 – 285  ft.lbs 70 – 387
    Maximum Torque (reverse) 625 Nm 460 ft.lbs
    Maximum Torque (reverse) 460 ft.lbs 625 Nm
    Free speed 9410 rpm
    Blows per minute 1400
    Socket retainer Friction ring
    Clutch type Jumbo
    European Standards EN ISO 11148-6:2013
