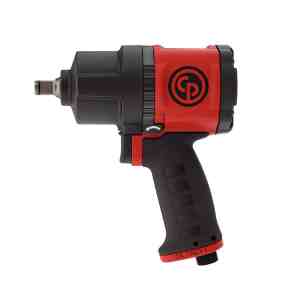

Chicago Pneumatic CP7748 1/2" IMPACT WRENCH
Chicago Pneumatic CP7748 1/2" IMPACT WRENCH
Chicago Pneumatic CP7748 1/2" IMPACT WRENCH - Image 2
Chicago Pneumatic CP7748 1/2" IMPACT WRENCH - Image 3
Chicago Pneumatic CP7748 1/2" IMPACT WRENCH - Image 4
Chicago Pneumatic CP7748 1/2" IMPACT WRENCH - Image 5
Chicago Pneumatic CP7748 1/2" IMPACT WRENCH - Image 6

Chicago Pneumatic CP7748 1/2″ IMPACT WRENCH

Original price was: $451.67.Current price is: $345.53.

CP7748 – Power, comfort & durability in your hands!

SKU: 8941077481 Categories: , Brand:

Description

CP7748

CP7748 – Power, comfort & durability in your hands!

Benefits

  • Powerful
  • Ergonomic
  • Compact
  • Durable
  • Lightweight
  • Recognizable
  • Comfortable

    • Features

  • 960 ft.lbs / 1,300 Nm of max torque in reverse position
  • One-hand reverse system (Ring system)
  • 6.89 in. / 175 mm of length
  • Hard anodized end plates / Hard chromium aluminum cylinder / Twin hammer mechanism
  • 4.4 lbs – 2.0 kg thanks to its composite motor housing
  • Name laser engraved at the back of the tool
  • Curved handle with rubber material
  • Resistant to most chemicals used in workshops
  • Rubber grip at the back
  • Does not slip when it is in operator’s hand even if it is dirty or oily

    •
    Model CP7748
    Part number 8941077481
    Length 175 mm 6.89″
    Length 6.89″ 175 mm
    Net weight 2 kg 4.4 lb
    Net weight 4.4 lb 2 kg
    Height 200 mm 7.87″
    Height 7.87″ 200 mm
    Width 78 mm 3″
    Width 3″ 78 mm
    Side to center 39 mm 1 1/2″
    Side to center 1 1/2″ 39 mm
    Average air consumption 6.2 cfm
    Average air consumption 3 l/s 6.2 cfm
    Actual air consumption 25 cfm
    Actual air consumption 12 l/s 25 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 94.3 db(A)
    Sound Power 105.3 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO 28927-2
    Vibration 12 m/s²
    Vibration uncertainty (K) 4.5 m/s²
    Handle type Pistol
    Square drive 1/2″
    Working Torque Range (fwd) 95 – 750 Nm 70 – 555
    Working Torque Range (fwd) 70 – 555 ft.lbs 95 – 750
    Maximum Torque (reverse) 1300 Nm 960 ft.lbs
    Maximum Torque (reverse) 960 ft.lbs 1300 Nm
    Free speed 7000 rpm
    Blows per minute 1350
    Socket retainer Friction ring
    Clutch type Twin Hammer
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2013
