Description

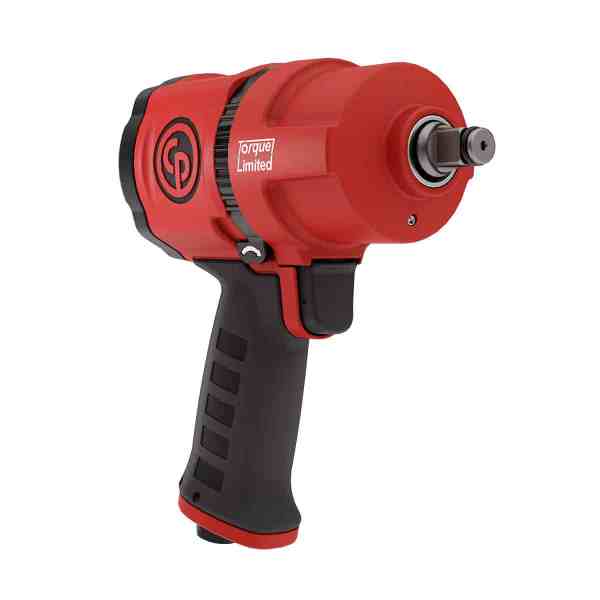

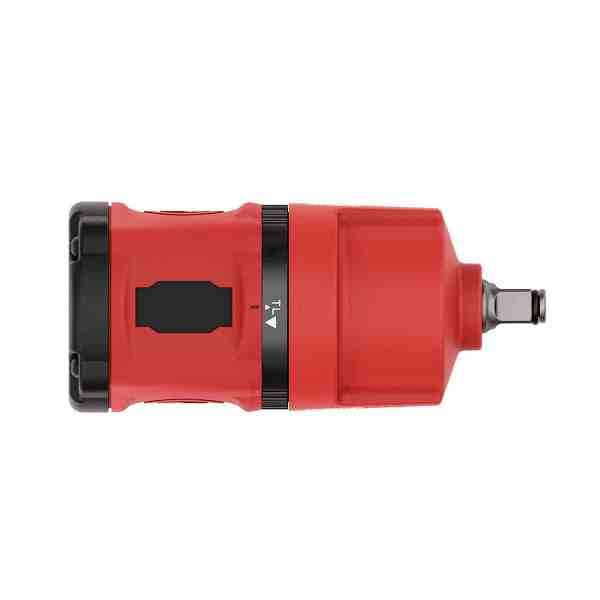

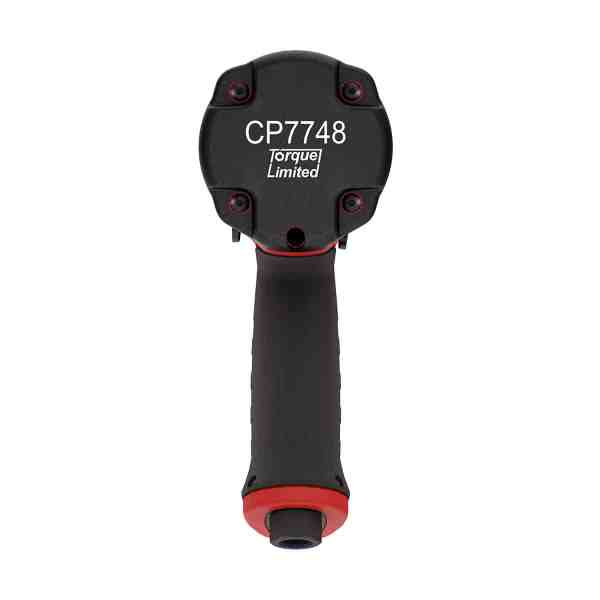

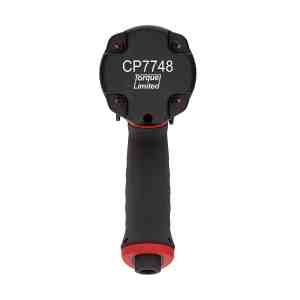

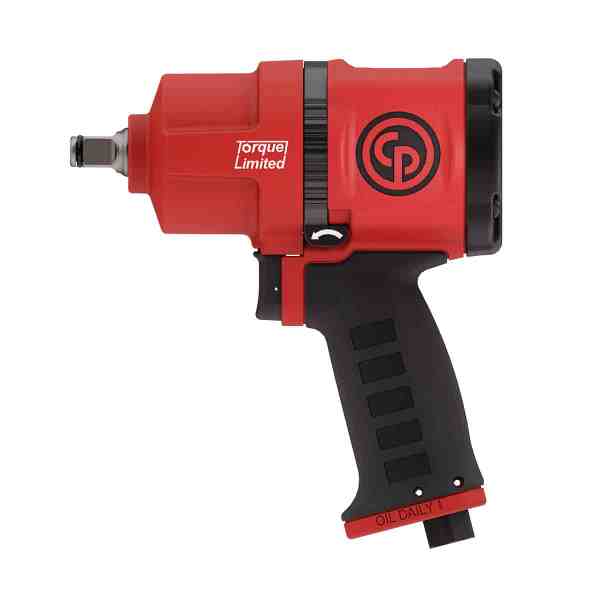

CP7748TL

CP7748TL – No more overtightening!*

Benefits

Torque limited (in forward)

Full powerful (in reverse)

Ergonomic

Compact

Durable

Lightweight

Comfortable

Features

1 position torque limited in forward around 66 ft.lbs / 90 Nm

960 ft.lbs / 1,300 Nm of maximum torque

One-hand reverse system (Ring system)

6.89 in. / 175 mm of length

Hard anodized end plates

Hard chromium aluminum cylinder

Twin hammer mechanism

4.4 lbs – 2.0 kg thanks to its composite motor housing

Curved handle with rubber material

Resistant to most chemicals used in workshops

Rubber grip at the back

Does not slip when it is in operator’s hand even if it is dirty or oily

Model	CP7748TL
Part number	8941077487
Length	175 mm	6.89″
Length	6.89″	175 mm
Net weight	2 kg	4.4 lb
Net weight	4.4 lb	2 kg
Height	200 mm	7.87″
Height	7.87″	200 mm
Width	78 mm	3″
Width	3″	78 mm
Side to center	39 mm	1 1/2″
Side to center	1 1/2″	39 mm
Dimension A	65.4 mm	2.57″
Dimension A	2.57″	65.4 mm
Dimension B	69.8 mm	2 3/4″
Dimension B	2 3/4″	69.8 mm
Average air consumption	6.2 cfm
Average air consumption	3 l/s	6.2 cfm
Actual air consumption	25 cfm
Actual air consumption	12 l/s	25 cfm
Air inlet thread size	1/4 “
Min. hose size	10 mm	3/8″
Min. hose size	3/8″	10 mm
Sound pressure	94.3 db(A)
Sound Power	105.3 db(A)
European Sound standard	ISO 15744
Sound uncertainty	3 db(A)
Vibration ISO	ISO 28927-2
Vibration	12 m/s²
Vibration uncertainty (K)	4.5 m/s²
Handle type	Pistol
Square drive	1/2″
Working Torque Range (fwd)	90 – 140 Nm	66 – 103
Working Torque Range (fwd)	66 – 103 ft.lbs	90 – 140
Maximum Torque (reverse)	1300 Nm	960 ft.lbs
Maximum Torque (reverse)	960 ft.lbs	1300 Nm
Free speed	7000 rpm
Blows per minute	1350
Socket retainer	Friction ring
Clutch type	Twin Hammer
European Directives	2006/42/EC (17/05/2006)
European Standards	EN ISO 11148-6:2013
Vibration (fwd)	7.57 m/s²
Free speed (fwd)	2400 rpm

Additional information

Brand	Chicago Pneumatic Tools
