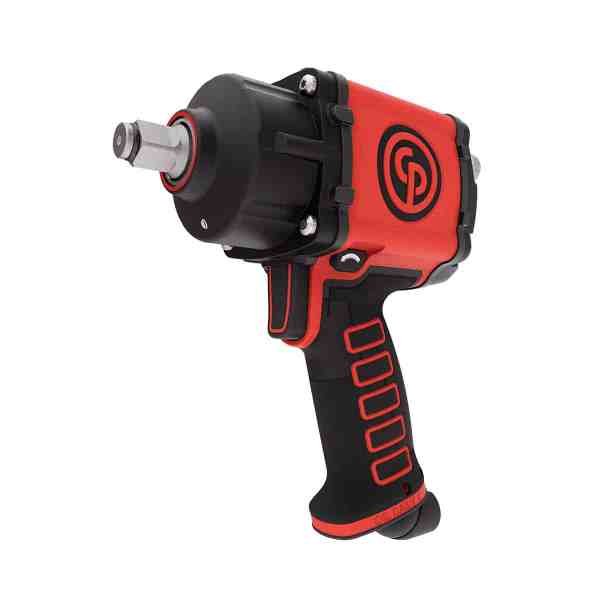

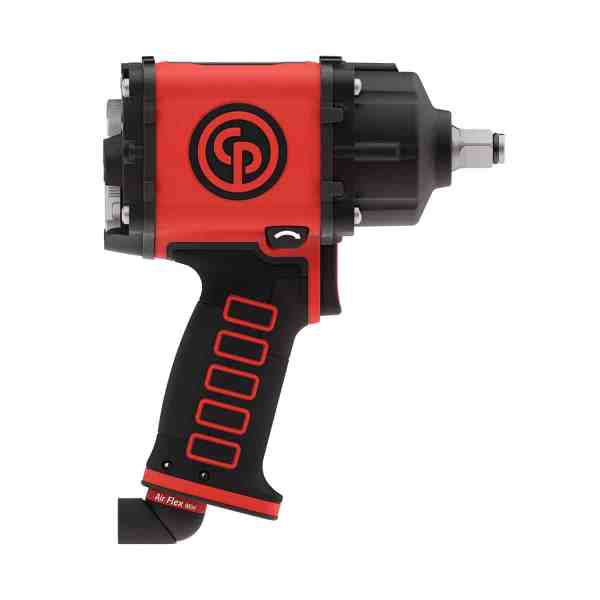

Chicago Pneumatic CP7755 1/2" IMPACT WRENCH MINI AIR FLEX
Chicago Pneumatic CP7755 1/2" IMPACT WRENCH MINI AIR FLEX
Chicago Pneumatic CP7755 1/2" IMPACT WRENCH MINI AIR FLEX - Image 2
Chicago Pneumatic CP7755 1/2" IMPACT WRENCH MINI AIR FLEX - Image 3
Chicago Pneumatic CP7755 1/2" IMPACT WRENCH MINI AIR FLEX - Image 4
Chicago Pneumatic CP7755 1/2" IMPACT WRENCH MINI AIR FLEX - Image 5
Chicago Pneumatic CP7755 1/2" IMPACT WRENCH MINI AIR FLEX - Image 6

Chicago Pneumatic CP7755 1/2″ IMPACT WRENCH MINI AIR FLEX

Original price was: $795.30.Current price is: $608.41.

CP7755 Air Flex Mini – No more guessing, get the power you need!*

SKU: 8941077551 Categories: , Brand:

Description

CP7755 Flex

CP7755 Air Flex Mini – No more guessing, get the power you need!*

Benefits

  • Complete power control
  • High accessibility / maneuvrability
  • Ergonomic
  • Lightweight
  • High durability
  • High comfort
  • Improved safety

    • Features

  • The best and the most adjustable power control for pneumatic tools
  • 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 and 100% of maximum torque
  • Air Flex Mini integrated (Patented)
  • Composite motor housing (4.25 lbs / 1.93 kg)
  • Twin hammer mechanism
  • Bumpers all over the tool
  • Bi-material and bi-color handle and trigger
  • Friction ring socket retainer
  • *Final torque must be applied manually using a calibrated torque wrench (please refer to the operator’s manual)

    •
    Model CP7755 Air Flex Mini
    Part number 8941077551
    Free speed 7700 rpm
    Length 169 mm 6.65″
    Length 6.65″ 169 mm
    Net weight 1.93 kg 4.25 lb
    Net weight 4.25 lb 1.93 kg
    Height 205 mm 8.1″
    Height 8.1″ 205 mm
    Width 76 mm 3″
    Width 3″ 76 mm
    Side to center 38 mm 1 1/2″
    Side to center 1 1/2″ 38 mm
    Dimension A 63.5 mm 2 1/2″
    Dimension A 2 1/2″ 63.5 mm
    Dimension B 55.4 mm 2.18″
    Dimension B 2.18″ 55.4 mm
    Actual air consumption 3.9 cfm 108 l/mn
    Actual air consumption 1.8 l/s 3.9 cfm
    Actual air consumption 108 l/mn 3.9 cfm
    Free speed air consumption 5.6 cfm 156 l/mn
    Free speed air consumption 2.6 l/s 5.6 cfm
    Free speed air consumption 156 l/mn 5.6 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 94 db(A)
    Sound Power 105 db(A)
    European Sound standard EN ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-2
    Vibration 8.5 m/s²
    Vibration uncertainty (K) 3.4 m/s²
    Handle type Pistol
    Square drive 1/2″ 12.7 mm
    Working Torque Range (fwd) 80 – 575 Nm 59 – 425
    Working Torque Range (fwd) 59 – 425 ft.lbs 80 – 575
    Maximum Torque (reverse) 1300 Nm 960 ft.lbs
    Maximum Torque (reverse) 960 ft.lbs 1300 Nm
    Blows per minute 1200
    Power/weight ratio 673 Nm/kg 225 ft.lb/lb
    Power/weight ratio 225 ft.lb/lb 673 Nm/kg
    Socket retainer Friction ring
    Clutch type Twin hammer
    Maximum Torque (fwd) 1080 Nm 796 ft.lbs
    Square drive 12.7 mm 1/2″
    Maximum Torque (fwd) 796 ft.lbs 1080 Nm
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2013
