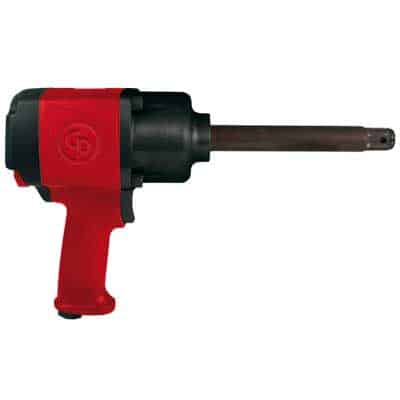

Chicago Pneumatic CP7763-6 3/4" IMPACT WRENCH - 6" EXT
Chicago Pneumatic CP7763-6 3/4" IMPACT WRENCH - 6" EXT

Chicago Pneumatic CP7763-6 3/4″ IMPACT WRENCH – 6″ EXT

Original price was: $1,115.95.Current price is: $853.71.

CP7763-6 – Compact & high torque for Light Trucks wheels

SKU: 8941077636 Categories: , Brand:

Description

CP7763-6

CP7763-6 – Compact & high torque for Light Trucks wheels

Benefits

  • Powerful motor and durable clutch
  • Operator comfort
  • Ideal for spring work, pinion nut, tractor pad removal, truck tire work, and major engine teardowns

    • Features

  • 3/4″ impact wrench
  • with 6″ extended anvil (ring socket retainer)
  • Twin hammer clutch
  • High power: 1,200 ft.lbs (1,627 Nm)
  • Combined power regulator with forward/reverse

    •
    Model CP7763-6
    Part number 8941077636
    Length 381 mm 15″
    Length 15″ 381 mm
    Net weight 6.28 kg 13.85 lb
    Net weight 13.85 lb 6.28 kg
    Side to center 45 mm 1.8″
    Side to center 1.8″ 45 mm
    Average air consumption 7.5 cfm
    Average air consumption 3.5 l/s 7.5 cfm
    Actual air consumption 30 cfm
    Actual air consumption 14.2 l/s 30 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 96 db(A)
    Sound Power 107 db(A)
    Vibration ISO ISO-28927-2
    Vibration 10.4 m/s²
    Vibration uncertainty (K) 4.2 m/s²
    Handle type Pistol
    Square drive 3/4″
    Working Torque Range (fwd) 136 – 1,288 Nm 100 – 950
    Working Torque Range (fwd) 100 – 950 ft.lbs 136 – 1,288
    Maximum Torque (reverse) 1630 Nm 1200 ft.lbs
    Maximum Torque (reverse) 1200 ft.lbs 1630 Nm
    Free speed 6300 rpm
    Blows per minute 900
    Power/weight ratio 259.6 Nm/kg 86.6 ft.lb/lb
    Power/weight ratio 86.6 ft.lb/lb 259.6 Nm/kg
    VST2 48
    Socket retainer Dual (hole+friction)
    Clutch type Twin hammer
    European Standards EN ISO 11148-6:2013
