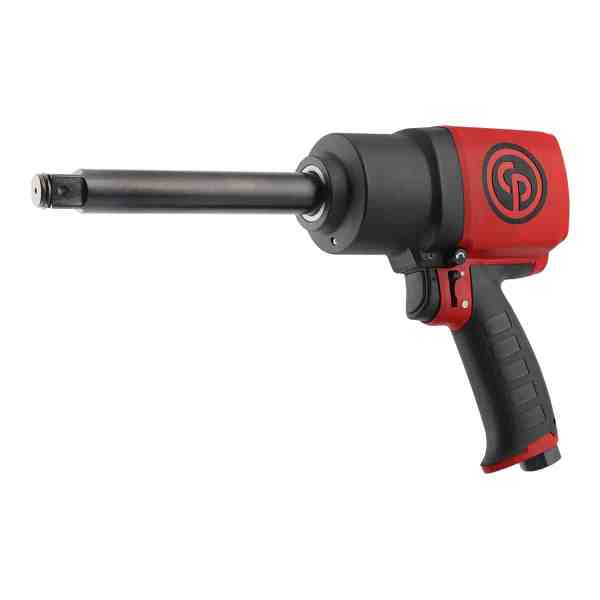

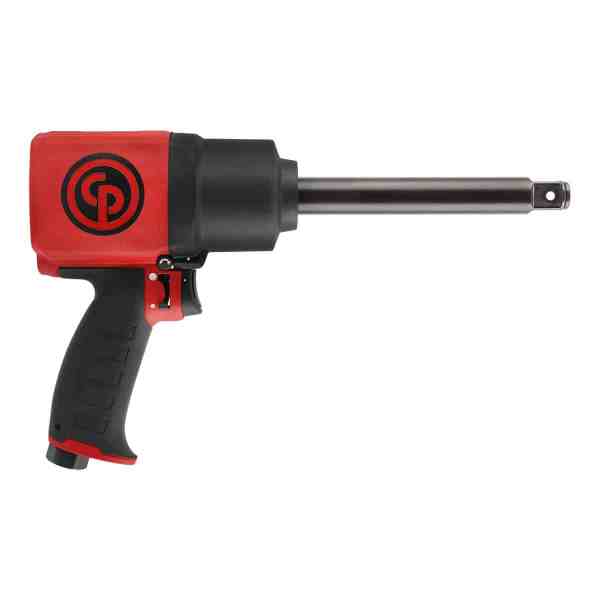

Chicago Pneumatic CP7769-6 IMPACT WRENCH
Chicago Pneumatic CP7769-6 IMPACT WRENCH
Chicago Pneumatic CP7769-6 IMPACT WRENCH - Image 2
Chicago Pneumatic CP7769-6 IMPACT WRENCH - Image 3
Chicago Pneumatic CP7769-6 IMPACT WRENCH - Image 4

Chicago Pneumatic CP7769-6 IMPACT WRENCH

Original price was: $1,264.29.Current price is: $967.19.

CP7769-6 – The unrivaled ¾” impact wrench (with 6” anvil).

SKU: 8941077697 Categories: , Brand:

Description

CP7769-6

CP7769-6 – The unrivaled ¾” impact wrench (with 6” anvil).

Benefits

  • Compact
  • Ergonomic
  • Powerful
  • Lightweight
  • High durability
  • Flexible
  • More secured

    • Features

  • Length = 13.8 in. / 350 mm
  • All controls within reach
  • Variable speed trigger
  • One-hand power adjustment
  • One-hand reverse system
  • 1440 ft.lbs / 1950 Nm of maximum torque
  • Composite motor housing
  • Twin hammer mechanism
  • 360° swivel air inlet
  • Socket retainer ring combined with hole retainer

    •
    Model CP7769-6
    Part number 8941077697
    Length 350 mm 13.8″
    Length 13.8″ 350 mm
    Net weight 3.75 kg 8.3 lb
    Net weight 8.3 lb 3.75 kg
    Height 220 mm 8.7″
    Height 8.7″ 220 mm
    Width 84 mm 3.3″
    Width 3.3″ 84 mm
    Average air consumption 9.8 cfm
    Average air consumption 4.7 l/s 9.8 cfm
    Actual air consumption 39.2 cfm
    Actual air consumption 18.6 l/s 39.2 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 96.8 db(A)
    Sound Power 107.8 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-2
    Vibration 12.97 m/s²
    Vibration uncertainty (K) 1.5 m/s²
    Handle type Pistol
    Square drive 3/4″
    Working Torque Range (fwd) 407 – 1464 Nm 300 – 1080
    Working Torque Range (fwd) 300 – 1080 ft.lbs 407 – 1464
    Maximum Torque (reverse) 1950 Nm 1440 ft.lbs
    Maximum Torque (reverse) 1440 ft.lbs 1950 Nm
    Free speed 6500 rpm
    Blows per minute 1200
    Power/weight ratio 520 Nm/kg 173.49 ft.lb/lb
    Power/weight ratio 173.49 ft.lb/lb 520 Nm/kg
    Socket retainer Dual (hole+friction)
    Clutch type Twin hammer
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2013
