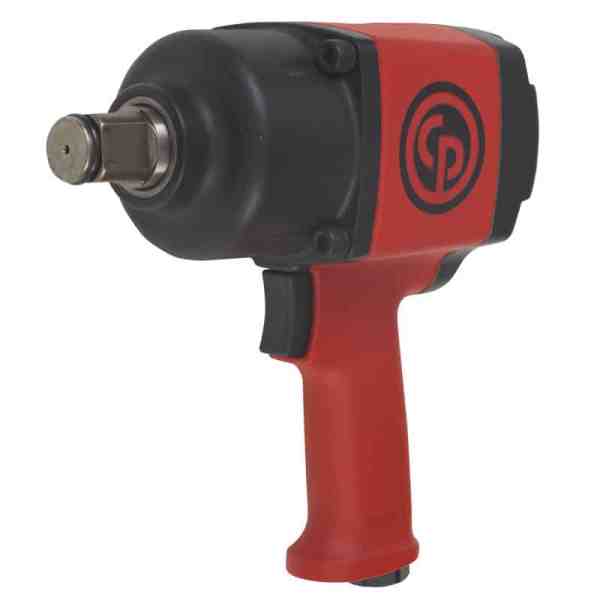

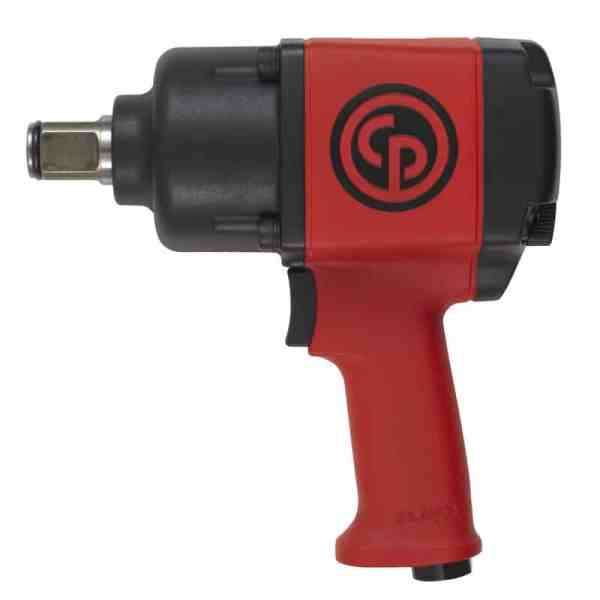

Chicago Pneumatic CP7773 1" IMPACT WRENCH
Chicago Pneumatic CP7773 1" IMPACT WRENCH
Chicago Pneumatic CP7773 1" IMPACT WRENCH - Image 2
Chicago Pneumatic CP7773 1" IMPACT WRENCH - Image 3
Chicago Pneumatic CP7773 1" IMPACT WRENCH - Image 4

Chicago Pneumatic CP7773 1″ IMPACT WRENCH

Original price was: $1,036.42.Current price is: $792.86.

CP7773 – Compact & Powerful

SKU: 8941077730 Categories: , Brand:

Description

CP7773

CP7773 – Compact & Powerful

Benefits

  • Ideal for General Maintenance applications
  • Powerful motor and durable clutch
  • Operator comfort due to reduced noise level

    • Features

  • 1″ pistol impact wrench with ring retainer
  • Twin hammer clutch
  • High power: 1200 ft.lbs (1627 Nm)
  • Compact size with only 12,1 lbs (5.25 kg)
  • Combined power regulator with forward/reverse

    •
    Model CP7773
    Part number 8941077730
    Length 234 mm 9.2″
    Length 9.2″ 234 mm
    Net weight 5.5 kg 12.05 lb
    Net weight 12.05 lb 5 1/2 kg
    Side to center 45 mm 1.8″
    Side to center 1.8″ 45 mm
    Average air consumption 7.5 cfm
    Average air consumption 3.5 l/s 7.5 cfm
    Actual air consumption 30 cfm
    Actual air consumption 14.2 l/s 30 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 96 db(A)
    Sound Power 107 db(A)
    Vibration ISO ISO-28927-2
    Vibration 10.4 m/s²
    Vibration uncertainty (K) 4.2 m/s²
    Handle type Pistol
    Square drive 1″
    Working Torque Range (fwd) 136 – 1,288 Nm 100 – 950
    Working Torque Range (fwd) 100 – 950 ft.lbs 136 – 1,288
    Maximum Torque (reverse) 1630 Nm 1200 ft.lbs
    Maximum Torque (reverse) 1200 ft.lbs 1630 Nm
    Free speed 6300 rpm
    Blows per minute 900
    Power/weight ratio 296.4 Nm/kg 99.6 ft.lb/lb
    Power/weight ratio 99.6 ft.lb/lb 296.4 Nm/kg
    VST2 48
    Socket retainer Friction ring
    Clutch type Twin hammer
    European Standards EN ISO 11148-6:2013
