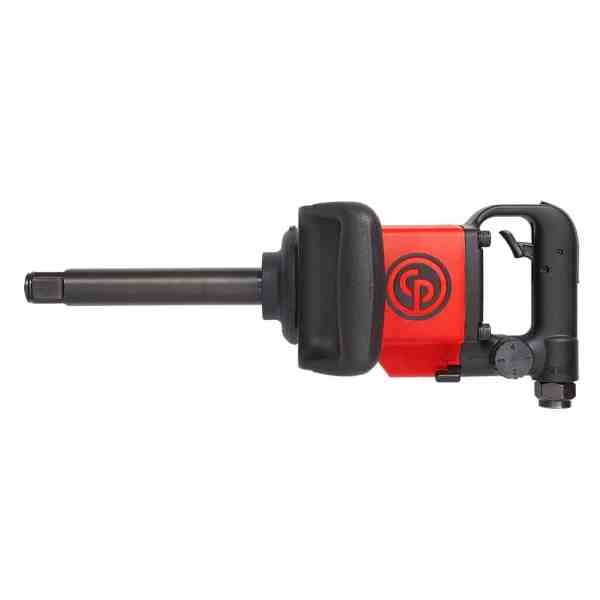

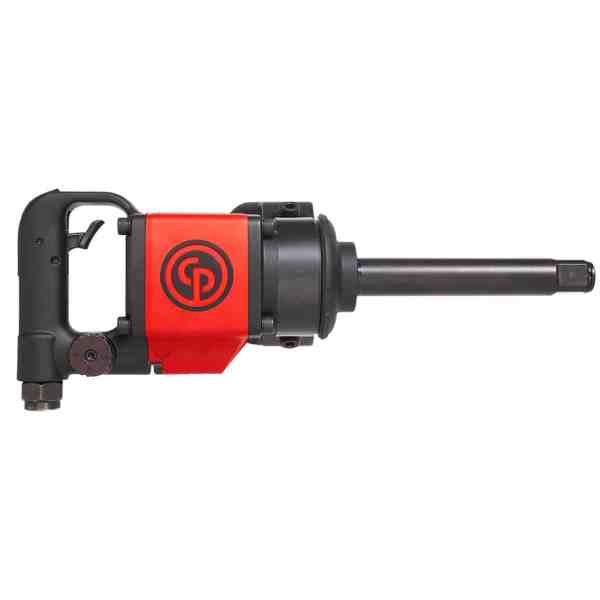

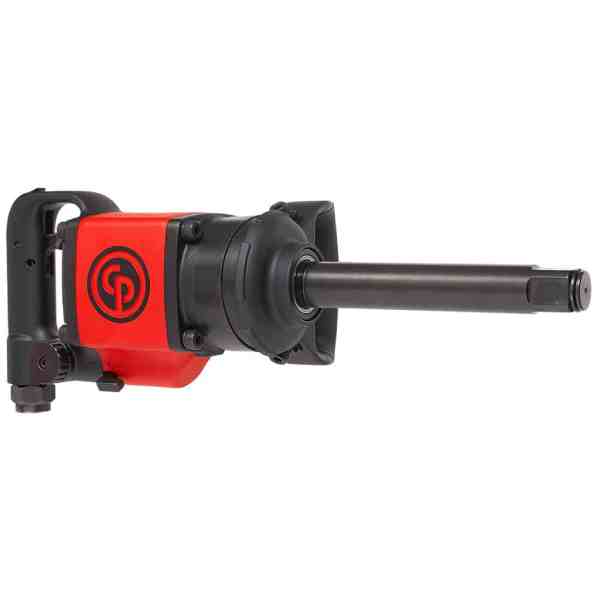

Chicago Pneumatic CP7773D-6 1" IMPACT WRENCH - D HANDLE
6" EXT
Chicago Pneumatic CP7773D-6 1" IMPACT WRENCH - D HANDLE
6" EXT
Chicago Pneumatic CP7773D-6 1" IMPACT WRENCH - D HANDLE, 6" EXT - Image 3
Chicago Pneumatic CP7773D-6 1" IMPACT WRENCH - D HANDLE, 6" EXT - Image 4

Chicago Pneumatic CP7773D-6 1″ IMPACT WRENCH – D HANDLE, 6″ EXT

Original price was: $1,143.82.Current price is: $875.02.

CP7773D-6 – Lightweight, Powerful, Easy to use

SKU: 8941077737 Categories: , Brand:

Description

CP7773D-6

CP7773D-6 – Lightweight, Powerful, Easy to use

Benefits

  • Great Performance
  • Lightweight
  • Comfort
  • Easy to Use
  • Rugged and Robust
  • Easy Operation

    • Features

  • 16.3 lbs. – 7.4 kg
  • 1300 ft.lbs. / 1760 Nm in reverse
  • Twin hammer mechanism
  • Steel motor
  • Intuitive Forward / Reverse lever & power regulator on both sides
  • 4 position power settings on both sides
  • Side handle with soft touch grip
  • Down exhaust
  • Aluminum housing
  • Composite cover on the clutch housing
  • Socket retainer ring

    •
    Model CP7773D-6
    Part number 8941077737
    Length 445 mm 17.5″
    Length 17.5″ 445 mm
    Net weight 7.4 kg 16.3 lb
    Net weight 16.3 lb 7.4 kg
    Side to center 45 mm 1.8″
    Side to center 1.8″ 45 mm
    Actual air consumption 41 cfm
    Actual air consumption 19.3 l/s 41 cfm
    Free speed air consumption 26.4 l/s
    Air inlet thread size 1/2 “
    Min. hose size 13 mm 3/8″
    Min. hose size 3/8″ 13 mm
    Sound pressure 98 db(A)
    Sound Power 109 db(A)
    Vibration ISO ISO-28927-2
    Vibration 12 m/s²
    Vibration uncertainty (K) 3.3 m/s²
    Handle type D-Handle Inside Trigger
    Square drive 1″
    Working Torque Range (fwd) 340 – 1450 Nm 250 – 1070
    Working Torque Range (fwd) 250 – 1070 ft.lbs 340 – 1450
    Maximum Torque (reverse) 1760 Nm 1300 ft.lbs
    Maximum Torque (reverse) 1300 ft.lbs 1760 Nm
    Free speed 6600 rpm
    Socket retainer Friction ring
    Clutch type Twin hammer
    European Standards EN ISO 11148-6:2013
