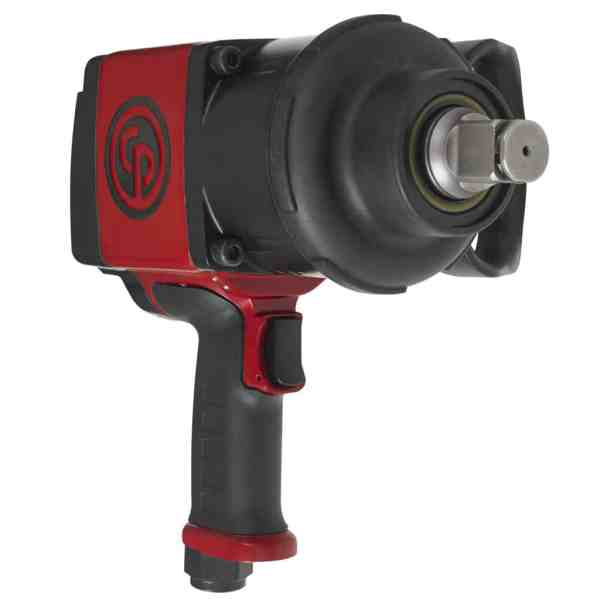

Chicago Pneumatic CP7776 1" IMPACT WRENCH
Chicago Pneumatic CP7776 1" IMPACT WRENCH
Chicago Pneumatic CP7776 1" IMPACT WRENCH - Image 2

Chicago Pneumatic CP7776 1″ IMPACT WRENCH

Original price was: $1,544.94.Current price is: $1,181.88.

CP7776 – High Torque & Comfort

SKU: 8941077760 Categories: , Brand:

Description

CP7776

CP7776 – High Torque & Comfort

Benefits

  • High Torque & Powerful
  • Durable
  • Comfort & Great Handling
  • Useful
  • Safe

    • Features

  • 2400 Nm – 1770 ft.lbs maximum torque in reverse
  • Pin less closed reinforced rocking dog clutch mechanism
  • TPR handle & side handle – being able to rotate in 4 positions
  • Regulator integrated in forward/reverse knob with 3 positions power setting in both directions
  • Rubber bumper protecting both applications & tool (included)
  • Socket retainer ring combined with hole retainer
  • Handle being able to rotate in 4 positions for ultimate operator comfort
  • Angled down exhaust blows air away from work place

    •
    Model CP7776
    Part number 8941077760
    Length 289 mm 11.4″
    Length 11.4″ 289 mm
    Net weight 11.2 kg 24.7 lb
    Net weight 24.7 lb 11.2 kg
    Side to center 109 mm 4.3″
    Side to center 4.3″ 109 mm
    Average air consumption 8.2 cfm
    Average air consumption 3.9 l/s 8.2 cfm
    Actual air consumption 33 cfm
    Actual air consumption 15.6 l/s 33 cfm
    Air inlet thread size 1/2 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 93 db(A)
    Sound Power 104 db(A)
    Vibration ISO ISO-28927-2
    Vibration 8.7 m/s²
    Vibration uncertainty (K) 2.8 m/s²
    Handle type Pistol
    Square drive 1″
    Working Torque Range (fwd) 955 – 2073 Nm – 704 – 1530
    Working Torque Range (fwd) – 704 – 1530 ft.lbs 955 – 2073
    Maximum Torque (reverse) 2400 Nm 1770 ft.lbs
    Maximum Torque (reverse) 1770 ft.lbs 2400 Nm
    Free speed 5000 rpm
    Power/weight ratio 214.3 Nm/kg 71.7 ft.lb/lb
    Power/weight ratio 71.7 ft.lb/lb 214.3 Nm/kg
    VST2 271
    Socket retainer Dual (hole+friction)
    Clutch type Pin less closed rocking dog
    Bolt size M32
    European Standards EN ISO 11148-6:2013
