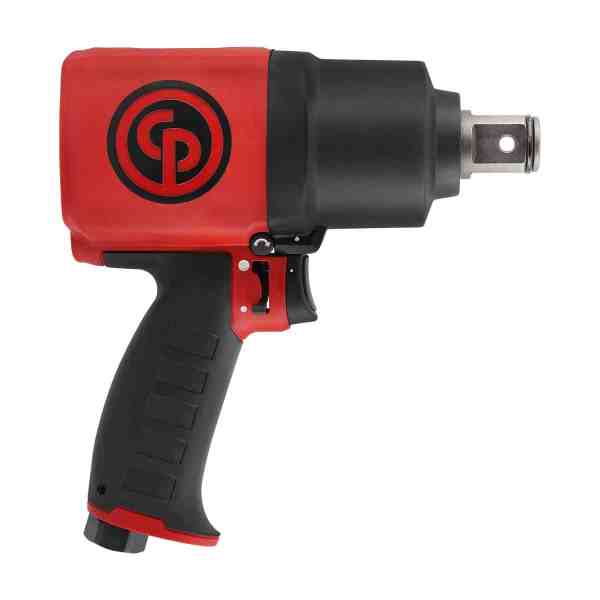

Chicago Pneumatic CP7779 1’’ IMPACT WRENCH

Original price was: $1,262.87.Current price is: $966.10.

CP7779 – The unrivaled 1” pistol impact wrench.

SKU: 8941077791 Categories: , Brand:

Description

CP7779

CP7779 – The unrivaled 1” pistol impact wrench.

Benefits

  • Compact
  • Ergonomic
  • Powerful
  • Lightweight
  • High durability
  • Flexible
  • More secured
  • Features

  • Length = 8.1 in. / 205 mm
  • All controls within reach
  • Variable speed trigger
  • One-hand power adjustment
  • One-hand reverse system
  • 1440 ft.lbs / 1950 Nm of maximum torque
  • Composite motor housing
  • Twin hammer mechanism
  • 360° swivel air inlet
  • Socket retainer ring combined with hole retainer
  • Model CP7779
    Part number 8941077791
    Length 205 mm 8.1″
    Length 8.1″ 205 mm
    Net weight 3.3 kg 7.2 lb
    Net weight 7.2 lb 3.3 kg
    Height 220 mm 8.7″
    Height 8.7″ 220 mm
    Width 84 mm 3.3″
    Width 3.3″ 84 mm
    Average air consumption 10.1 cfm
    Average air consumption 4.8 l/s 10.1 cfm
    Actual air consumption 40.3 cfm
    Actual air consumption 19.1 l/s 40.3 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 96.8 db(A)
    Sound Power 107.8 db(A)
    European Sound standard ISO 15744
    Vibration ISO ISO-28927-2
    Vibration 12.97 m/s²
    Vibration uncertainty (K) 1.5 m/s²
    Handle type Pistol
    Square drive 1″
    Working Torque Range (fwd) 407 – 1464 Nm 300 – 1080
    Working Torque Range (fwd) 300 – 1080 ft.lbs 407 – 1464
    Maximum Torque (reverse) 1950 Nm 1440 ft.lbs
    Maximum Torque (reverse) 1440 ft.lbs 1950 Nm
    Free speed 6500 rpm
    Blows per minute 1200
    Power/weight ratio 590.91 Nm/kg 200 ft.lb/lb
    Power/weight ratio 200 ft.lb/lb 590.91 Nm/kg
    Socket retainer Dual (hole+friction)
    Clutch type Twin hammer
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2013
