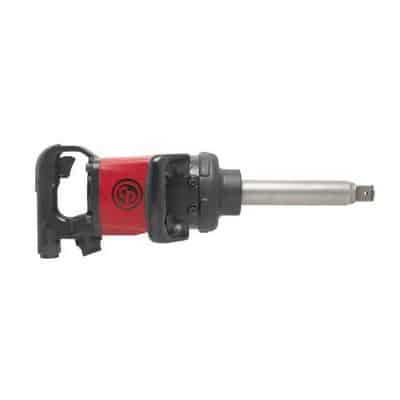

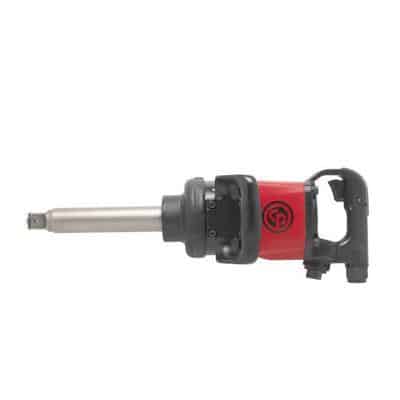

Chicago Pneumatic CP7782-6 1" Impact Wrench 6" Anvil
Chicago Pneumatic CP7782-6 1" Impact Wrench 6" Anvil
Chicago Pneumatic CP7782-6 1" Impact Wrench 6" Anvil - Image 2
Chicago Pneumatic CP7782-6 1" Impact Wrench 6" Anvil - Image 3
Chicago Pneumatic CP7782-6 1" Impact Wrench 6" Anvil - Image 4

Chicago Pneumatic CP7782-6 1″ Impact Wrench 6″ Anvil

Original price was: $1,455.34.Current price is: $1,113.34.

CP7782-6 – High Torque & Comfort

SKU: 8941077826 Categories: , Brand:

Description

CP7782-6

CP7782-6 – High Torque & Comfort

Benefits

  • High efficiency motor, yet economical with durable reinforced clutch mechanism
  • Durable impact wrench with great power for the toughest jobs on heavy vehicles

    • Features

  • 1″ straight impact wrench with 6″ extended anvil
  • 1920 ft.lbs – 2600 Nm of maximum torque in reverse
  • Pinless closed reinforced rocking dog impact mechanism
  • Dual socket retention, hole and friction ring
  • Ergonomic side handle
  • Full teasing trigger
  • Regulator with integrated forward/reverse with 3-position power settings in both directions

    •
    Model CP7782-6
    Part number 8941077826
    Length 520 mm 20.4″
    Length 20.4″ 520 mm
    Net weight 11.6 kg 25.55 lb
    Net weight 25.55 lb 11.6 kg
    Average air consumption 10 cfm
    Average air consumption 4.8 l/s 10 cfm
    Actual air consumption 40.7 cfm
    Actual air consumption 19.2 l/s 40.7 cfm
    Air inlet thread size 1/2 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 100 db(A)
    Sound Power 111 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-2
    Vibration 7.8 m/s²
    Vibration uncertainty (K) 1.8 m/s²
    Square drive 1″
    Working Torque Range (fwd) 500 – 2000 Nm 370 – 1475
    Working Torque Range (fwd) 370 – 1475 ft.lbs 500 – 2000
    Maximum Torque (reverse) 2600 Nm 1920 ft.lbs
    Maximum Torque (reverse) 1920 ft.lbs 2600 Nm
    Free speed 5200 rpm
    Blows per minute 500
    Power/weight ratio 257.4 Nm/kg 86.5 ft.lb/lb
    Power/weight ratio 86.5 ft.lb/lb 257.4 Nm/kg
    Bolt size M32
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2013
