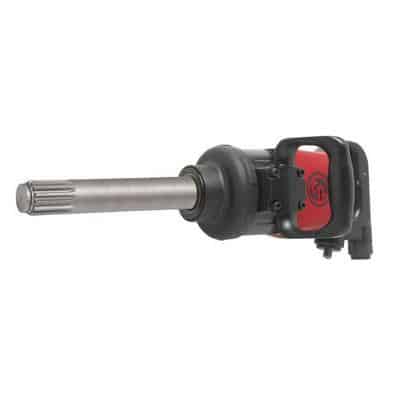

Chicago Pneumatic CP7782-SP6 1″ Impact #5 Spline 6″ Anvil

Original price was: $1,680.52.Current price is: $1,285.60.

CP7782-SP6 – High Torque & Comfort

SKU: 8941077821 Categories: , Brand:

Description

CP7782-SP6

CP7782-SP6 – High Torque & Comfort

Benefits

  • High efficiency motor, yet economical with durable reinforced clutch mechanism
  • Durable impact wrench with great power for the toughest jobs on heavy vehicles

    • Features

  • #5 spline straight impact wrench with 6″ extended anvil
  • 1920 ft.lbs – 2600 Nm of maximum torque in reverse
  • Pinless closed reinforced rocking dog impact mechanism
  • Socket retainer ring combined with hole retainer
  • Ergonomic side handle
  • Full teasing trigger
  • Regulator with integrated forward/reverse with 3-position power settings in both directions

    •
    Model CP7782-SP6
    Part number 8941077821
    Air inlet thread size 1/2 “
    Length 370 mm 14.7″
    Length 14.7″ 370 mm
    Net weight 11.6 kg 25.55 lb
    Net weight 25.55 lb 11.6 kg
    Average air consumption 10 cfm
    Average air consumption 4.8 l/s 10 cfm
    Actual air consumption 40.7 cfm
    Actual air consumption 19.2 l/s 40.7 cfm
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 100 db(A)
    Sound Power 111 db(A)
    European Sound standard ISO 15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-2
    Vibration 7.8 m/s²
    Vibration uncertainty (K) 1.8 m/s²
    Square drive #5 spline”
    Working Torque Range (fwd) 500 – 2000 Nm 370 – 1475
    Working Torque Range (fwd) 370 – 1475 ft.lbs 500 – 2000
    Maximum Torque (reverse) 2600 Nm 1920 ft.lbs
    Maximum Torque (reverse) 1920 ft.lbs 2600 Nm
    Free speed 5200 rpm
    Blows per minute 500
    Power/weight ratio 257.4 Nm/kg 86.5 ft.lb/lb
    Power/weight ratio 86.5 ft.lb/lb 257.4 Nm/kg
    Bolt size M32
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2013
