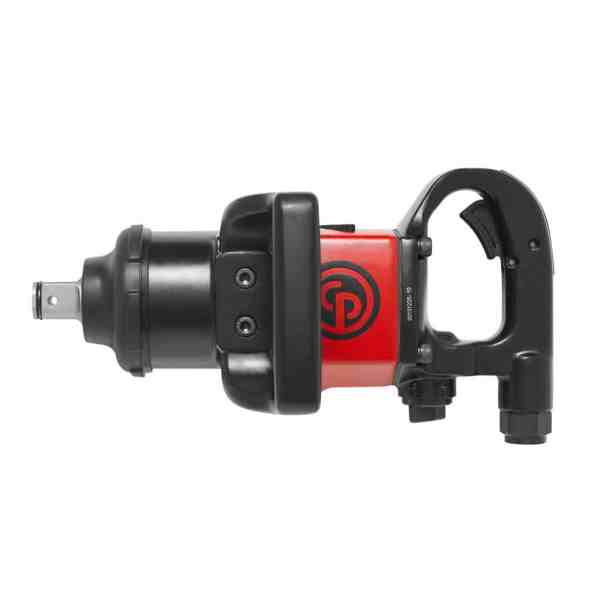

Chicago Pneumatic CP7783 1" IMPACT WRENCH (LIGHTWEIGHT)
Chicago Pneumatic CP7783 1" IMPACT WRENCH (LIGHTWEIGHT)
Chicago Pneumatic CP7783 1" IMPACT WRENCH (LIGHTWEIGHT) - Image 2
Chicago Pneumatic CP7783 1" IMPACT WRENCH (LIGHTWEIGHT) - Image 3

Chicago Pneumatic CP7783 1″ IMPACT WRENCH (LIGHTWEIGHT)

Original price was: $1,552.47.Current price is: $1,187.64.

CP7783 – Lightweight, Powerful and SUPER Durable

SKU: 8941077830 Categories: , Brand:

Description

CP7783

CP7783 – Lightweight, Powerful and SUPER Durable

Benefits

  • Powerful
  • Lightweight
  • SUPER Durability
  • Operator Comfort & Easy to Use
  • User Friendly
  • Convenient
  • Useful
  • Shock Absorbing

    • Features

  • 1770 ft.lbs / 2400 Nm max torque in reverse for high productivity
  • 18.5 lbs. / 8.4 kg for reduced operator fatigue
  • Pinless closed reinforced rocking dog mechanism
  • Features an adjustable top or down exhaust
  • Regulator integrated in forward/reverse button with 3 power settings in both directions
  • Top or down exhaust, easy and quick to change
  • Four positions for D-handle placement to provide ultimate operator comfort
  • Forward/Reverse regulator with 3 power settings in both directions
  • Rubber bumper protecting both applications & tool (included)

    •
    Model CP7783
    Part number 8941077830
    Length 350 mm 13.7″
    Length 13.7″ 350 mm
    Net weight 8.4 kg 18.5 lb
    Net weight 18.5 lb 8.4 kg
    Average air consumption 10.1 cfm
    Average air consumption 4.75 l/s 10.1 cfm
    Actual air consumption 40.4 cfm
    Actual air consumption 19 l/s 40.4 cfm
    Air inlet thread size 1/2 “
    Min. hose size 19 mm 3/4″
    Min. hose size 3/4″ 19 mm
    Sound Power 113 db(A)
    Vibration ISO ISO-28927-2
    Vibration 15.1 m/s²
    Vibration uncertainty (K) 4.1 m/s²
    Handle type D-Handle Inside Trigger
    Square drive 1″
    Working Torque Range (fwd) 560 – 1700 Nm 413 – 1253
    Working Torque Range (fwd) 413 – 1253 ft.lbs 560 – 1700
    Maximum Torque (reverse) 2400 Nm 1770 ft.lbs
    Maximum Torque (reverse) 1770 ft.lbs 2400 Nm
    Free speed 6200 rpm
    Socket retainer Ring & hole
    Clutch type Pin less closed rocking dog
    Sound DBA pressure 102 db(A)
    European Standards EN ISO 11148-6:2013
