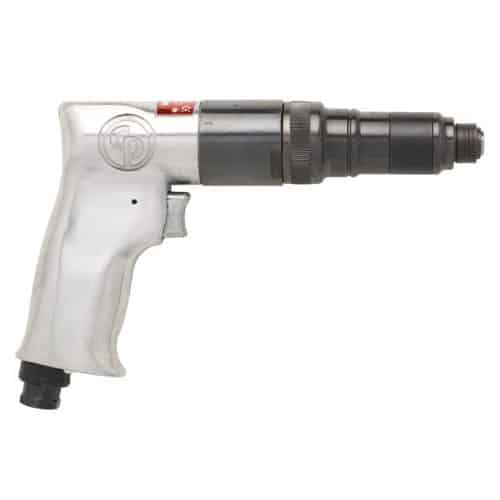

Chicago Pneumatic CP781 PISTOL SCREWDRIVER LOW SPEED
Chicago Pneumatic CP781 PISTOL SCREWDRIVER LOW SPEED

Chicago Pneumatic CP781 PISTOL SCREWDRIVER LOW SPEED

Original price was: $807.94.Current price is: $618.08.

CP781 – High torque & Robust

SKU: T025096 Categories: , , Brand:

Description

CP781

CP781 – High torque & Robust

Benefits

  • Reliable & easy-to-adjust cushion Clutch for powerful fastening
  • Robust Aluminum body & Steel clutch housing
  • Ideal tool for general assembly, metal, wood, PVC and refurbishing applications

    • Features

  • Pistol Cushion clutch screwdriver
  • External clutch adjustment
  • Built-in 1/4″ Female Hex quick-change
  • Convenient single handed forward/reverse
  • High torque 75 in.lbs (8.47 Nm)

    •
    Model CP781
    Part number T025096
    Length 226 mm 8.88″
    Length 8.88″ 226 mm
    Net weight 1.36 kg 3 lb
    Net weight 3 lb 1.36 kg
    Height 150 mm 5.9″
    Height 5.9″ 150 mm
    Average air consumption 4 cfm 113 l/mn
    Average air consumption 1.9 l/s 4 cfm
    Average air consumption 113 l/mn 4 cfm
    Actual air consumption 16 cfm 453 l/mn
    Actual air consumption 7.6 l/s 16 cfm
    Actual air consumption 453 l/mn 16 cfm
    Free speed air consumption 25 cfm
    Free speed air consumption 11.8 l/s 25 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 99.5 db(A)
    Sound Power 110.5 db(A)
    Vibration ISO ISO-28927-2
    Vibration <2.5 m/s²
    Vibration uncertainty (K) – m/s²
    Output drive 1/4″
    Handle type Pistol
    Clutch type Cushion
    Free speed 800 rpm
    Max working torque 11.3 Nm 8.4 ft.lbs
    Max working torque 8.4 ft.lbs 11.3 Nm
    Min working torque 6.2 Nm 4.57 ft.lbs
    Min working torque 4.57 ft.lbs 6.2 Nm
    Diameter 31 mm 0.78″
    Diameter 0.78″ 31 mm
    Bit holder Quick Change Hexagonal Female
