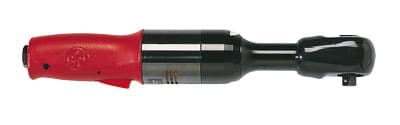

Chicago Pneumatic CP7830Q 3/8" RATCHET QUIET
Chicago Pneumatic CP7830Q 3/8" RATCHET QUIET

Chicago Pneumatic CP7830Q 3/8″ RATCHET QUIET

Original price was: $491.00.Current price is: $375.62.

CP7830Q – Powerful, Durable sturdy aluminum alloy head

SKU: 8941078306 Categories: , Brand:

Description

CP7830Q

CP7830Q – Powerful, Durable sturdy aluminum alloy head

Benefits

  • Lightweight and well balanced thanks to special head, powerful
  • Ratchets for general maintenance, durability and comfort

    • Features

  • 3/8″ high power club ratchet
  • Adjustable side exhaust, low noise
  • Progressive tease throttle
  • Highest torque on the market: 90 ft.lbs (122 Nm)
  • Grease fitting on the reverse button
  • Features CP’s patented TriSpring anti-slip head design with protective head cover

    •
    Model CP7830Q
    Part number 8941078306
    Length 305 mm 12″
    Length 12″ 305 mm
    Net weight 1.2 kg 2.7 lb
    Net weight 2.7 lb 1.2 kg
    Average air consumption 5 cfm 141 l/mn
    Average air consumption 2.3 l/s 5 cfm
    Average air consumption 141 l/mn 5 cfm
    Actual air consumption 21 cfm 524 l/mn
    Actual air consumption 8.7 l/s 21 cfm
    Actual air consumption 524 l/mn 21 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 85 db(A)
    Sound Power 96 db(A)
    European Sound standard EN ISO 15744
    Vibration ISO ISO-28927-2
    Vibration 4.1 m/s²
    Vibration uncertainty (K) 1.4 m/s²
    Square drive 3/8″
    Working torque Range 13 – 122 Nm 10 – 90
    Working torque Range 10 – 90 ft.lbs 13 – 122
    Max torque 122 Nm 90 ft.lbs
    Max torque 90 ft.lbs 122 Nm
    Free speed 190 rpm
