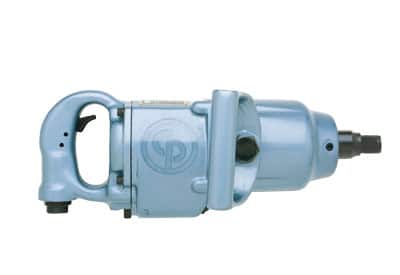

Chicago Pneumatic CP797 1" IMPACT WRENCH
Chicago Pneumatic CP797 1" IMPACT WRENCH

Chicago Pneumatic CP797 1″ IMPACT WRENCH

Original price was: $2,140.21.Current price is: $1,637.27.

CP797 – The truck tire Reference

SKU: T019139 Categories: , Brand:

Description

CP797

CP797 – The truck tire Reference

Benefits

  • The undisputed market leader
  • Long known as the workhorse of the truck tire industry
  • Clutch delivers smooth operation and extreme durability
  • Ideal for high volume work on trucks, buses, and heavy equipment

    • Features

  • 1″ straight impact wrench
  • Rocking dog clutch
  • High performance and durability
  • Teasing throttle
  • Convenient reverse valve

    •
    Model CP797
    Part number T019139
    Length 394 mm 15.5″
    Length 15.5″ 394 mm
    Net weight 12.25 kg 27 lb
    Net weight 27 lb 12.25 kg
    Average air consumption 10 cfm
    Average air consumption 4.7 l/s 10 cfm
    Actual air consumption 60 cfm
    Actual air consumption 28.2 l/s 60 cfm
    Air inlet thread size 1/2 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 110 db(A)
    Sound Power 121 db(A)
    Vibration ISO ISO-28927-2
    Vibration 12.8 m/s²
    Vibration uncertainty (K) 4.3 m/s²
    Handle type D-Handle Inside Trigger
    Square drive 1″
    Working Torque Range (fwd) 203 – 1,220 Nm 150 – 900
    Working Torque Range (fwd) 150 – 900 ft.lbs 203 – 1,220
    Maximum Torque (reverse) 1898 Nm 1400 ft.lbs
    Maximum Torque (reverse) 1400 ft.lbs 1898 Nm
    Free speed 4200 rpm
    Blows per minute 1080
    Power/weight ratio 154.9 Nm/kg 51.9 ft.lb/lb
    Power/weight ratio 51.9 ft.lb/lb 154.9 Nm/kg
    Socket retainer Dual (hole+friction)
    Clutch type Double rocking dog – Oil bath
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2013
