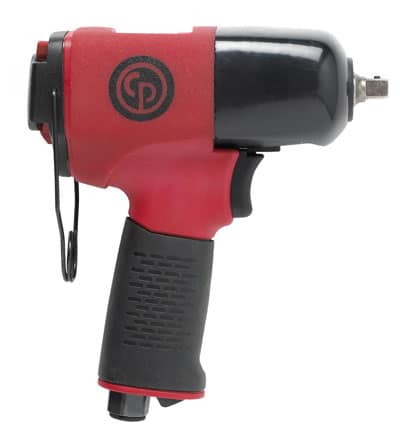

Chicago Pneumatic CP8222-P 3/8" IMPACT WRENCH
Chicago Pneumatic CP8222-P 3/8" IMPACT WRENCH

Chicago Pneumatic CP8222-P 3/8″ IMPACT WRENCH

Original price was: $386.65.Current price is: $266.79.

CP8222-P – 3/8″ Comfortable, Robust & Compact

SKU: 6151590180 Categories: , Brand:

Description

CP8222-P

CP8222-P – 3/8″ Comfortable, Robust & Compact

Benefits

  • Very low noise, very limited vibration and lightweight for operator comfort
  • Powerful but easy to control for assembly/disassembly operations
  • Compact for easy access in confined areas
  • Durable and reliable impact for Industrial Maintenance and Production applications

    • Features

  • 3/8″ compact impact with pin retainer
  • Powerful & durable twin hammer clutch
  • Composite body and aluminum clutch housing
  • 3 power settings in forward & full power in reverse
  • Protective cover & suspension bail
  • Progressive trigger & Rubber grip

    •
    Model CP8222-P
    Part number 6151590180
    Length 177 mm 7″
    Length 7″ 177 mm
    Net weight 1.2 kg 2.6 lb
    Net weight 2.6 lb 1.2 kg
    Side to center 30 mm
    Actual air consumption 21.2 cfm
    Actual air consumption 10 l/s 21.2 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 89 db(A)
    Sound Power 100 db(A)
    Vibration ISO ISO-28927-2
    Vibration 5.8 m/s²
    Vibration uncertainty (K) 2.4 m/s²
    Handle type Pistol
    Square drive 3/8″
    Working Torque Range (fwd) 80 – 400 Nm 60 – 295
    Working Torque Range (fwd) 60 – 295 ft.lbs 80 – 400
    Maximum Torque (reverse) 450 Nm 332 ft.lbs
    Maximum Torque (reverse) 332 ft.lbs 450 Nm
    Free speed 11500 rpm
    Blows per minute 1250
    Power/weight ratio 375 Nm/kg 127.7 ft.lb/lb
    Power/weight ratio 127.7 ft.lb/lb 375 Nm/kg
    VST2 17.9
    Socket retainer Pin retainer
    Clutch type Twin hammer
    European Standards EN ISO 11148-6:2013
