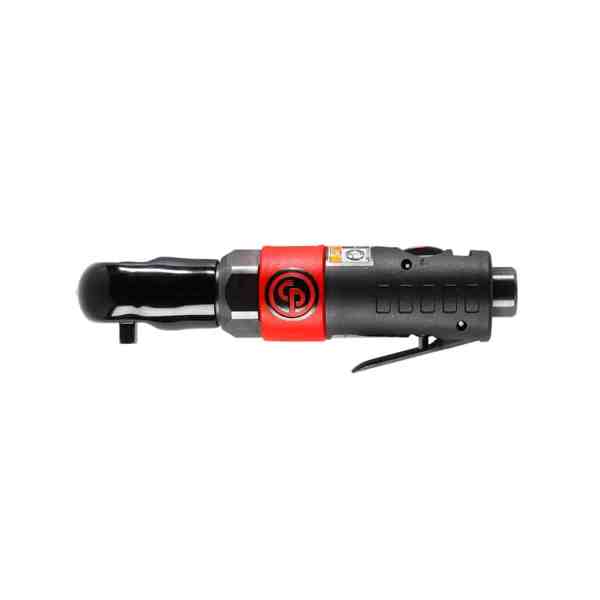

Chicago Pneumatic CP825C 1/4" COMPOSITE STUBBY AIR RATCHET
Chicago Pneumatic CP825C 1/4" COMPOSITE STUBBY AIR RATCHET
Chicago Pneumatic CP825C 1/4" COMPOSITE STUBBY AIR RATCHET - Image 2

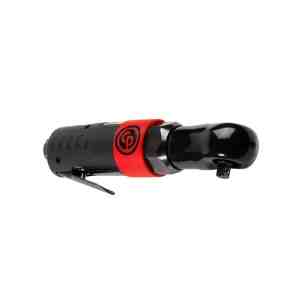

Chicago Pneumatic CP825C 1/4" COMPOSITE STUBBY AIR RATCHET - Image 3

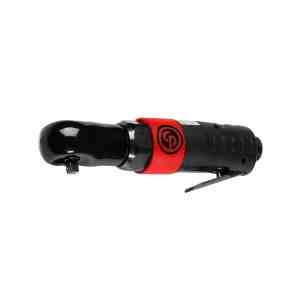

Chicago Pneumatic CP825C 1/4" COMPOSITE STUBBY AIR RATCHET - Image 4
Chicago Pneumatic CP825C 1/4" COMPOSITE STUBBY AIR RATCHET - Image 5
Chicago Pneumatic CP825C 1/4" COMPOSITE STUBBY AIR RATCHET - Image 6

Chicago Pneumatic CP825C 1/4″ COMPOSITE STUBBY AIR RATCHET

Original price was: $317.91.Current price is: $243.21.

CP825C – HIGH ACCESSIBILITY, HIGH SPEED, AND SUPERIOR DURABLITY

SKU: 8941082511 Categories: , Brand:

Description

CP825C

CP825C – HIGH ACCESSIBILITY, HIGH SPEED, AND SUPERIOR DURABLITY

Benefits

  • High comfort
  • High speed
  • Better handling
  • Operator friendly
  • Better speed control
  • High accessibility to tight spaces
  • Higher durability
  • Useful
  • Convenient
  • Lightweight

    • Features

  • Aluminum body with composite housing to insulate from cold
  • Fast rundown 280 RPM
  • Short & Wide lever
  • Back exhaust avoids blowing dirt and dust
  • New power easy-to-use regulator to regulate speed from zero to max speed
  • Flat forward and reverse button
  • Improved head material
  • Head composite protective cover supplied with the tool
  • Shank with ball retainer
  • 1.1 lbs. – 0.5 kg

    •
    Model CP825C
    Part number 8941082511
    Square drive 1/4″
    Length 169 mm 6.6″
    Length 6.6″ 169 mm
    Net weight 0.5 kg 1.1 lb
    Net weight 1.1 lb 1/2 kg
    Height 34 mm 1.3″
    Height 1.3″ 34 mm
    Width 38 mm 1 1/2″
    Width 1 1/2″ 38 mm
    Side to center 19 mm 3/4″
    Side to center 3/4″ 19 mm
    Average air consumption 3.2 cfm 88 l/mn
    Average air consumption 1.5 l/s 3.2 cfm
    Average air consumption 88 l/mn 3.2 cfm
    Actual air consumption 15.5 cfm 438 l/mn
    Actual air consumption 7.3 l/s 15.5 cfm
    Actual air consumption 438 l/mn 15.5 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 82 db(A)
    Sound Power 93 db(A)
    European Sound standard ISO-15744
    Sound uncertainty 3 db(A)
    Vibration ISO ISO-28927-2
    Vibration 4 m/s²
    Vibration uncertainty (K) 1.5 m/s²
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-6:2012
    Working torque Range 5 – 25 Nm 4 – 18
    Working torque Range 4 – 18 ft.lbs 5 – 25
    Max torque 35 Nm 26 ft.lbs
    Max torque 26 ft.lbs 35 Nm
    Free speed 280 rpm
