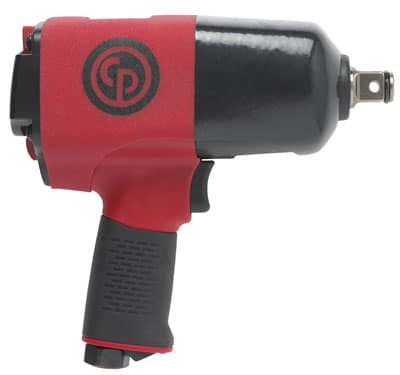

Chicago Pneumatic CP8272-D 3/4" IMPACT WRENCH
Chicago Pneumatic CP8272-D 3/4" IMPACT WRENCH

Chicago Pneumatic CP8272-D 3/4″ IMPACT WRENCH

Original price was: $858.20.Current price is: $592.16.

CP8272-D – Robust, Comfortable & Versatile

SKU: 6151590260 Categories: , Brand:

Description

CP8272-D

CP8272-D – Robust, Comfortable & Versatile

Benefits

  • Durable and reliable impact for industrial Maintenance and Production applications
  • Low noise and vibration levels and lightweight increase operator comfort
  • Powerful and easy to control for precise assembly jobs
  • Multi-purpose tool for versatile applications

    • Features

  • 3/4″ impact with dual retainer (hole + ring)
  • Powerful & durable twin hammer clutch
  • Composite body and aluminum clutch housing
  • 3 power settings in forward & full power in reverse
  • Protective cover & reinforced structure
  • Progressive trigger & rubber grip
  • Suspension hook available in option

    •
    Model CP8272-D
    Part number 6151590260
    Length 230 mm 9.1″
    Length 9.1″ 230 mm
    Net weight 3.65 kg 8 lb
    Net weight 8 lb 3.65 kg
    Side to center 40 mm 1.57″
    Side to center 1.57″ 40 mm
    Actual air consumption 38 cfm
    Actual air consumption 18 l/s 38 cfm
    Air inlet thread size 3/8 “
    Min. hose size 13 mm 1/2″
    Min. hose size 1/2″ 13 mm
    Sound pressure 96 db(A)
    Sound Power 107 db(A)
    Vibration ISO ISO-28927-2
    Vibration 15.5 m/s²
    Vibration uncertainty (K) 6.8 m/s²
    Handle type Pistol
    Square drive 3/4″
    Working Torque Range (fwd) 250 – 1,250 Nm 184 – 922
    Working Torque Range (fwd) 184 – 922 ft.lbs 250 – 1,250
    Maximum Torque (reverse) 1650 Nm 1217 ft.lbs
    Maximum Torque (reverse) 1217 ft.lbs 1650 Nm
    Free speed 6500 rpm
    Blows per minute 1000
    Power/weight ratio 500 Nm/kg 166.7 ft.lb/lb
    Power/weight ratio 166.7 ft.lb/lb 500 Nm/kg
    VST2 32.5
    Socket retainer Dual (hole+friction)
    Clutch type Twin hammer
    European Standards EN ISO 11148-6:2013
