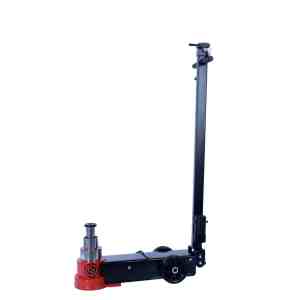

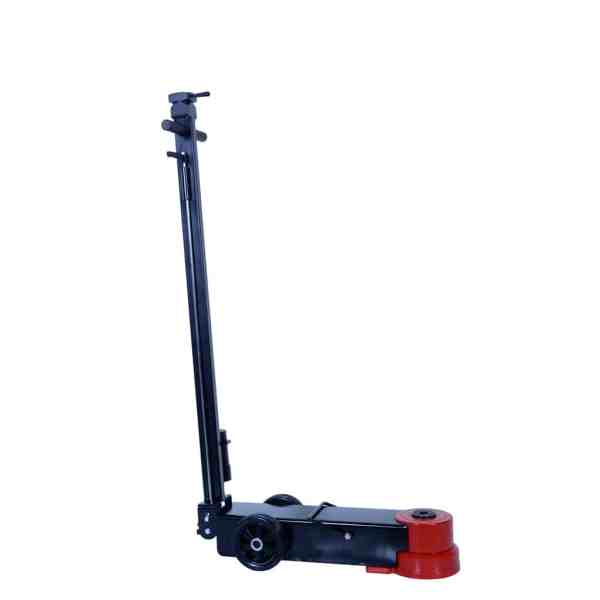

Chicago Pneumatic CP85050 AIR HYDRAULIC JACK 50T
Chicago Pneumatic CP85050 AIR HYDRAULIC JACK 50T
Chicago Pneumatic CP85050 AIR HYDRAULIC JACK 50T - Image 2
Chicago Pneumatic CP85050 AIR HYDRAULIC JACK 50T - Image 3
Chicago Pneumatic CP85050 AIR HYDRAULIC JACK 50T - Image 4
Chicago Pneumatic CP85050 AIR HYDRAULIC JACK 50T - Image 5
Chicago Pneumatic CP85050 AIR HYDRAULIC JACK 50T - Image 6

Chicago Pneumatic CP85050 AIR HYDRAULIC JACK 50T

Original price was: $3,890.03.Current price is: $2,975.88.

CP85050 – High Lifting Capacity high Durability, safety

SKU: 8941085050 Categories: , Brand:

Description

CP85050

CP85050 – High Lifting Capacity high Durability, safety

Benefits

  • High Lifting Capacity
  • High Durability
  • Fast and easy operation controlled from the handle
  • Low Profile
  • Convenient
  • Easy maneuvering and to transport
  • Safety

    • Features

  • Maximum height: 18 1/2 in / 472 mm
  • Air powered piston
  • Includes 2 extensions for higher lifting – Stored on handle for transport
  • Piston and pump
  • Anti dust seals
  • Ideal for easily accessing lifting points on low chassis trucks and buses
  • Convenient joystick controls
  • Cylinder mounted carrying handle
  • 4 ¼ ft./ 1.3 m / long handle bar (1 piece handle) allows easy access to controls when fully positioned under vehicle
  • Handle bar locks in 3 positions: 45°, 90° & 180°
  • Large & soft rubber wheels

    •
    Model CP85050
    Part number 8941085050
    Net weight 60 kg 132.285714285714 lb
    Net weight 132.285714285714 lb 60 kg
    Dimension A 160 mm 6.29677419354839″
    Dimension A 6.29677419354839″ 160 mm
    Dimension B 200 mm 7.88888888888889″
    Dimension B 7.88888888888889″ 200 mm
    Dimension C 282 mm 11.1573913043478″
    Dimension C 11.1573913043478″ 282 mm
    Dimension D 470 mm 18.5314285714286″
    Dimension D 18.5314285714286″ 470 mm
    Dimension E 85 mm 3.33703703703704″
    Dimension E 3.33703703703704″ 85 mm
    Dimension F 222/283/352  8.7/11.1/13.9
    Dimension F 8.7/11.1/13.9 222/283/352
    Dimension G 1430 mm 56.32″
    Dimension G 56.32″ 1430 mm
    Capacity 50/25/15  55.1
    Capacity 55.1 short ton(s) 50/25/15 ton(s)
    Dimension D+E 555 mm 21.8636363636364″
    Dimension D+E 21.8636363636364″ 555 mm
    Dimension P 71 mm 2.79630769230769″
    Dimension P 2.79630769230769″ 71 mm
    Wheel type Rubber
    UPC Code 015451767952
