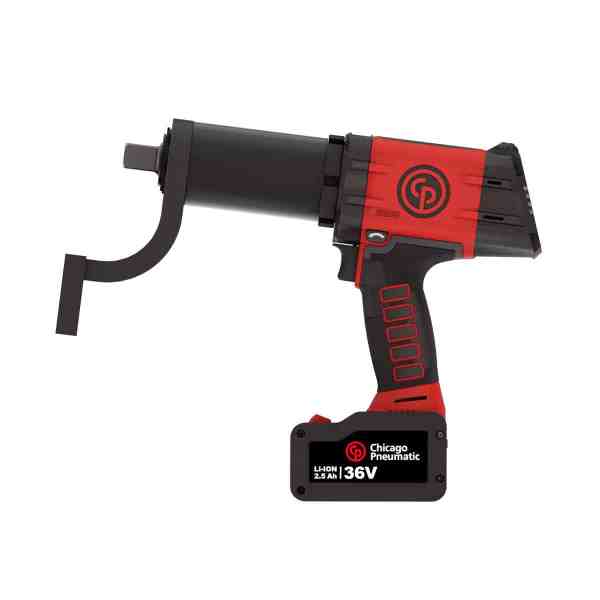

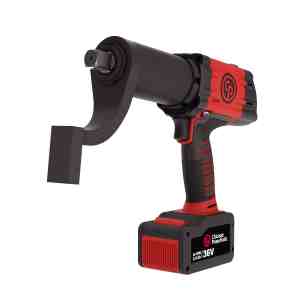

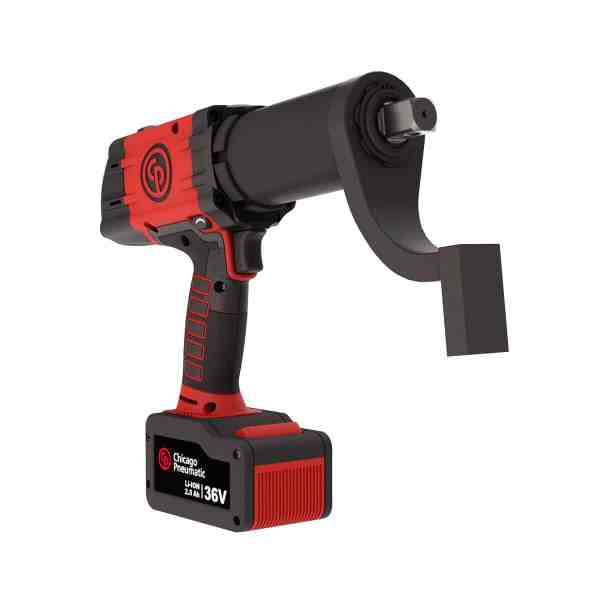

Chicago Pneumatic CP8613 PACK 36V 2.5AH
Chicago Pneumatic CP8613 PACK 36V 2.5AH
Chicago Pneumatic CP8613 PACK 36V 2.5AH - Image 2
Chicago Pneumatic CP8613 PACK 36V 2.5AH - Image 3
Chicago Pneumatic CP8613 PACK 36V 2.5AH - Image 4

Chicago Pneumatic CP8613 PACK 36V 2.5AH

Original price was: $10,129.64.Current price is: $8,103.71.

CP8613 – Extended mobility and high precision with no compromise on safety

SKU: 6151570000 Categories: , , Brand:

Description

CP8613

CP8613 – Extended mobility and high precision with no compromise on safety

Benefits

  • High precison with +/- 4%
  • Safe tightening with second start button as standard
  • Extended mobility with compact high cycle rate 36V/2,5Ah battery
  • Automatic release reaction arm
  • Slim and reliable gearbox
  • Intuitive menu on a OLED Digital screen


Model CP8613
Part number 6151570000
Maximum Torque (reverse) 960 ft.lbs 1300 Nm
Maximum Torque (reverse) 1300 Nm 960 ft.lbs
Length 318 mm 12.5″
Length 12.5″ 318 mm
Net weight 4.5 kg 8.8 lb
Net weight 8.8 lb 4.5 kg
Height 285 mm 11.2″
Height 11.2″ 285 mm
Width 77 mm 3″
Width 3″ 77 mm
Sound pressure < 72
Sound Power < 83
European Sound standard EN 62841-2-2:2015
Sound uncertainty 3 db(A)
Vibration ISO EN 62841-2-2:2015
Vibration < 2.5 m/s²
Vibration uncertainty (K) 3 m/s²
European Directives 2006/42/EC, 2011/65/EU, 2014/53/EU
European Standards EN 62841-2-2:2015 + AC1:2015, EN 61000-6-2:2005,EN61000-6-3:2007+ A1:2011, EN 61326-2-3:2013, EN 301 489-1 V2.2.0, EN 301 489-3 V2.1.1
Battery voltage 36 V
Ah 2.5 Ah
Battery type Li ion
Weight without battery 4.5 kg 8.8 lb
Weight without battery 8.8 lb 4.5 kg
Battery pack weight kg 0.8 kg 1.7 lb
Battery pack weight lb 1.7 lb 0.8 kg
IP Rating IP20
Min. ambient operating temperature 0
Min. ambient operating temperature 32 °F
Min. ambient storage temperature -20 °C
Min. ambient storage temperature -4 °F
Recommended max. ambient charging temperature 45 °C
Recommended min. ambient charging temperature 32 °F
Number of positions 1
Max. ambient operating temperature 140 °F
Max. ambient operating temperature 60 °C
Max. ambient storage temperature 60 °C
Max. ambient storage temperature 140 °F
Recommended min. ambient charging temperature 0
Recommended max. ambient charging temperature 113 °F
Free speed 10 rpm
Reaction bar S type
Square drive 3/4″
