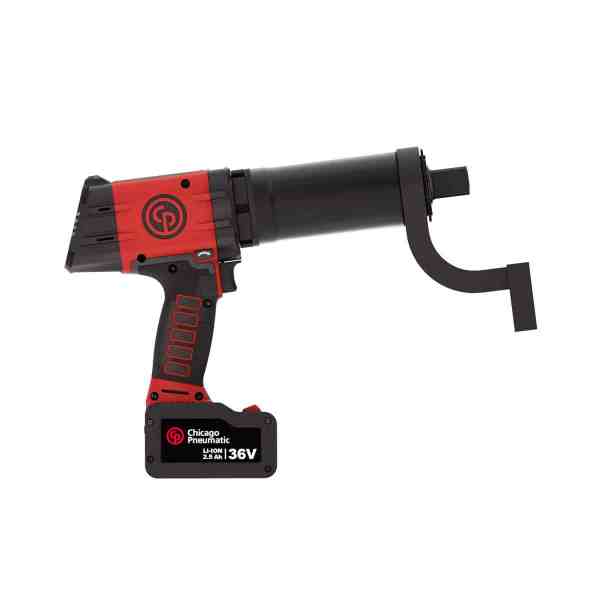

Chicago Pneumatic CP8626CQ Connected Quality PACK 36V 2.5AH
Chicago Pneumatic CP8626CQ Connected Quality PACK 36V 2.5AH
Chicago Pneumatic CP8626CQ Connected Quality PACK 36V 2.5AH - Image 2
Chicago Pneumatic CP8626CQ Connected Quality PACK 36V 2.5AH - Image 3
Chicago Pneumatic CP8626CQ Connected Quality PACK 36V 2.5AH - Image 4

Chicago Pneumatic CP8626CQ Connected Quality PACK 36V 2.5AH

Original price was: $15,405.46.Current price is: $11,554.10.

CP8626CQ – Extended mobility and high precision with no compromise on safety Thanks to CPLinQ app, add control of your quality process in the field.

SKU: 6151570050 Categories: , , Brand:

Description

CP8626CQ

CP8626CQ – Extended mobility and high precision with no compromise on safety Thanks to CPLinQ app, add control of your quality process in the field.

Benefits

  • High precison with +/- 4% at 6 sigma
  • Safe tightening with second start button as standard
  • Extended mobility with compact high cycle rate 36V/2,5Ah battery
  • Automatic release reaction arm
  • Slim and reliable gearbox
  • Intuitive menu on a OLED Digital screen
  • Connected to CPLinQ for tool status management and application library.
  • Counting sequence and tightening report for control and quality process to further improve productivity in the field (For C and CQ version)


Model CP8626CQ
Part number 6151570050
Maximum Torque (reverse) 1910 ft.lbs 2600 Nm
Maximum Torque (reverse) 2600 Nm 1910 ft.lbs
Length 363 mm 14.3″
Length 14.3″ 363 mm
Net weight 6.4 kg 14.3 lb
Net weight 14.3 lb 6.4 kg
Height 285 mm 11.2″
Height 11.2″ 285 mm
Width 77 mm 3″
Width 3″ 77 mm
Sound pressure < 72
Sound Power < 83
European Sound standard EN 62841-2-2:2015
Sound uncertainty 3 db(A)
Vibration ISO EN 62841-2-2:2015
Vibration < 2.5 m/s²
Vibration uncertainty (K) 3 m/s²
European Directives 2006/42/EC, 2011/65/EU, 2014/53/EU
European Standards EN 62841-2-2:2015 + AC1:2015, EN 61000-6-2:2005,EN61000-6-3:2007+ A1:2011, EN 61326-2-3:2013, EN 301 489-1 V2.2.0, EN 301 489-3 V2.1.1
Battery voltage 36 V
Ah 2.5 Ah
Battery type Li ion
Weight without battery 6.4 kg 14.1 lb
Weight without battery 14.1 lb 6.4 kg
Battery pack weight kg 0.8 kg 1.7 lb
Battery pack weight lb 1.7 lb 0.8 kg
IP Rating IP20
Min. ambient operating temperature 0
Min. ambient operating temperature 32 °F
Min. ambient storage temperature 20 °C
Min. ambient storage temperature -4 °F
Recommended max. ambient charging temperature 45 °C
Recommended min. ambient charging temperature 32 °F
Number of positions 1
Max. ambient operating temperature 140 °F
Max. ambient operating temperature 60 °C
Max. ambient storage temperature 60 °C
Max. ambient storage temperature 140 °F
Recommended min. ambient charging temperature 0
Recommended max. ambient charging temperature 113 °F
Free speed 5 rpm
Reaction bar S type
Square drive 1″
