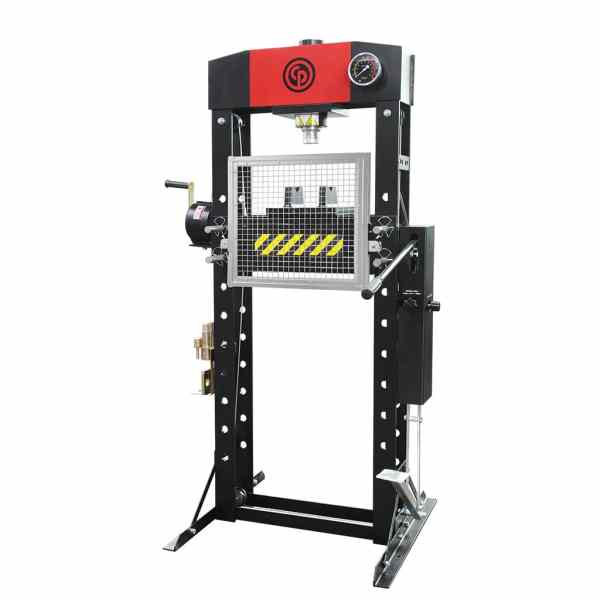

Chicago Pneumatic CP86300 30T WORKSHOP PRESS
Chicago Pneumatic CP86300 30T WORKSHOP PRESS
Chicago Pneumatic CP86300 30T WORKSHOP PRESS - Image 2
Chicago Pneumatic CP86300 30T WORKSHOP PRESS - Image 3

Chicago Pneumatic CP86300 30T WORKSHOP PRESS

Original price was: $4,736.66.Current price is: $3,623.55.

CP86301 US – Durable press, convenient & precise

SKU: 8941086301 Categories: , Brand:

Description

CP86301

CP86301 US – Durable press, convenient & precise

Benefits

  • High stability
  • Durable & sturdy
  • Precision
  • Easy control
  • Stable
  • Comfort

    • Features

  • 2 holes in each foot to fix in the floor
  • Steel frame
  • 2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine tuning of the load

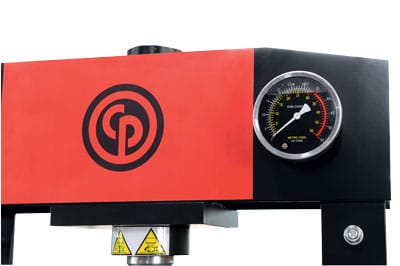

  • Large gauge measuring short and metric tons
  • Delivered with 2 V blocks
  • Easy to use handle with rubber grip
  • Delivered with a quick chuck and 8 punches
  • Provided with a protection cage
  • This product is marketed only in North America

    •
    Model CP86301 US
    Part number 8941086301
    Net weight 167 kg 368.2 lb
    Net weight 368.2 lb 167 kg
    Dimension A 795 mm 31.3″
    Dimension A 31.3″ 795 mm
    Dimension B 700 mm 27.6″
    Dimension B 27.6″ 700 mm
    Dimension C 1772 mm 69.8″
    Dimension C 69.8″ 1772 mm
    Dimension E 535 mm 21.1″
    Dimension E 21.1″ 535 mm
    Dimension F 140 mm 5 1/2″
    Dimension F 5 1/2″ 140 mm
    Capacity 30 ton(s) 33.07 short ton(s)
    Capacity 33.07 short ton(s) 30 ton(s)
    Dimension F1 151 mm 5.9″
    Dimension F1 5.9″ 151 mm
    Dimension F2 1031 mm 40.6″
    Dimension F2 40.6″ 1031 mm
    Dimension R 160 mm 6.3″
    Dimension R 6.3″ 160 mm
    Oil capacity 1.1 ml
    Dimension M 200 mm 7.9″
    Dimension M 7.9″ 200 mm
