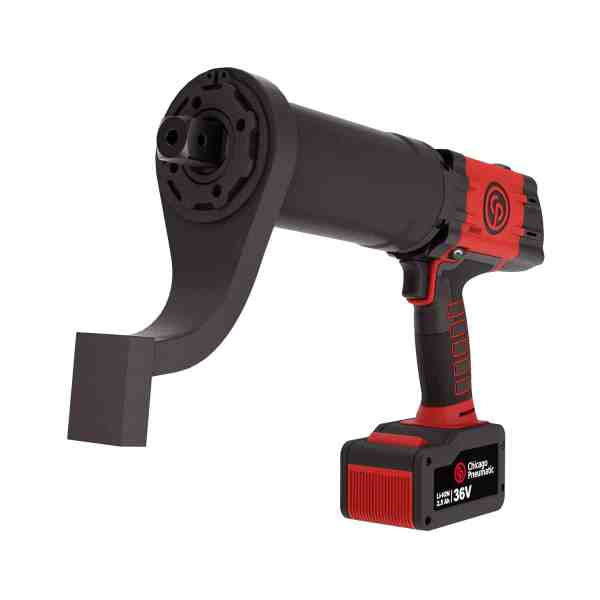

Chicago Pneumatic CP8641C Connected PACK 36V 2.5AH
Chicago Pneumatic CP8641C Connected PACK 36V 2.5AH
Chicago Pneumatic CP8641C Connected PACK 36V 2.5AH - Image 2
Chicago Pneumatic CP8641C Connected PACK 36V 2.5AH - Image 3
Chicago Pneumatic CP8641C Connected PACK 36V 2.5AH - Image 4

Chicago Pneumatic CP8641C Connected PACK 36V 2.5AH

Original price was: $15,641.55.Current price is: $10,401.64.

CP8641C – Extended mobility and high precision with no compromise on safety Thanks to CPLinQ app, add control of your quality process in the field.

SKU: 6151570070 Categories: , , Brand:

Description

CP8641C

CP8641C – Extended mobility and high precision with no compromise on safety Thanks to CPLinQ app, add control of your quality process in the field.

Benefits

  • High precison with +/- 4% at 6 sigma
  • Safe tightening with second start button as standard
  • Extended mobility with compact high cycle rate 36V/2,5Ah battery
  • Automatic release reaction arm
  • Slim and reliable gearbox
  • Intuitive menu on a OLED Digital screen
  • Connected to CPLinQ for tool status management and application library.
    •
    Model CP8641C
    Part number 6151570070
    Maximum Torque (reverse) 3020 ft.lbs 4100 Nm
    Maximum Torque (reverse) 4100 Nm 3020 ft.lbs
    Length 409 mm 16.1″
    Length 16.1″ 409 mm
    Net weight 10.6 kg 23.3 lb
    Net weight 23.3 lb 10.6 kg
    Height 285 mm 11.2″
    Height 11.2″ 285 mm
    Width 101 mm 4″
    Width 4″ 101 mm
    Sound pressure < 72
    Sound Power < 83
    European Sound standard EN 62841-2-2:2015
    Sound uncertainty 3 db(A)
    Vibration ISO EN 62841-2-2:2015
    Vibration < 2.5 m/s²
    Vibration uncertainty (K) 3 m/s²
    European Directives 2006/42/EC, 2011/65/EU, 2014/53/EU
    European Standards EN 62841-2-2:2015 + AC1:2015, EN 61000-6-2:2005,EN61000-6-3:2007+ A1:2011, EN 61326-2-3:2013, EN 301 489-1 V2.2.0, EN 301 489-3 V2.1.1
    Battery voltage 36 V
    Ah 2.5 Ah
    Battery type Li ion
    Weight without battery 10.6 kg 23.3 lb
    Weight without battery 23.3 lb 10.6 kg
    Battery pack weight kg 0.8 kg 1.7 lb
    Battery pack weight lb 1.7 lb 0.8 kg
    IP Rating IP20
    Min. ambient operating temperature 0
    Min. ambient operating temperature 32 °F
    Min. ambient storage temperature 20 °C
    Min. ambient storage temperature -4 °F
    Recommended max. ambient charging temperature 45 °C
    Recommended min. ambient charging temperature 32 °F
    Number of positions 1
    Max. ambient operating temperature 140 °F
    Max. ambient operating temperature 60 °C
    Max. ambient storage temperature 60 °C
    Max. ambient storage temperature 140 °F
    Recommended min. ambient charging temperature 0
    Recommended max. ambient charging temperature 113 °F
    Free speed 3 rpm
    Reaction bar S type
    Square drive 1″
