Description

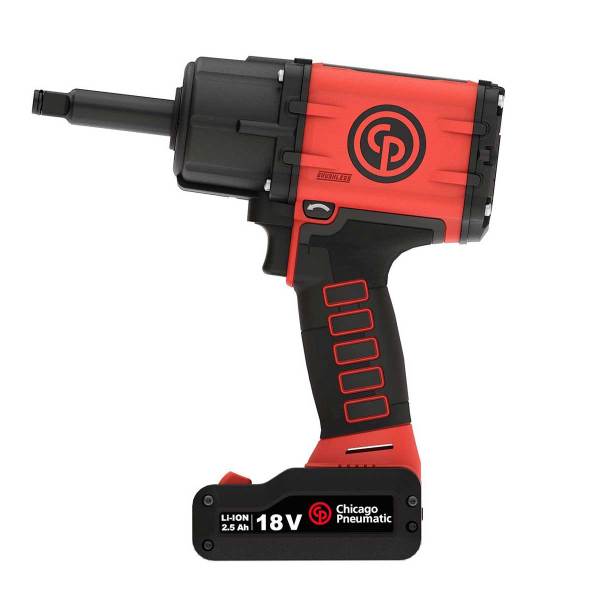

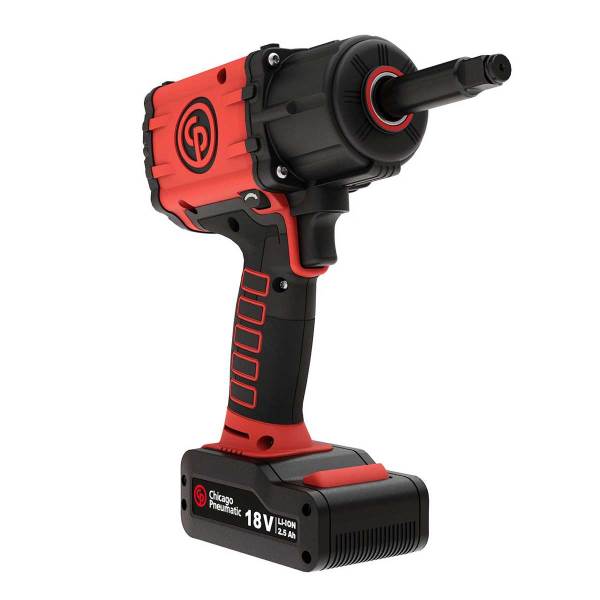

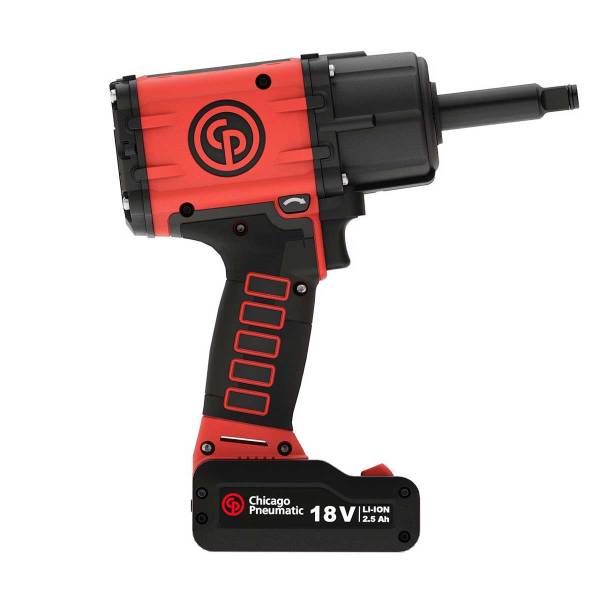

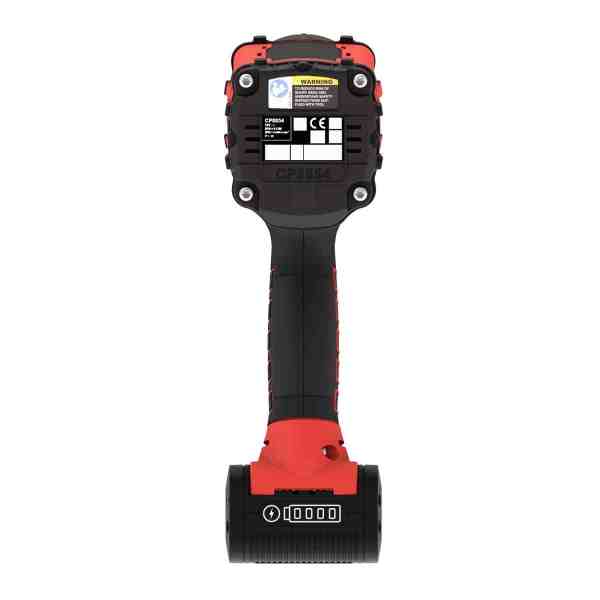

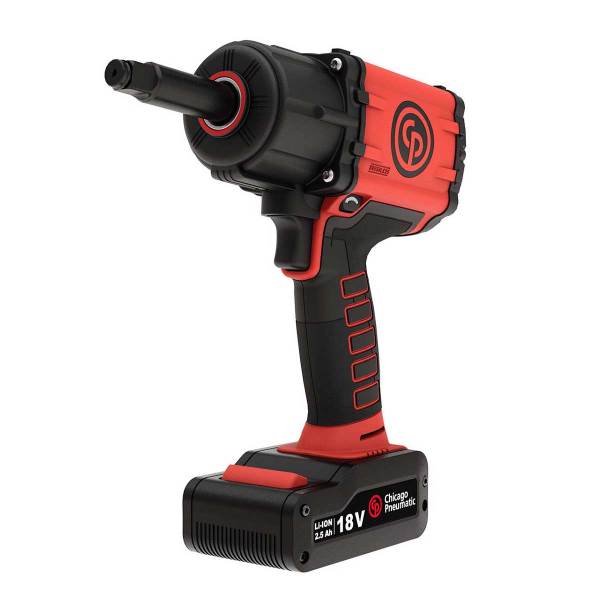

CP8854-2 Pack 2.5Ah

A 2 in 1 unique technology designed to turn performance, lightweight and the compact features of an air impact wrench into a cordless tool. The CP8854 series is designed for light vehicle tire changing applications in workshops and roadside assistance.

Benefits

Similar in length and weight to high performance 1/2″ air Impacts. It offers great maneuverability and helps prevent arm injuries

Lowest vibration on the market ( 12.7 m/s² ) and noise level rate (91 db(A))

High performance 4500 RPM. Able to deliver 780 ft.lbs. – 1050 Nm maximum torque in reverse

One Shut Off Position in Forward means no more overtightening

No more hand tightening for better productivity with the snugging feature (2 stage trigger in Forward)

Content

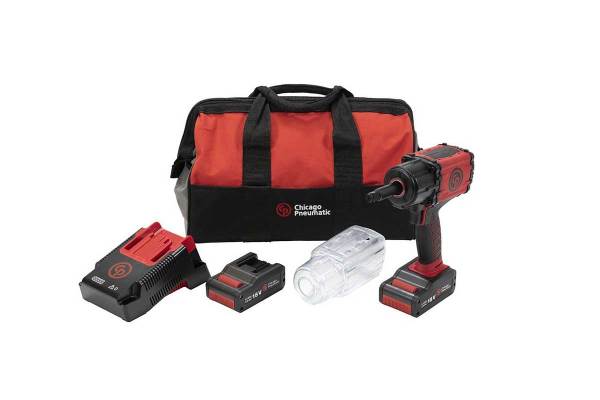

CP8854-2 kits are supplied with:

One tool CP8854-2

2 x 2.5 Ah – 18 V battery packs

One 18V charger

One Chicago Pneumatic soft bag

One protective boot cover

Tool Documentation

Model	CP8854-2 Pack 2.5Ah
Part number	8941088542
Length	239 mm	9,6″
Length	0,23	0.99
Length	9,6	239
Length	0.99 ft	0,23 m
Net weight	2.57 kg	5.6 lb
Net weight	5.6 lb	2.57 kg
Height	221 mm	8.7″
Height	8.7″	221 mm
Width	77 mm	3.0″
Width	3.0″	77 mm
Side to center	38.5 mm	1 1/2″
Side to center	1 1/2″	38.5 mm
Dimension A	76 mm	3.0″
Dimension A	3.0″	76 mm
Dimension B	69 mm	2.7″
Dimension B	2.7″	69 mm
Dimension H	220 mm	8.6″
Dimension H	8.6″	220 mm
Sound pressure	87 db(A)
Sound Power	98 db(A)
European Sound standard	EN60745
Sound uncertainty	3 db(A)
Vibration ISO	ISO-28927-2
Vibration	9,3 m/s²
Vibration uncertainty (K)	3,1 m/s²
Battery voltage	18 V
Ah	2.5 Ah
Battery type	Li ion
Weight without battery	2.17 kg	4.8 lb
Weight without battery	4.8 lb	2.17 kg
Battery pack weight kg	0,485	1.0
Battery pack weight lb	1.0 lb	0,485 kg
Square drive	1/2″
Maximum Torque (reverse)	1050 Nm	780 ft.lbs
Maximum Torque (reverse)	780 ft.lbs	1050 Nm
Blows per minute	1200
Free speed	4500 rpm
European Directives	Machinery (2006/42/EC), RoHs (2011/65/EU), EMC (2014/30/EU)
European Standards	EN 60745-1:2009 + A11:2010, EN 60745-2-2:2010, EN 55014-1:2017, EN 55014-2:2017, EN50581-1:2012, EN 62841-1:2015, EN 62841-2-2:2014
Min. ambient operating temperature	0
Min. ambient operating temperature	32 °F
Min. ambient storage temperature	-18 °C
Min. ambient storage temperature	-0.4 °F
Recommended max. ambient charging temperature	45 °C
Recommended min. ambient charging temperature	32 °F
Number of positions	1
Free speed position 1	1000 rpm
Max. ambient operating temperature	115 °F
Max. ambient operating temperature	45 °C
Max. ambient storage temperature	60 °C
Max. ambient storage temperature	140 °F
Recommended min. ambient charging temperature	0
Recommended max. ambient charging temperature	113 °F

Additional information

Brand	Chicago Pneumatic Tools
Model - Series	CP8854-2K
