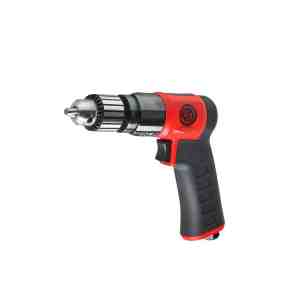

Chicago Pneumatic CP9285C 3/8" DRILL-KEY - Image 3

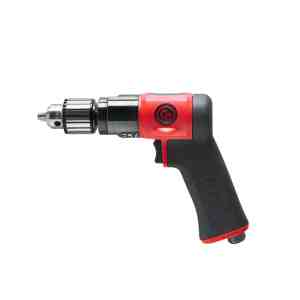

Chicago Pneumatic CP9285C 3/8" DRILL-KEY - Image 4

Chicago Pneumatic CP9285C 3/8″ DRILL-KEY

Original price was: $247.41.Current price is: $189.27.

CP9285C – High Comfort & Lightweight

SKU: 8941092850 Categories: , Brand:

Description

CP9285C

High Comfort & Lightweight

Benefits

  • High Comfort
  • Ergonomics
  • Excellent Speed Control
  • High resistance to stalls
  • Great handling
  • Operator friendly
  • High durability
  • Supplied with high quality industrial Jacobs® chucks for longer use
  • – Keyed Metal

    • Features

  • Composite housing with thermoplastic rubber handle grip
  • Wings on right & left sides to guide the forefinger
  • Large teasing trigger and progressive valve allowing more control to start holes
  • Low speed gear box
  • Flat back part for better pushing action while drilling and tapping
  • Handle exhaust allowing the air to flow away from the operator
  • Supplied with high quality industrial Jacobs® chucks for longer use
  • – Keyed Metal
  • Excellent for drilling, honing, reaming and hole sawing

    •
    Model CP9285C
    Part number 8941092850
    Length 209 mm 8.2″
    Length 8.2″ 209 mm
    Net weight 1.09 kg 2.4 lb
    Net weight 2.4 lb 1.09 kg
    Height 150 mm 5.9″
    Height 5.9″ 150 mm
    Side to center 51 mm 2″
    Side to center 2″ 51 mm
    Average air consumption 6.9 cfm
    Average air consumption 3.25 l/s 6.9 cfm
    Actual air consumption 21 cfm
    Actual air consumption 10 l/s 21 cfm
    Free speed air consumption 27.5 cfm
    Free speed air consumption 13 l/s 27.5 cfm
    Air inlet thread size 1/4 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound pressure 83.7 db(A)
    Sound Power 94.7 db(A)
    European Sound standard ISO 15744
    Vibration ISO ISO-28927-5
    Vibration <2.5 m/s²
    European Directives 2006/42/EC (17/05/2006)
    European Standards EN ISO 11148-3:2012
    Chuck capacity 10 mm 3/8″
    Chuck capacity 3/8″ 10 mm
    Collet / spindle size 3/8-24
    Free speed 3000 rpm
    Power 460 W 0.6 hp
    Power 0.6 hp
    Stall torque 4.1 ft.lbs 5 1/2 Nm
    Stall torque 5.5 Nm 4.1 ft.lbs
