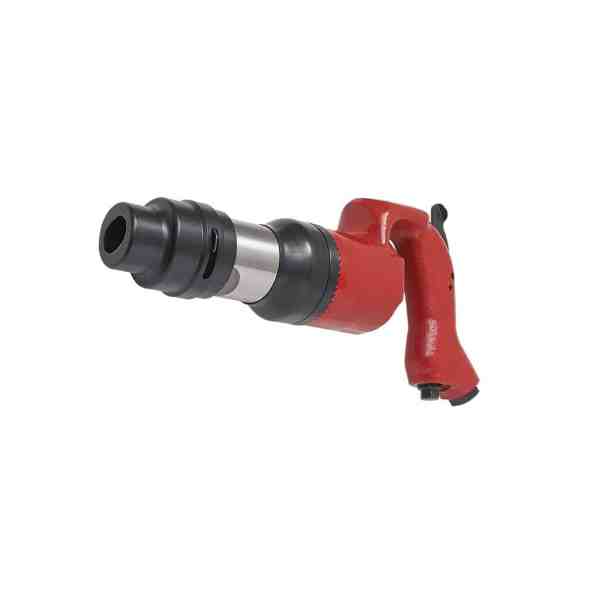

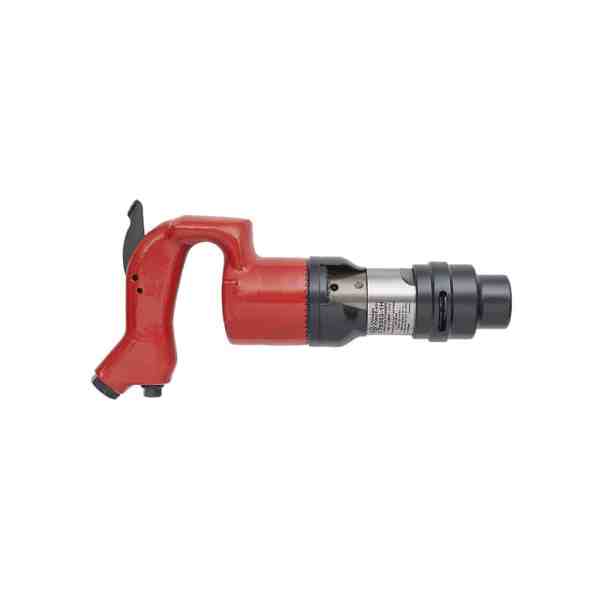

Chicago Pneumatic CP9363-1H CHIPPING HAMMER
Chicago Pneumatic CP9363-1H CHIPPING HAMMER
Chicago Pneumatic CP9363-1H CHIPPING HAMMER - Image 2
Chicago Pneumatic CP9363-1H CHIPPING HAMMER - Image 3

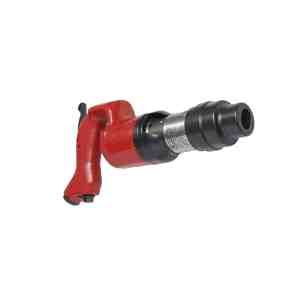

Chicago Pneumatic CP9363-1H CHIPPING HAMMER - Image 4

Chicago Pneumatic CP9363-1H CHIPPING HAMMER

Original price was: $947.85.Current price is: $654.02.

CP9363-1H – Durable and robust

SKU: 6151612040 Categories: , , Brand:

Description

CP9363-1H

Durable and robust

Benefits

  • Durability in demanding applications
  • Secure grip for maximum safety
  • Easy chisel replacement

    • Features

  • Robust and ergonomic gooseneck grip
  • Orientable steel exhaust deflector
  • Easy chisel replacement system
  • Thick steel safety lever
  • Heat treated durable cylinder
  • Not for CE Markets

    •
    Model CP9363-1H
    Part number 6151612040
    Length 355 mm 14″
    Length 14″ 355 mm
    Net weight 6,8  15
    Net weight 15 lb 6,8 kg
    Actual air consumption 28 cfm
    Actual air consumption 13.2 l/s 28 cfm
    Air inlet thread size 3/8 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound Power 113,8
    Vibration ISO ISO-28927-9
    Vibration 12,8 m/s²
    Vibration uncertainty (K) 2,8 m/s²
    Blows per minute 2750
    Bore 1 1/8″ 29 mm
    Bore 29 mm 1 1/8″
    Stroke 1″ 25 mm
    Stroke 25 mm 1″
    Chisel rivet set shank .580″ 14,2 mm
    Chisel rivet set shank 14,2  .580
    Sound DBA pressure 102,8
    Shank Hexagonal
    Butt diameter 14.732 mm 0.58″
    Butt diameter 0.58″ 14.732 mm
