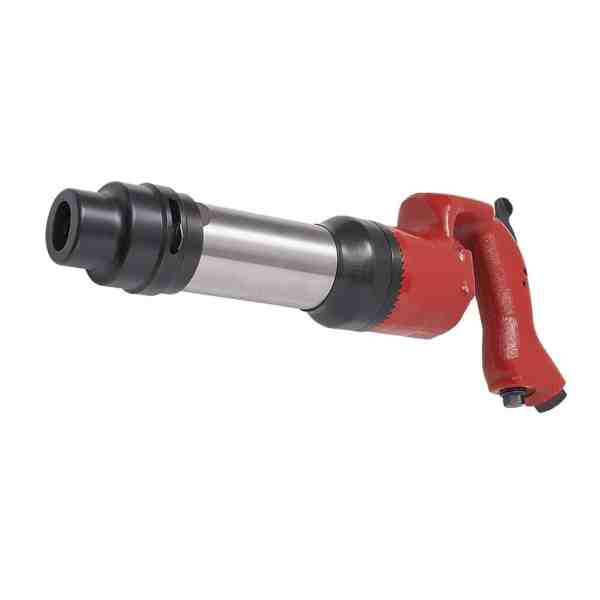

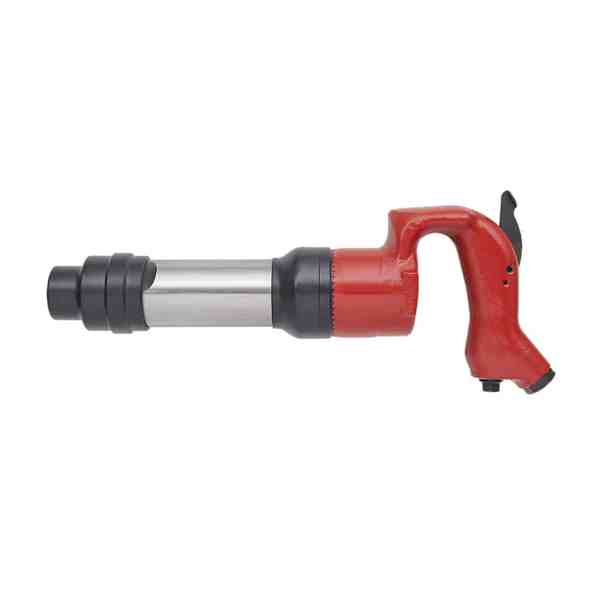

Chicago Pneumatic CP9363-3R CHIPPING HAMMER
Chicago Pneumatic CP9363-3R CHIPPING HAMMER
Chicago Pneumatic CP9363-3R CHIPPING HAMMER - Image 2
Chicago Pneumatic CP9363-3R CHIPPING HAMMER - Image 3
Chicago Pneumatic CP9363-3R CHIPPING HAMMER - Image 4

Chicago Pneumatic CP9363-3R CHIPPING HAMMER

Original price was: $978.81.Current price is: $675.38.

CP9363-3R – Durable and robust

SKU: 6151612070 Categories: , , Brand:

Description

CP9363-3R

Durable and robust

Benefits

  • Durability in demanding applications
  • Secure grip for maximum safety
  • Easy chisel replacement

    • Features

  • Robust and ergonomic gooseneck grip
  • Adjustable steel exhaust deflector
  • Easy chisel replacement design
  • Thick steel safety lever
  • Heat treated durable cylinder
  • Not for CE Markets

    •
    Model CP9363-3R
    Part number 6151612070
    Length 440 mm 17.3″
    Length 17.3″ 440 mm
    Net weight 7,7  16,9
    Net weight 16,9  7,7
    Actual air consumption 32 cfm
    Actual air consumption 15 l/s 32 cfm
    Air inlet thread size 3/8 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound Power 114,7
    Vibration ISO ISO-28927-9
    Vibration 14,4 m/s²
    Vibration uncertainty (K) 3,1 m/s²
    Blows per minute 1750
    Bore 1 1/8″ 29 mm
    Bore 29 mm 1 1/8″
    Stroke 2 1/2″ 64 mm
    Stroke 64 mm 2 1/2″
    Chisel rivet set shank .680″ 17,2 mm
    Chisel rivet set shank 17,2  .680
    Sound DBA pressure 103,7
    Shank Round
    Butt diameter 17.272 mm 0.68″
    Butt diameter 0.68″ 17.272 mm
